Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Trim Cylinders And Hydraulic Hoses

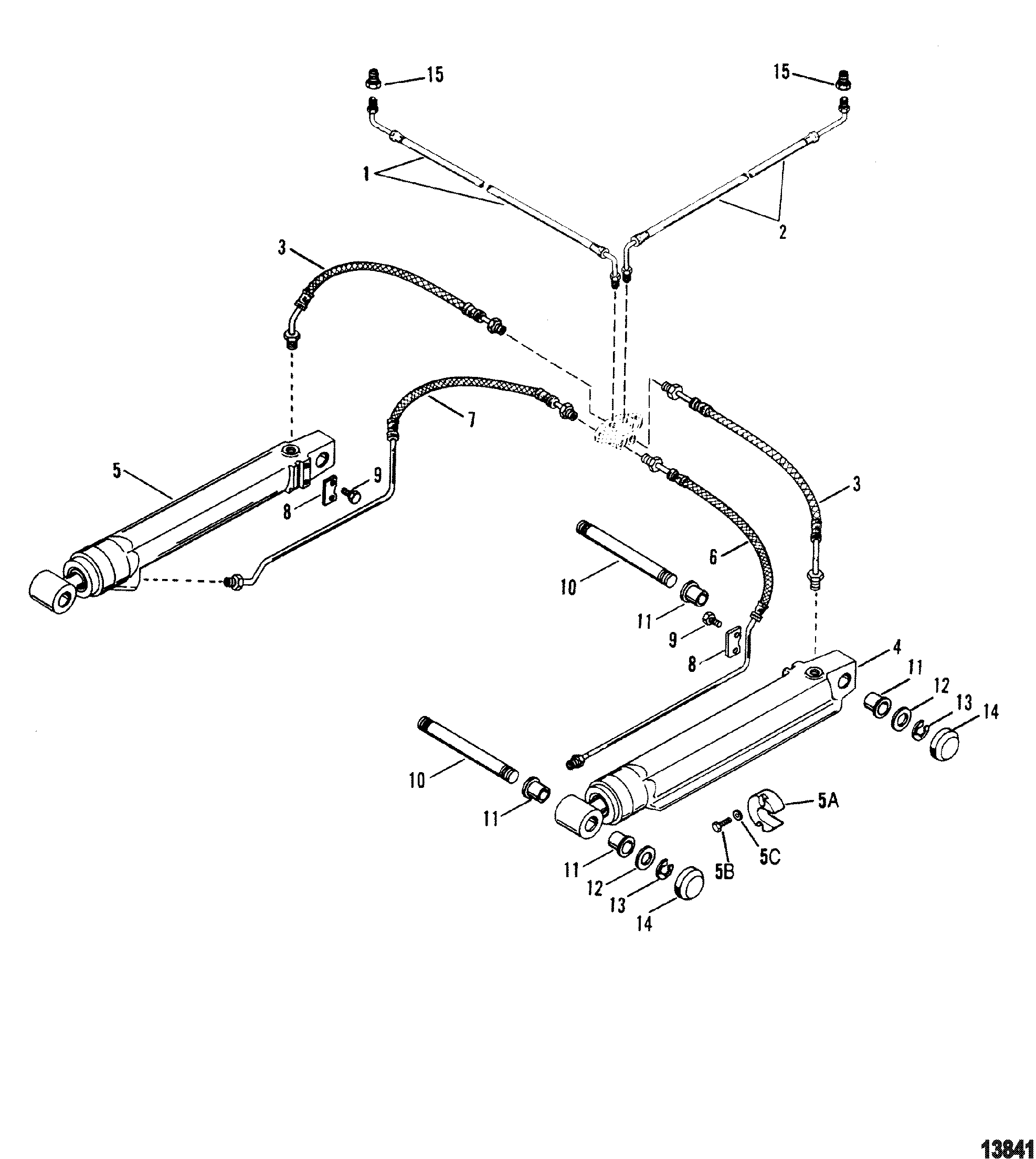

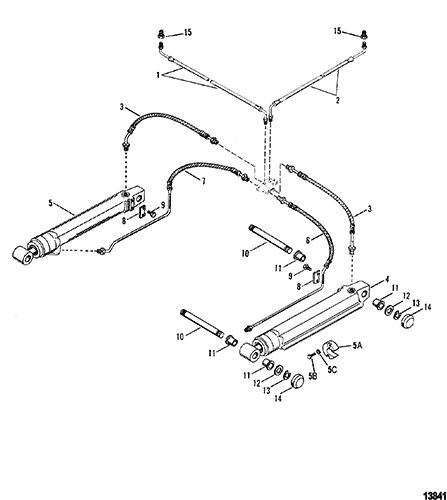

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-861127



HOSE, Black, Connector To Pump (Black) 1 32-95858
2 32-861128



HOSE, Gray, Connector To Pump (Gray) 1 32-95859
3 32-99904Q



HOSE, Trim Cylinder To Connector 2 32-99904
4 815954A7



TRIM CYLINDER ASSEMBLY, Starboard 1

5 815935A7



TRIM CYLINDER ASSEMBLY, Port 1

- 87399A3



OVERHAUL KIT 2

- 25-87400A2



SEAL KIT 2

5A 806189Q1



ANODE ASSEMBLY 2 806189A1
5B 10-806290



SCREW, (#10-32 x .625) 4

5C 13-69432

700-21491 525-13-69432 LOCKWASHER, External (#10) 4

6 32-864960



HOSE, Trim Cylinder, Starboard 1 32-999021
7 32-864959



HOSE, Trim Cylinder, Port 1 32-999031
8 85060



PLATE 2

9 10-85486



SCREW, (.250-20 x .380) Stainless Steel 4

10 17-815953A01



PIN 2 17-815953
11 23-8159501



BUSHING 8 23-815950
12 12-815952

700-21672
WASHER 4

13 53-815949



E RING 4

14 19-815951
676-9-77201 700-26490
CAP 4

15 22-805118



FITTING, (.4375 UNS x .4375 Inverted Flare) 2
(With Out Screen)
15 22-808727



CONNECTOR, (.437 UNF To .250 Inverted Flare) 2
(With Screen)
