250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Port Center Main Oiling System

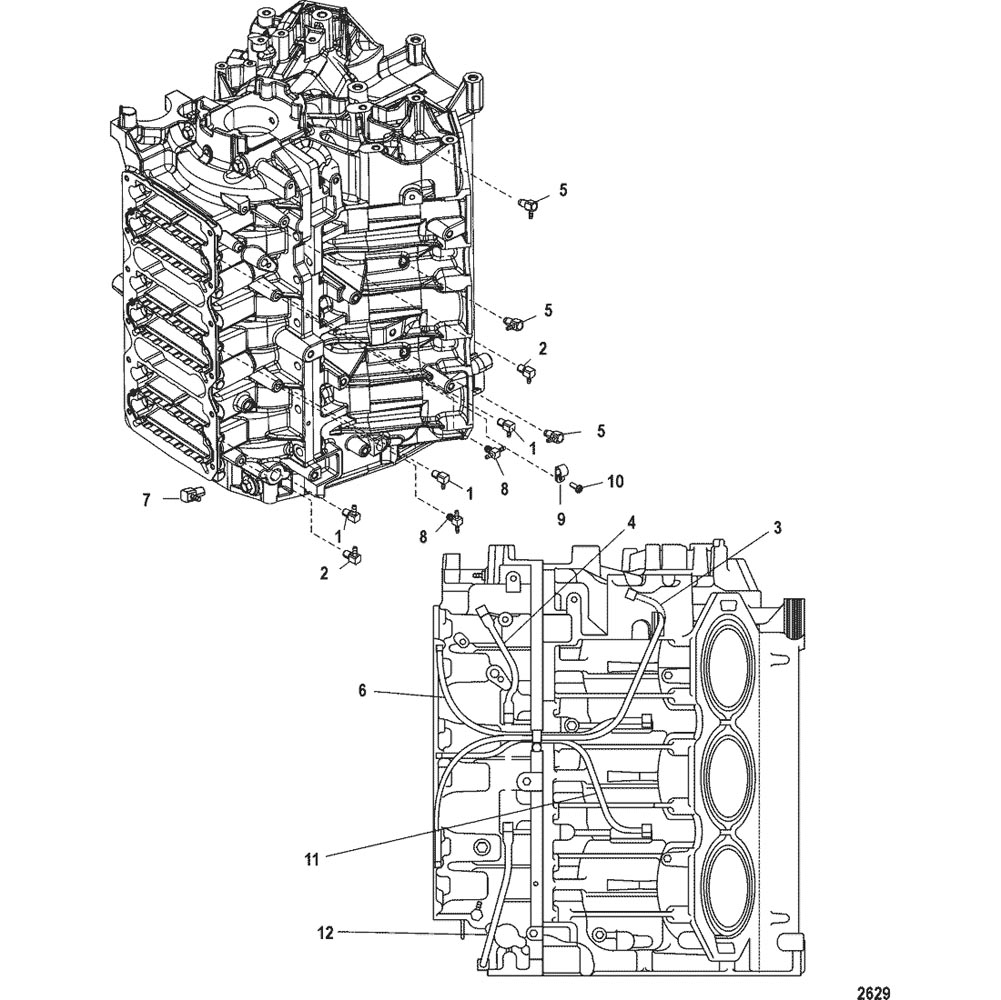

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Cap
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Counter-SportMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Gear Housing, Propeller Shaft-Standard-SportMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oiling System
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate
- Speedometer Pickup
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-887801 | FITTING, Elbow 90 Degree (.0625-27) | 3 | ||||||
| 2 | 22-887801 | FITTING, Elbow 90 Degree (.0625-27) | 2 | ||||||
| 3 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 20.50 Inches) | 1 | 85606065 | |||||
| 4 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 5 Inches) | 1 | 85606065 | |||||
| 5 | 21-8592352 | CHECK VALVE, 90 Degree (.0625-27) | 3 | ||||||
| 6 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 13 Inches) | 1 | 85606065 | |||||
| 7 | 21-8282182 | CHECK VALVE | 1 | ||||||
| 8 | 21-8582362 | CHECK VALVE | 2 | ||||||
| 9 | 54-23567 | CLIP | 1 | ||||||
| 10 | 10-878608 | SCREW, (#10-16 x .500) | 1 | ||||||
| 11 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 11 Inches) | 1 | 85606065 | |||||
| 12 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 9.50 Inches) | 1 | 85606065 | |||||
| - | 61-843034A07 | POWERHEAD ASSEMBLY | 1 |
