Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
- |

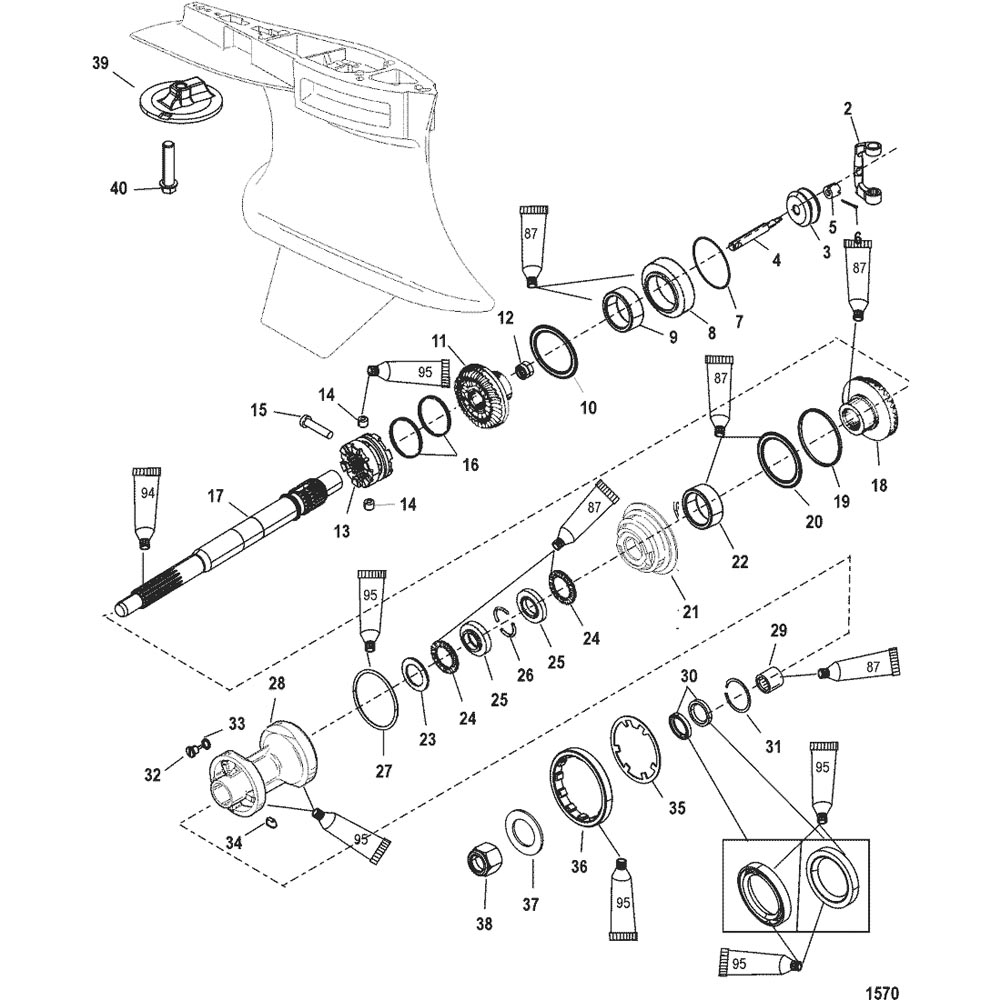

1688-840307T22 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete (1.62:1 Long Counter Rotation) |
1 |
|
|
- |
1688-840307T24 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete (1.62:1 X-Long Counter Rotation) |
1 |
|
|
- |
1688-840307T26 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete (1.75:1 Long Counter Rotation) |
1 |
|
|
- |
1688-840307T28 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete (1.75:1 X-Long Counter Rotation) |
1 |
|
|
1 |
1688-840307T3 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Basic |
1 |
|
|
2 |
823903 |
|
|
|
|
SHIFT CRANK |
1 |
|
|
3 |
19755T7 |
|
|
|
|
SPOOL ASSEMBLY |
1 |
|
|
4 |
NSS |
|
|
|
|
Spool |
1 |
|
Not Sold Separate |
5 |
NSS |
|
|
|
|
Sleeve |
1 |
|
Not Sold Separate |
6 |
NSS |
|
|
|
|
Cotter Pin |
1 |
|
Not Sold Separate |
7 |
15-47397A1 |
|
|
|
|
SHIM SET |
AR |
|
|
8 |
848876A1 |
|
|
|
|
ADAPTOR ASSEMBLY, Bearing |
1 |
|
|
9 |
31-15843T |
|
|
|
|
BEARING, Needle |
1 |
|
|
10 |
31-815480 |
|
|
|
|
BEARING, Thrust |
1 |
|
|
11 |
43-828290A5 |
|
|
|
|
GEAR ASSEMBLY, Reverse |
1 |
|
|
11 |
43-828696T4 |
|
|
|
|
GEAR, Reverse |
1 |
|
|
12 |
31-15844 |
|
|
|
|
BEARING ASSEMBLY, Roller |
1 |
|
|
13 |
52-848878T |
|
|
|
|
CLUTCH |
1 |
|
|
14 |
17-78909 |
|
|
|
|
PIN, Detent |
2 |
|
|
15 |
17-848838 |
|
|
|
|
PIN, Cross |
1 |
|
|
16 |
24-78962 |
|
|
|
|
SPRING |
2 |
|
|
17 |
44-8M0051204 |
|
|
|
|
PROPELLER SHAFT |
1 |
841979 |
|
18 |
43-828289A4 |
|
|
|
|
GEAR ASSEMBLY, Forward |
1 |
|
|
18 |
43-828695A3 |
|
|
|
|
GEAR ASSEMBLY, Forward |
1 |
|
|
19 |
23-1761540 |
|
|
|
|
SPACER, Shim |
AR |
|
|
19 |
23-1761541 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761542 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761543 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761544 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761545 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761546 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761547 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761548 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761549 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761550 |
|
|
|
|
SPACER SHIM |
AR |
|
|
19 |
23-1761551 |
|
|
|
|
SPACER SHIM |
AR |
|
|
20 |
31-815480 |
|
|
|
|
BEARING, Thrust |
1 |
|
|
21 |
848875A1 |
|
|
|
|
ADAPTOR ASSEMBLY, Bearing |
1 |
|
|
22 |
31-15843T |
|
|
|
|
BEARING, Needle |
1 |
|
|
23 |
12-18448 |
|
|
|
|
THRUST WASHER |
1 |
|
|
24 |
31-15842 |
|
|
|
|
BEARING, Thrust |
2 |
|
|
25 |
8182912 |
|
|
|
|
THRUST RACE |
2 |
|
|
26 |
814605 |
|
|
|
|
KEEPER |
2 |
|
|
27 |
25-31534 |
|
|
|
|
O-RING |
1 |
|
|
28 |
848841A1 |
|
|
|
|
CARRIER ASSEMBLY, Bearing |
1 |
848841T1 |
|
29 |
31-817072 |
|
|
|
|
BEARING, Roller |
1 |
|
|
30 |
26-815565 |
|
|
|
|
SEAL, Oil |
2 |
|
|
31 |
53-817071 |
|
|
|
|
RING, Snap |
1 |
|
|
32 |
22-8M0058389 |
|
|
|
|
PLUG KIT, Drain - Magnetic |
1 |
67892A06 |
|
33 |
12-191833 |
|
|
|
|
SEAL |
1 |
|
|
34 |
28-30281 |
|
|
|
|
KEY |
1 |
|
|
35 |
14-79447 |
|
|
|
|
TAB WASHER |
1 |
|
|
36 |
8M2011027 |
|
|
|
|
RETAINER |
1 |
79448 |
|
37 |
12-85344 |
|
|
|
|
WASHER, (.750 Inside Diameter) |
1 |
|
|
38 |
11-52707Q1 |
|
|
|
|
PROP NUT KIT, (.750-16) |
1 |
|
|
39 |
97-76214Q5 |
|
|
|
|
ANODE |
1 |
762145 |
|
40 |
10-66024 |
|
|
|
|
SCREW, (.437-14 x 1.75) |
1 |
|
|
- |
26-816575A6 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
- |
840389K06 |
|
|
|
|
PROP HUB KIT |
1 |
|
|
- |
840382A02 |
|
|
|
|
SNUBBER STRIP KIT |
1 |
|
|
