Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

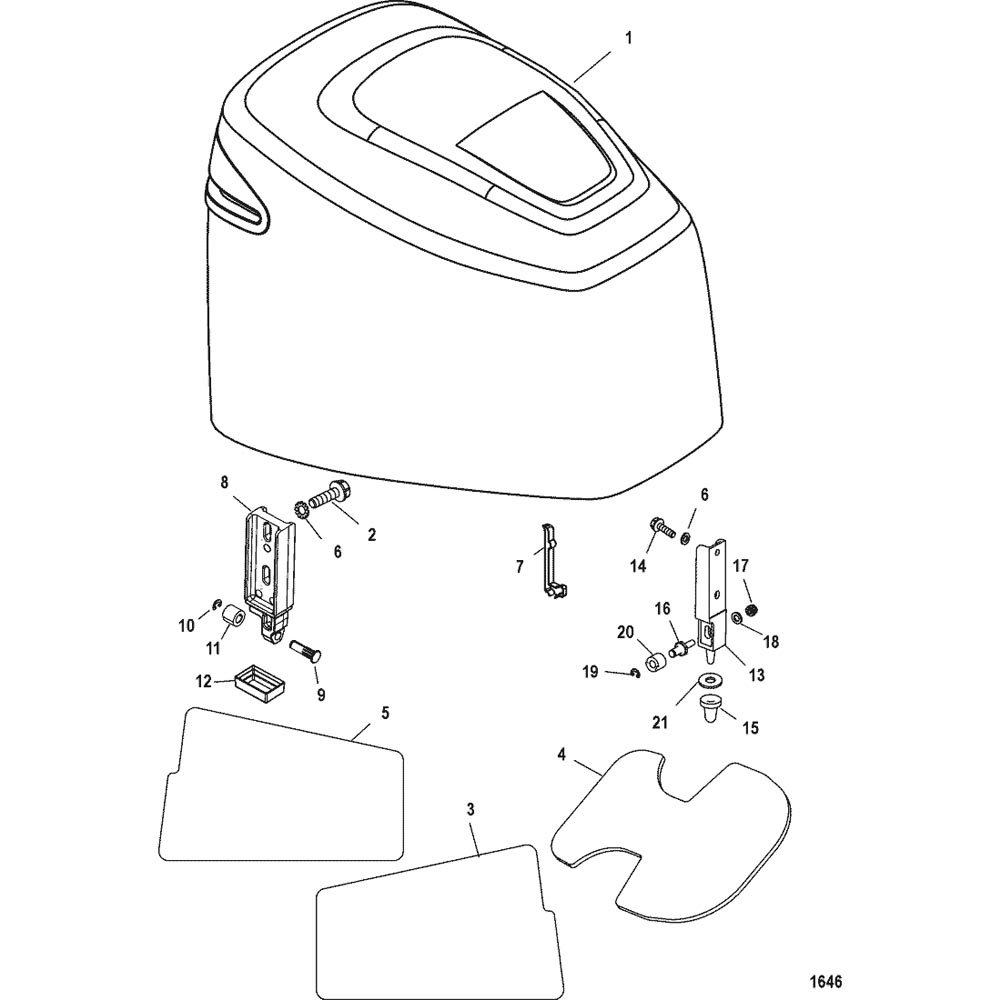

1 |
100-881288T32 |
|
|
|
|
TOP COWL ASSEMBLY |
1 |
|
No Longer Available |
1 |
100-881288T05 |
|
|
|
|
TOP COWL ASSEMBLY, Includes all Decals |
1 |
|
|
1 |
100-881288T06 |
|
|
|
|
TOP COWL ASSEMBLY, Includes all Decals |
1 |
|
|
2 |
10-82130030 |
|
|
|
|
SCREW, (M6 x 30) |
4 |
|
|
3 |
884041A04 |
|
|
|
|
SOUND BLANKET KIT |
1 |
884041A1 |
|
4 |
NSS |
|
|
|
|
Sound Blanket-Top |
1 |
|
Not Sold Separate |
5 |
NSS |
|
|
|
|
Sound Blanket-Port |
1 |
|
Not Sold Separate |
6 |
13-93702 |
|
|
|
|
WASHER, (.250 External Star) |
6 |
|
|
7 |
826639T |
|
|
|
|
COVER |
1 |
|
|
8 |
850682T4 |
|
|
|
|
HOOK ASSEMBLY, Rear Latch |
2 |
|
No Longer Available |
8 |
8M0010389 |
|
|
|
|
BRACKET ASSEMBLY, Cowl |
2 |
|
|
9 |
NSS |
|
|
|
|
Pin |
2 |
|
Not Sold Separate |
10 |
53-8237951 |
|
|
|
|
RING, Retaining |
2 |
|
|
11 |
815263 |
|
|
|
|
ROLLER |
2 |
|
|
12 |
850685T02 |
|
|
|
|
GROMMET |
1 |
850685002 |
|
13 |
8M0036792 |
|
|
|
|
BRACKET, Front |
1 |
821249M2 |
|
14 |
10-82130020 |
|
|
|
|
SCREW, (M6 x 20) |
2 |
|
|
15 |
815477 |
|
|
|
|
BUMPER, Latch |
1 |
|
|
16 |
8155381 |
|
|
|
|
PIN, Roll |
1 |
|
|
17 |
11-401366 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
18 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
1 |
|
|
19 |
53-8237951 |
|
|
|
|
RING, Retaining |
1 |
|
|
20 |
815263 |
|
|
|
|
ROLLER |
1 |
|
|
21 |
12-87161 |
|
|
|
|
WASHER |
1 |
|
|
- |
37-8M0044983 |
|
|
|
|
DECAL SET, (225 Sport XS) |
1 |
8M8000098 |
|
- |
37-8M0044986 |
|
|
|
|
DECAL SET, 225/250 XS |
1 |
|
|
