225 SPORT XS - Serial 1E002584 and Up - Fuel Pump
Other Sub-Sections:
- Accessories
- Air Compressor Components, SN# 1B885131 and below
- Air Compressor Components, SN# 1B885132 and above
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Electrical Plate Components, SN# 1E051473 and below
- Electrical Plate Components, SN# 1E051474 and up
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing, Drive Shaft (Sport Master)
- Gear Housing, Drive Shaft (Torque Master)
- Gear Housing, Propeller Shaft (Sport Master)
- Gear Housing, Propeller Shaft (Torque Master)
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses

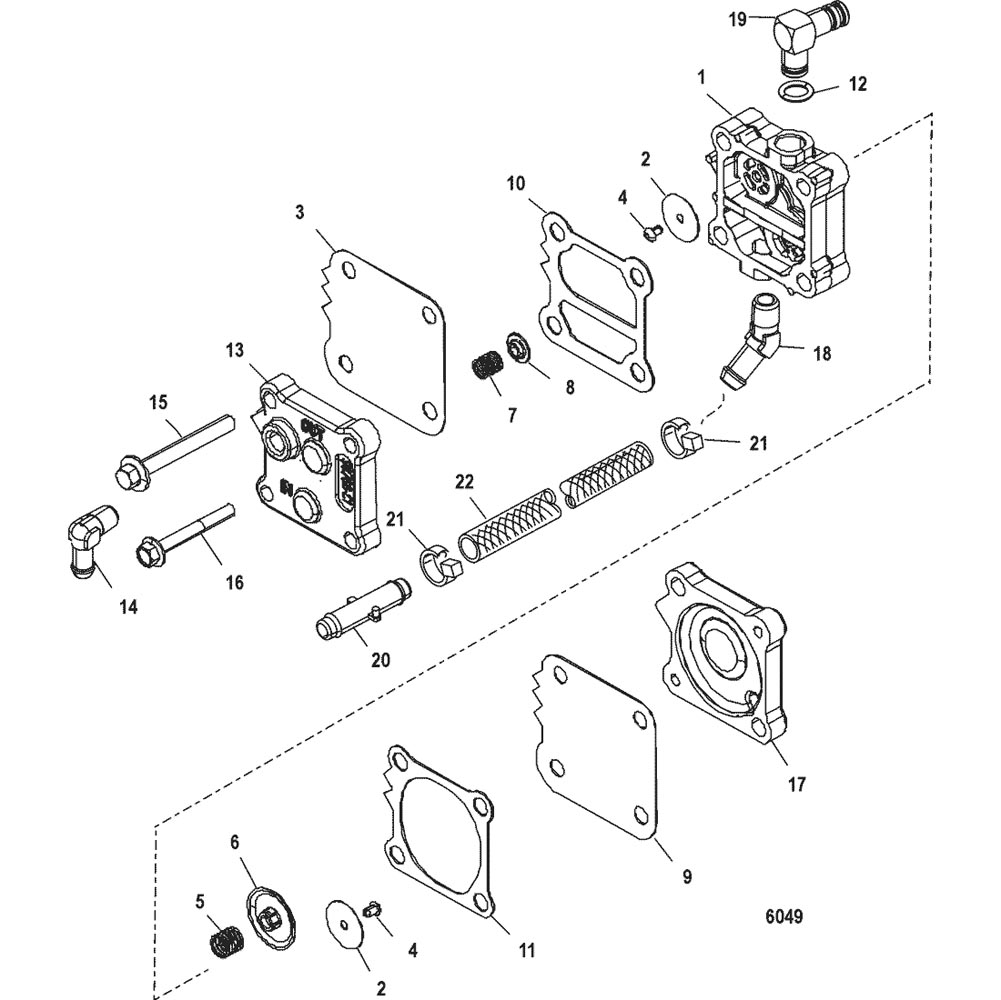

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
- | 14360T74 | PUMP ASSEMBLY, Fuel | 1 | ||||||
1 | NSS | Fuel Pump | 1 | Not Sold Separate | |||||
2 | 21-857005A1 | DIAPHRAGM KIT | 1 | ||||||
3 | NSS | Diaphragm | 1 | Not Sold Separate | |||||
4 | NSS | Retainer | 2 | Not Sold Separate | |||||
5 | NSS | Spring | 1 | Not Sold Separate | |||||
6 | NSS | Cap | 1 | Not Sold Separate | |||||
7 | NSS | Spring | 1 | Not Sold Separate | |||||
8 | NSS | Cap | 1 | Not Sold Separate | |||||
9 | NSS | Diaphragm | 1 | Not Sold Separate | |||||
10 | NSS | Gasket-Boost | 1 | Not Sold Separate | |||||
11 | NSS | Gasket-Pulse | 1 | Not Sold Separate | |||||
12 | 25-805063 | O-RING, (.301 x .070) | 1 | ||||||
13 | 987752 | PLATE | 1 | ||||||
14 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
15 | 10-82104540 | SCREW, (M5 x 40), Fuel Pump | 2 | ||||||
16 | 10-82130050 | SCREW, (M6 x 50), Pump to Crankcase | 2 | ||||||
17 | 144303 | BASE | 1 | ||||||
18 | 22-782792 | FITTING, Elbow 45 Degree (1.25) | 1 | ||||||
19 | 22-888493 | ELBOW | 1 | ||||||
20 | 22-822769 | CONNECTOR | 1 | ||||||
21 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
22 | 32-8M0043979 | HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) | 1 | 856822A2 | |||||
- | 27-841220A03 | GASKET SET, Powerhead | 1 | 832933A05 |
