150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Gear Housing (Driveshaft)(1.78:1)

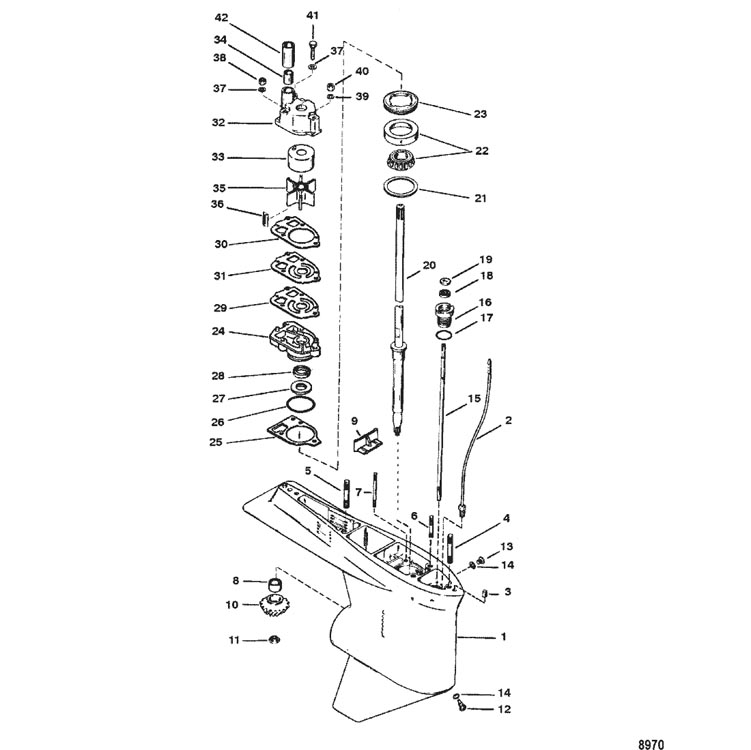

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1674-814247T3         GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Black 1 814247A3 No Longer Available
- 1674-814247T3



GEAR HOUSING ASSEMBLY, 1.78:1 Gear Ratio - Gray 1  814247A4 No Longer Available
1 1674-814247T1



GEAR HOUSING ASSEMBLY, Basic - Black 1 814247A1 No Longer Available
1 1674-814247T1



GEAR HOUSING ASSEMBLY, Basic - Gray 1  814247A2 No Longer Available
2 22-85822A10



CONNECTOR ASSEMBLY 1
3 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2
4 16-786382



STUD, (.438 x 3.12) (3-1/8 IN.) 1 78638
5 16-579203



STUD, (.437-14/.437-20 x 2.060) 2 579201
6 16-8M0034463



STUD, (.312 x 3.38) 1 56297
7 16-30667



STUD, (.250-20/.250-28 x 3.125) 2
8 31-35934A1



BEARING ASSEMBLY, Roller 1
9 8M0039169



FILLER BLOCK 1 67891
10 NSS



Pinion Gear (Part of 43-16279A2) 1   Not Sold Separate
11 11-35921



NUT, (.625-18) 1
12 22-8M0058389



FITTING KIT, Magnetic, Plug Fill/Drain 1 67892A1
13 10-79953Q04



SCREW KIT, (.375-16 x .250) 1 79953A2
14 12-191833



WASHER, Fiber 2 19183
15 8152641



SHIFT SHAFT 1
16 23-77631A2



BUSHING ASSEMBLY 1
17 25-25439



O-RING, (.862 x .103) 1
18 26-8164641



SEAL, Oil 1
19 12-77674



WASHER 1
20 45-815168



DRIVESHAFT 1
21 15-8M0063267



SHIM SET AR   No Longer Available
22 31-36387A1



BEARING ASSEMBLY, Roller/Cup 1
23 8245191



RETAINER 1 824519
24 46-8M0077147



BASE ASSEMBLY, Water Pump 1 42579A3
25 27-426311



GASKET 1
26 25-896523



O-RING, (2.175 x .175) 1 90011
27 26-89238



SEAL, Oil 1
28 26-16977



SEAL, Oil 1
29 27-8M0090319



GASKET 1 856081
30 27-858524



GASKET 1 856091
31 324351



FACE PLATE 1 32435
32 46-96148T1



BODY ASSEMBLY, Water Pump 1 96148A1
33 48752T



INSERT 1 48752
34 26-38970



SEAL 1
35 47-89984T3



IMPELLER 1 899841
36 28-8M0032834



KEY 1 56654
37 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 2
38 11-8267119



NUT, (.250-28) 2 13438
39 12-36001



WASHER 1
40 11-13436



NUT 1
41 10-96411



SCREW, (#14-8 x 2.25) 1
42 23-29804T



SLEEVE 1 29804
- 46-96148A8



REPAIR KIT, Water Pump 1 96148A5
- 26-89238A2



SEAL KIT 1
