1100 QC4V - Serial 0M965965 and Up - Fuel Rail Assembly

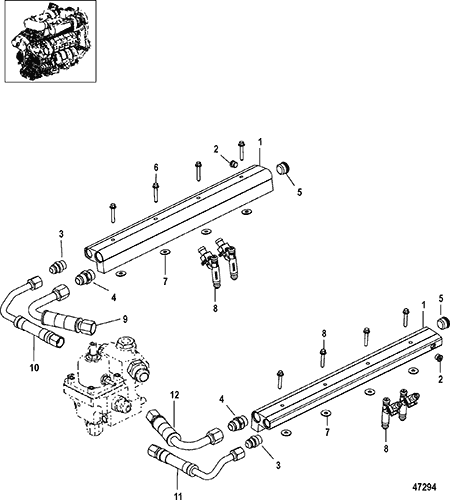

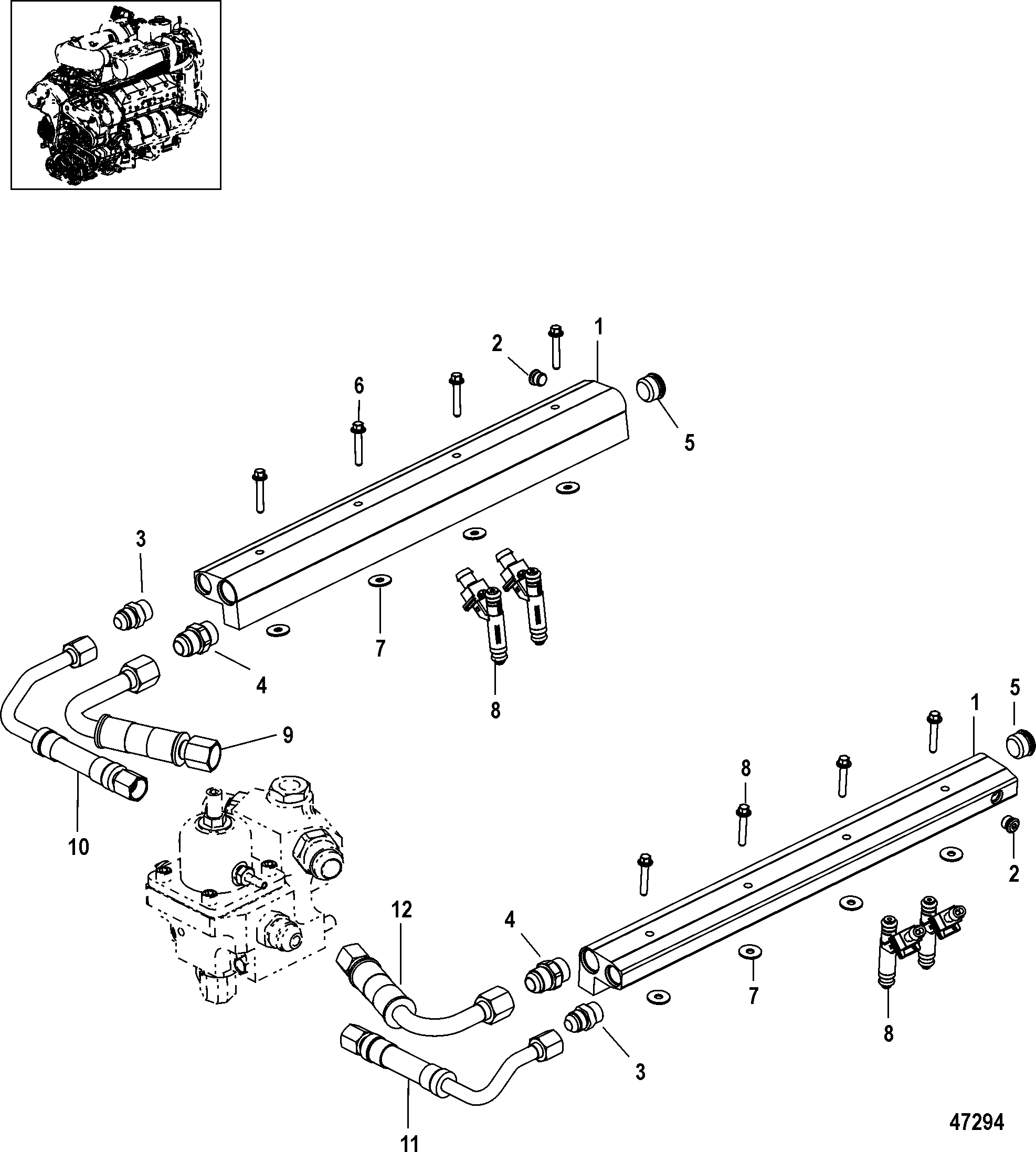

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 8M0058707 | FUEL RAIL ASSEMBLY | 1 | Port | |||||
| - | 8M0058708 | FUEL RAIL ASSEMBLY | 1 | Starboard | |||||
| 1 | NSS | NOT SOLD SEPARATE, FUEL RAIL | 1 | This Part is not sold separately | |||||
| 2 | 19-8M0047994 | PLUG, (12 mm) | 2 | 19-889767 | |||||
| 3 | 22-841818 | FITTING ASSEMBLY, Aluminum - With O-Ring | 1 | ||||||
| 4 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 1 | ||||||
| 5 | 19-898486 | PLUG | 1 | ||||||
| 6 | 10-82130040 | SCREW, (M6 x 40) | 8 | ||||||
| 7 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 8 | ||||||
| 8 | 8M0026522 | FUEL INJECTOR | 16 | ||||||
| 9 | 32-8M0058572 | LINE ASSEMEBLY, Feed | 1 | Starboard | |||||
| 10 | 32-8M0058571 | LINE ASSEMEBLY, Regulator | 1 | Starboard | |||||
| 11 | 32-8M0058574 | LINE ASSEMEBLY, Regulator | 1 | Port | |||||
| 12 | 32-8M0058573 | LINE ASSEMEBLY, Feed | 1 | Port |
