Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

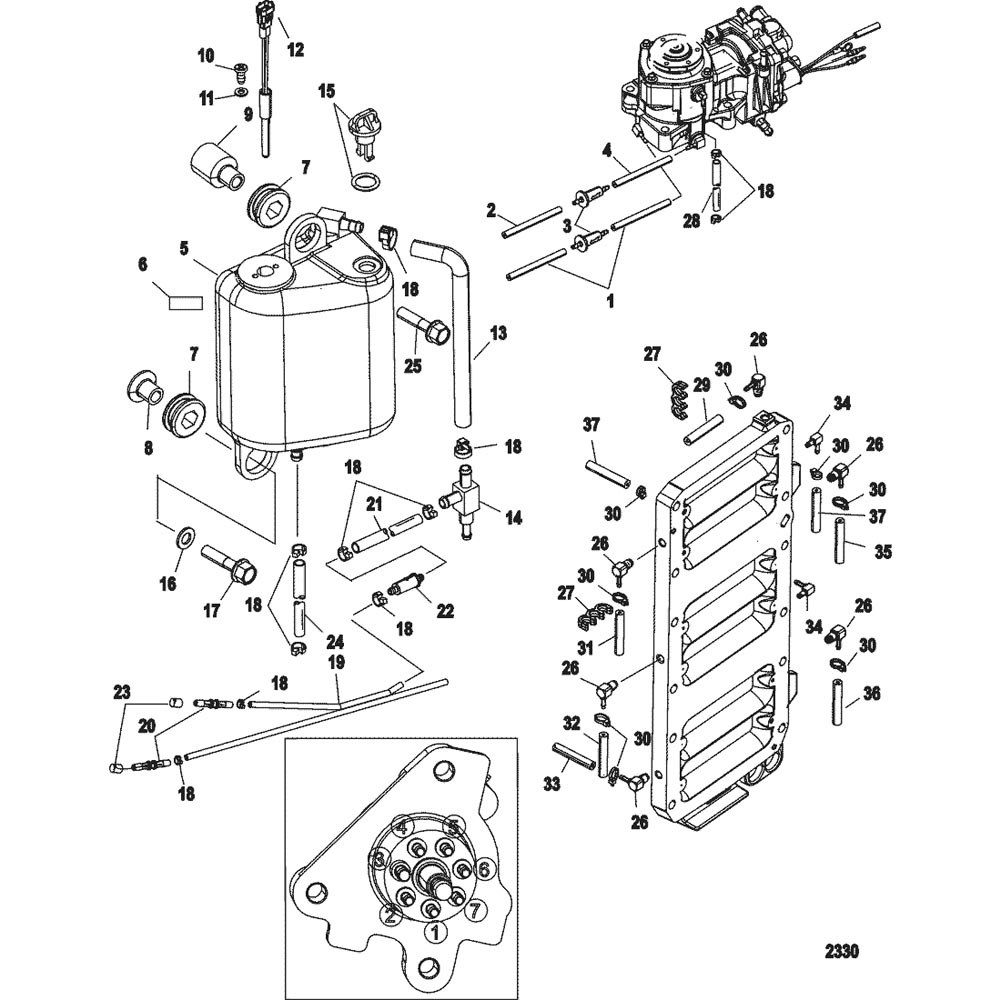

1 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 11.50 Inches) |
2 |
85606065 |
|
2 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 5 Inches) |
1 |
85606065 |
|
3 |
35-8M0042285 |
|
|
|
|
FILTER, Fuel |
2 |
18206001 |
|
4 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 9 Inches) |
1 |
85606065 |
|
5 |
1200-8M0064075 |
|
|
|
|
TANK, Oil |
1 |
884525T1 |
|
6 |
NSS |
|
|
|
|
Decal-Reservoir |
1 |
|
Not Sold Separate |
7 |
25-855362001 |
|
|
|
|
GROMMET |
3 |
|
|
8 |
23-855364 |
|
|
|
|
BUSHING |
2 |
|
|
9 |
23-883050 |
|
|
|
|
SPACER |
1 |
|
|
10 |
10-58376 |
|
|
|
|
SCREW, (.164-18 x .375) |
1 |
|
|
11 |
12-72761 |
|
|
|
|
WASHER, (.203 x .562 x .060) Stainless Steel |
1 |
|
|
12 |
87-856156T04 |
|
|
|
|
SWITCH |
1 |
856156A4 |
|
13 |
32-885553 |
|
|
|
|
HOSE |
1 |
|
|
14 |
22-424254 |
|
|
|
|
FITTING |
1 |
|
|
15 |
19-887609 |
|
|
|
|
PLUG |
1 |
|
|
16 |
12-4002318 |
|
|
|
|
WASHER |
3 |
|
|
17 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
2 |
|
|
18 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
19 |
32-8752891 |
|
|
|
|
HOSE |
1 |
|
|
20 |
22-858955 |
|
|
|
|
CONNECTOR |
2 |
|
|
21 |
32-875283 |
|
|
|
|
HOSE, (2.00 Inches) |
1 |
|
|
22 |
35-875284T01 |
|
|
|
|
FILTER, Oil - In Line |
1 |
875284001 |
|
23 |
NSS |
|
|
|
|
Plug |
2 |
|
Not Sold Separate |
24 |
32-892830053 |
|
|
|
|
HOSE, (24.00 Inches Braided) (Cut to 22 Inches) |
1 |
|
|
25 |
10-81893460 |
|
|
|
|
SCREW, (M8 x 60) |
1 |
|
|
26 |
21-858870 |
|
|
|
|
CHECK VALVE |
6 |
|
|
27 |
859230T |
|
|
|
|
RETAINER |
2 |
|
|
28 |
32-8M0054213 |
|
|
|
|
HOSE, (40.00 Inches Bulk) (Cut to 34 Inches) |
1 |
85583466 |
|
29 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 19.50 Inches) |
1 |
85606065 |
|
30 |
56762 |
|
|
|
|
TIE STRAP, (4.00 Inches) |
AR |
|
|
31 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 11 Inches) |
1 |
85606065 |
|
32 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 6 Inches) |
1 |
85606065 |
|
33 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 4 Inches) |
1 |
85606065 |
|
34 |
22-883988 |
|
|
|
|
ELBOW |
2 |
|
|
35 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 22 Inches) |
1 |
85606065 |
|
36 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 16.50 Inches) |
1 |
85606065 |
|
37 |
32-8M0054152 |
|
|
|
|
TUBING, (38.00 Inches Bulk) (Cut to 7 Inches) |
2 |
85606065 |
|
