200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Fuel management System(0G366999 and Below)

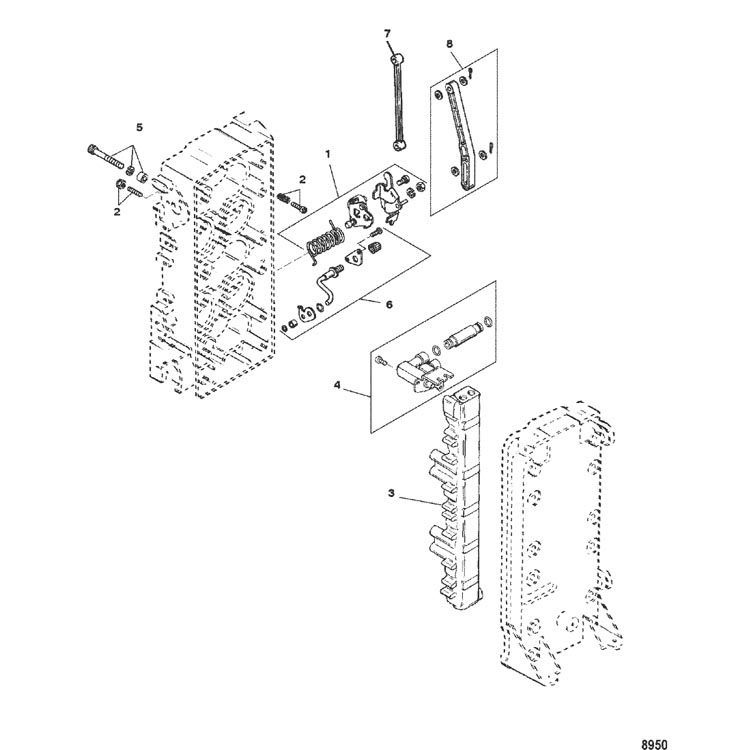

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System(0G366999 and Below)
- Fuel Management System(0G366999 and Below)
- Fuel Management System(0G367000 and Up)
- Fuel Management System(0G367000 and Up)
- Fuel Pump(Aluminum Body)
- Fuel Pump(Plastic Body With Loose Fittings)
- Fuel Pump(Plastic Body With Molded Fittings)
- Gear Housing(Drive) Standard/Counter Rotation-SportMaster
- Gear Housing(Drive)Torque Master 1.87:1/2:1
- Gear Housing(Driveshaft)(1.78:1)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate(0G205106 and Below)
- Trim Solenoid Plate(0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827697 | LEVER KIT, Link | 1 | No Longer Available | |||||
| 2 | 10-827698 | SCREW KIT | 1 | ||||||
| 3 | 827699 | FUEL RAIL | 1 | No Longer Available | |||||
| 3 | 827699T2 | FUEL RAIL | 1 | 8276992 | No Longer Available | ||||
| 4 | 809057T | JOINT KIT, Fuel Pipe | 1 | 809057 | No Longer Available | ||||
| 5 | 10-8276981 | SCREW KIT | 1 | No Longer Available | |||||
| 6 | 809059 | SCHRADER VALVE KIT | 1 | No Longer Available | |||||
| 7 | 15444 | LINK (DESIGN I) | 1 | No Longer Available | |||||
| 8 | 8276891 | LINK KIT (DESIGN II) | 1 | No Longer Available |
