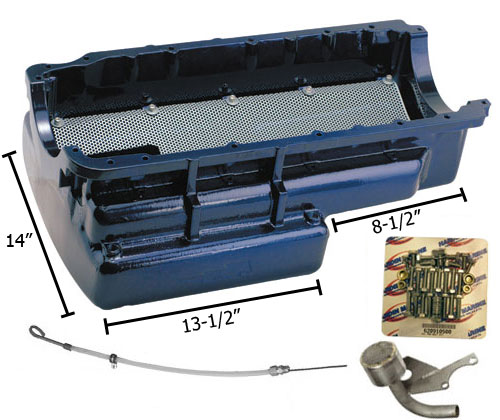

Wet Sump Hi-Capacity 10 Qt. Pro-Series Aluminum Oil Pan - Big Block Chevy Mark IV Oil Pan Kit

(Includes oil pan, windage tray, oil pick-up & bolt kit)

For over two decades Hardin Marine manufactured the finest quality marine oil pans available anywhere.  When you hang your name on a product for its reliability and quality it had better deliver.  And deliver is what these pans do.  Lets start with the sealing advantage of a cast aluminum pan.  The CNC machined pan rails provide not only the advantage of a perfectly flat sealing surface but also the strength of a pan rail that provides equally distributed gasket load across the entire surface, something even the best steel oil pans can only hope to achieve.  Each oil pan features an 8-1/2" depth sump and will accommodate a 4-1/2" stroke without modifications.  Additional stroke length can be accommodated with minor clearance changes.  Due to the cast aluminum construction, rust and cracked welds found in other style pans are non-existent with this pan.  But performance is the real reason professional engine builders everywhere choose the Hardin Marine aluminum pans.  The irradiated full length windage tray provides maximum rotational crankshaft windage control producing more horsepower than all other comparable designs.  The aluminum construction of this pan also acts like a heat sink absorbing heat from the engines oiling system.
