| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

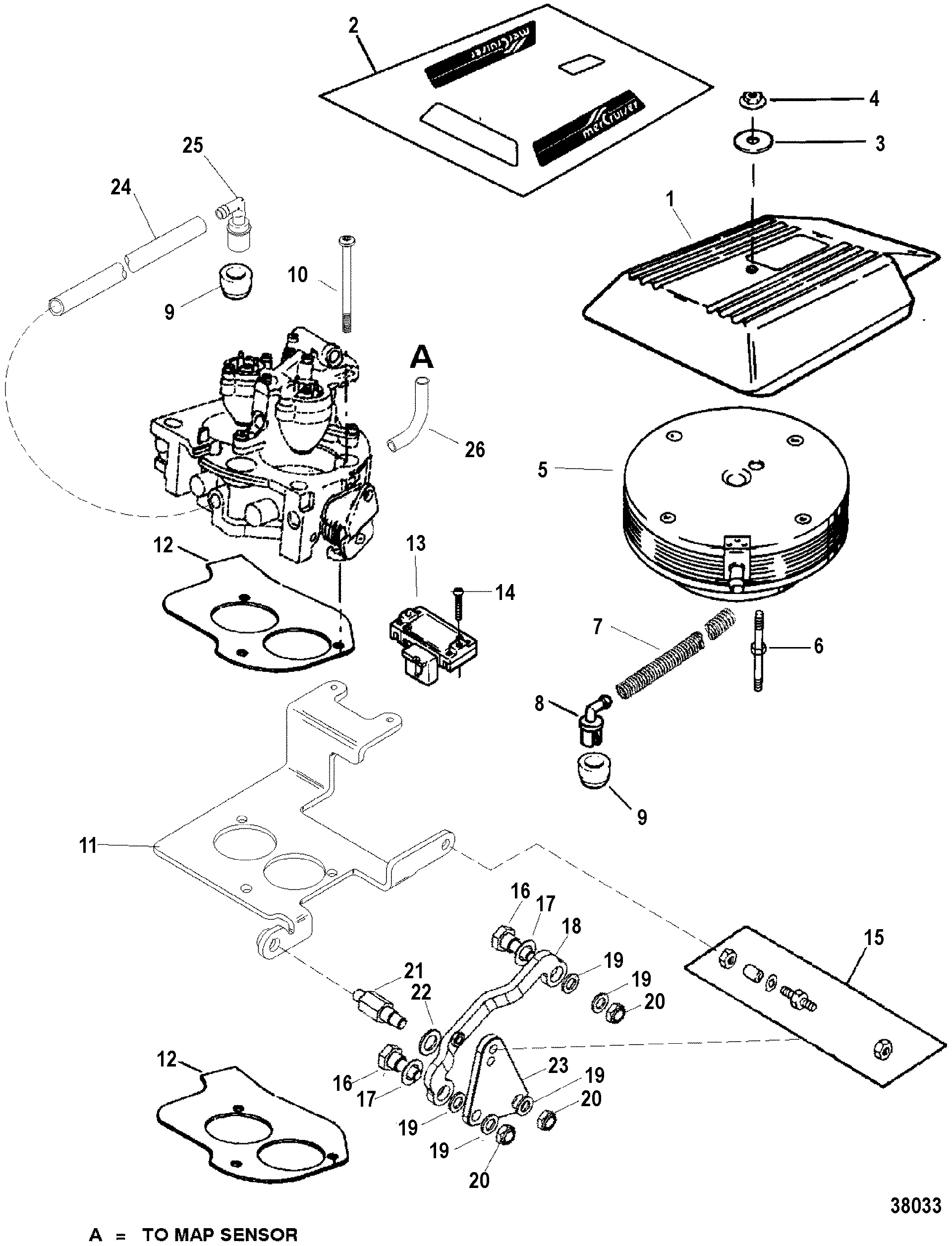

| 1 |
18484A3 |
|
|
|
|
COVER |
1 |
|
|
| 2 |
37-812776A40 |
|
|
|
|
DECAL SET, Flame Arrestor Cover |
1 |
|
This Part is No Longer Available |
| 3 |
12-86400 |
|
|
|
|
WASHER |
1 |
|
|
| 4 |
11-826709109 |
|
|
|
|
NUT, (.250-28) |
1 |
11-35045 |
|
| 5 |
807899T |
|
|
|
|
FLAME ARRESTOR |
1 |
|
This Part is No Longer Available |
| 6 |
16-807940 |
|
|
|
|
STUD |
1 |
|
This Part is No Longer Available |
| 7 |
32-1589424 |
|
|
|
|
HOSE, Breather |
1 |
32-1589418 |
|
| 8 |
97850T |
|
|
|
|
ELBOW, 90 Degree |
1 |
97850 |
|
| 9 |
25-811553 |
|
|
|
|
GROMMET |
2 |
|
|
| 10 |
10-805390 |
|
|
|
|
SCREW, (.312-18 x 2.250) |
3 |
|
|
| 11 |
807898A1 |
|
|
|
|
PLATE ASSEMBLY, TBI Adaptor |
1 |
|
This Part is No Longer Available |
| 12 |
27-806640 |
|
|
|
|
GASKET |
2 |
|
3 |
| 13 |
864856A1 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
805217A1 |
|
| 14 |
10-807120 |
|
|
|
|
SCREW, (#10-24 x 1.00) |
2 |
|
|
| 15 |
16-97477A3 |
|
|
|
|
STUD KIT |
2 |
|
|
| 16 |
10-806946 |
|
|
|
|
BOLT |
2 |
|
|
| 17 |
12-861854 |
|
|
|
|
WASHER |
2 |
12-91964 |
|
| 18 |
807097T |
|
|
|
|
CONNECTOR |
1 |
|
|
| 19 |
12-20084 |
|
|
|
|
WASHER, (.328 x .562 x .062) |
5 |
|
|
| 20 |
11-826709111 |
|
|
|
|
NUT, (.312-24) |
3 |
11-45592 |
|
| 21 |
806915 |
|
|
|
|
SHAFT |
1 |
|
|
| 22 |
12-79552 |
|
|
|
|
WASHER, (.453 x .750 x .062) Stainless Steel |
1 |
|
|
| 23 |
806916T |
|
|
|
|
PLATE |
1 |
|
|
| 24 |
32-8M0062321 |
|
|
|
|
HOSE, PVC (22.50 Inch Bulk) |
1 |
32-80617450 |
|
| 25 |
8M2017060 |
|
|
|
|
PCV VALVE |
1 |
806947T |
|
| 26 |
32-8M0062600 |
|
|
|
|
HOSE, (.2187 x .440) |
1 |
32-80804762 |
|
| - |
27-806640A96 |
|
|
|
|
GASKET SET |
1 |
|
This Part is No Longer Available |
