7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Senders And Harness Bracket

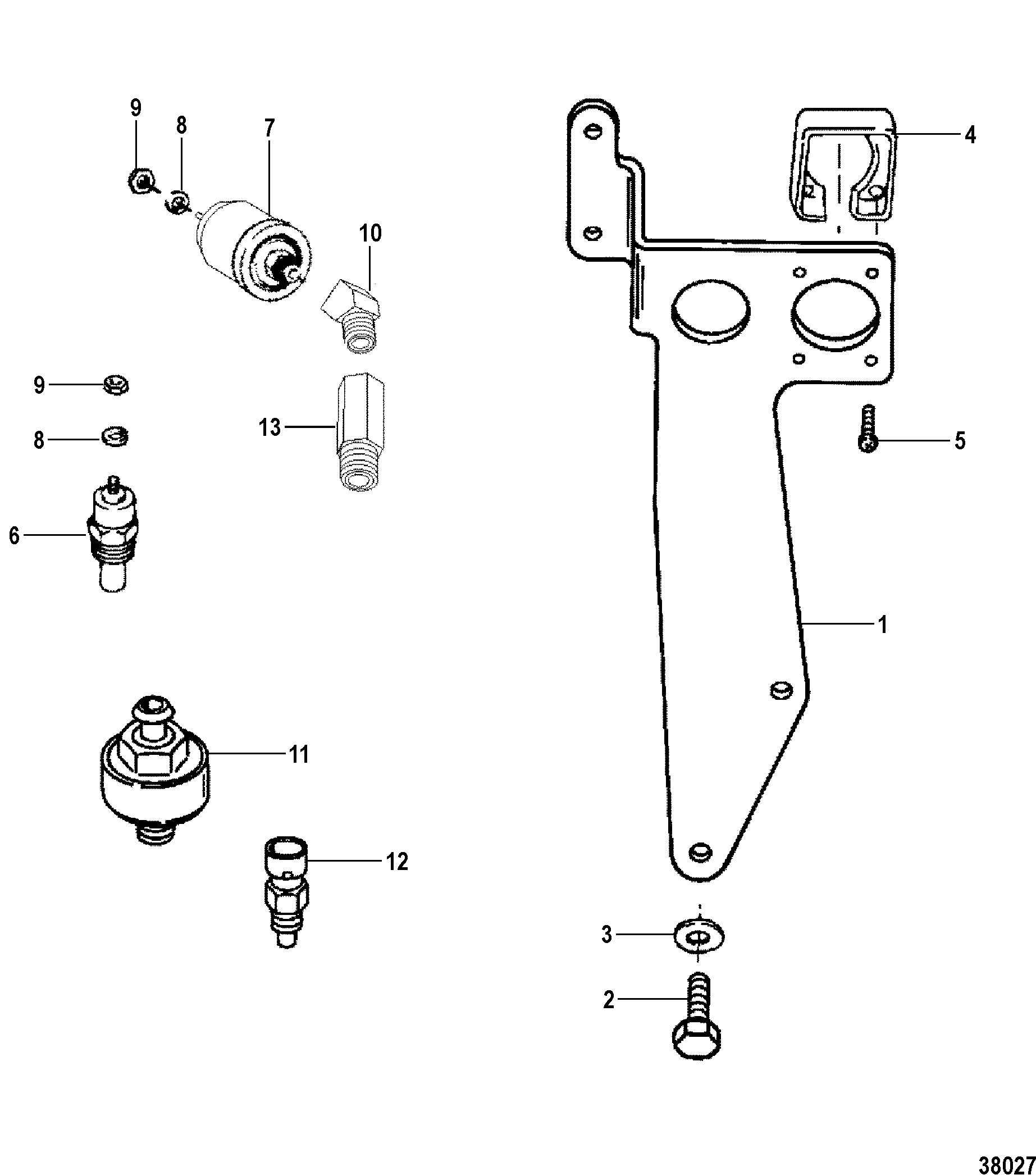

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805441T1 | BRACKET/LIFTING EYE (REAR) | 1 | ||||||
| 2 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | ||||||
| 3 | 12-22248 | WASHER, (.453 x .875 x .060) | 2 | ||||||
| 4 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 5 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 6 | 806490T | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | |||||
| 6 | 49734 | SENDER ASSEMBLY, Water Temperature | OPT. | 49734A1 | (DUAL STATION) 4 | ||||
| 7 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
| 7 | 37293T | SENDER ASSEMBLY, Oil Pressure | OPT. | 37293 | (DUAL STATION) 4 | ||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 9 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 10 | 22-29085 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 11 | 805544T | SENSOR ASSEMBLY | 1 | ||||||
| 12 | 805218T | 676-9-42402 | SENSOR | 1 | |||||
| 13 | 22-805059 | FITTING | 1 |
