7.4LX TBI Bravo (Gen 6) GM 454 V-8 1996-1997 - Serial 0F820000 Thru 0K999999 - Cylinder Head And Rocker Cover

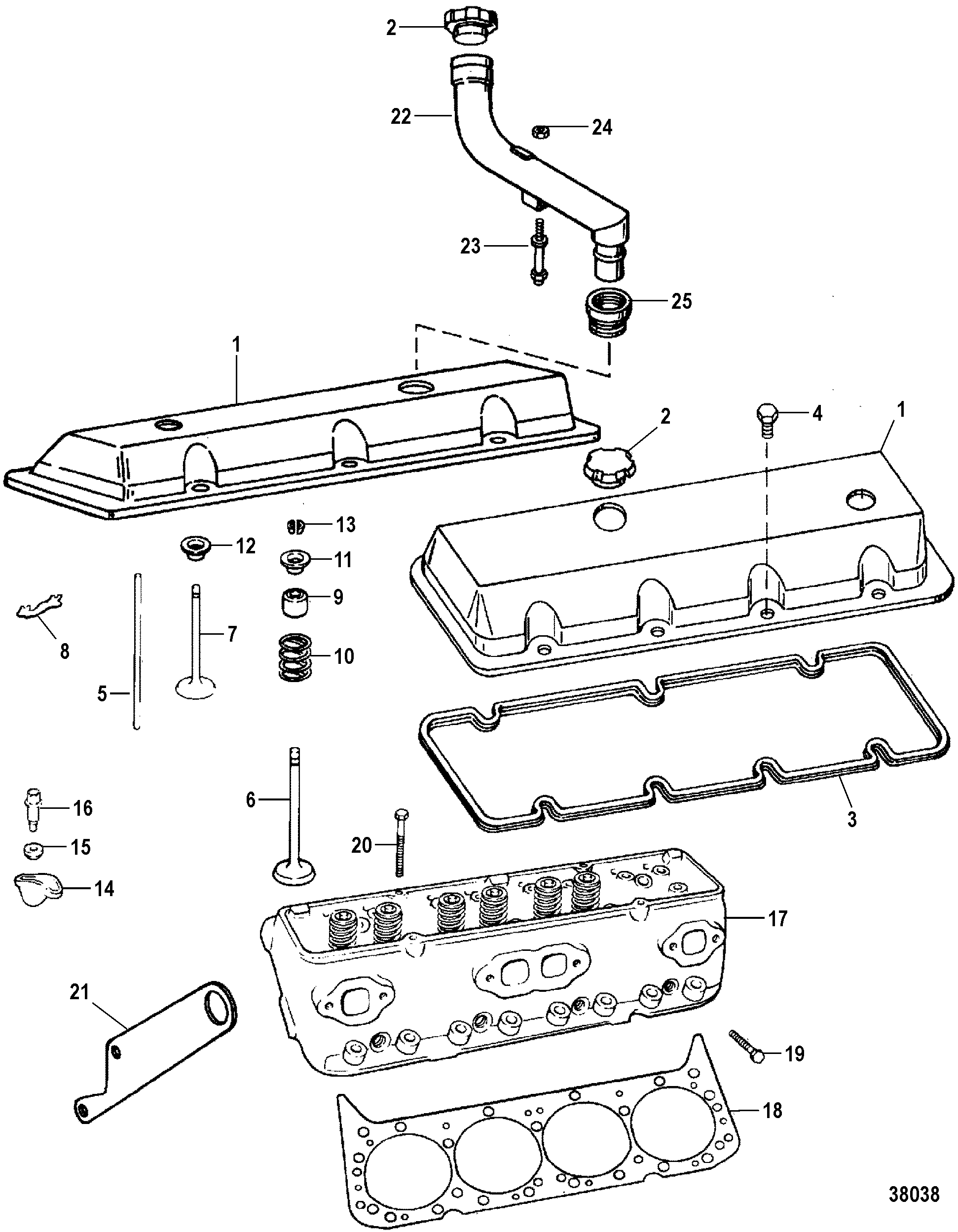

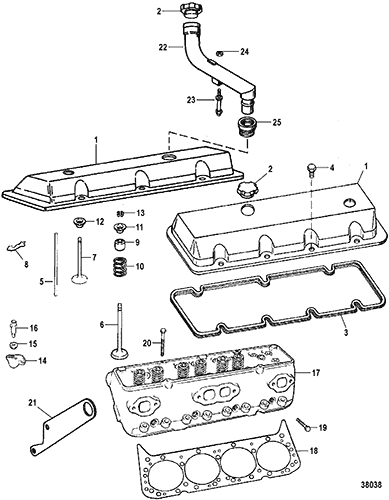

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850462



COVER 2

2 36-811569



CAP, Oil Tank 2

3 27-811588



GASKET, Rocker Cover 2
3
4 10-811589



BOLT, (1/4-20 x 0.875) (1/4-20 X 5/8 IN.) 14

5 850468



PUSH ROD 8
This Part is NLA from Mercruiser (INTAKE)
5 850469



PUSH ROD 8
This Part is NLA from Mercruiser (EXHAUST)
6 814506



VALVE, Exhaust 8
(STANDARD)
6 814507001



VALVE, Exhaust AR 814507 (.015 O.S.) 2
7 49134



VALVE, Intake 8
(STANDARD)
8 811585



GUIDE 8
This Part is NLA from Mercruiser
9 26-811545



SEAL, Valve 16
3
10 24-850465T



SPRING, Valve 16 24-850465
11 850463



ROTATOR 8
(EXHAUST)
12 850464



CAP 8
(INTAKE)
13 28-54530



KEY 32

14 850471



ARM, Rocker 16

15 850472



BALL, Rocker Arm 16

16 10-811593



BOLT, Rocker Arm 16

17 938-883492R1



CYLINDER HEAD 2 938-827656
18 879150141



GASKET, Cylinder Head 2 27-850470 3
19 10-8M0000463



BOLT, (2.00 Inch) 8 10-49106
20 10-8M0000482



BOLT, (4.125 Inch) 24 10-49105
21 807081T



BRACKET (FRONT) 1

22 36-807131T



TUBE 1
This Part is NLA from Mercruiser
23 16-805706



STUD 1

24 11-826709109



NUT, (.250-28) 1 11-35045
25 26-805622



GROMMET 1

- 27-806640A96



GASKET SET 1
This Part is NLA from Mercruiser
