6.2L MPI HORIZON MIE - Serial 1A090000 Thru 1A092168 - Throttle Body, Mechanical

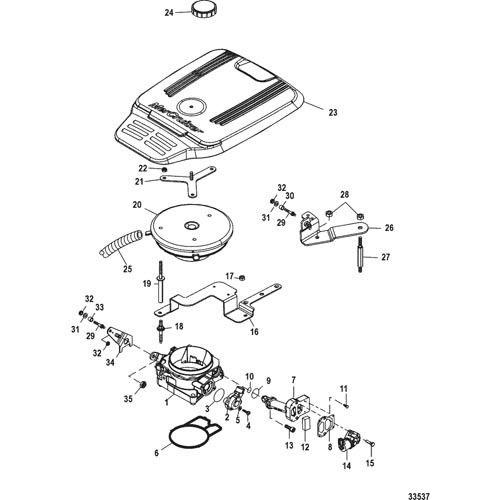

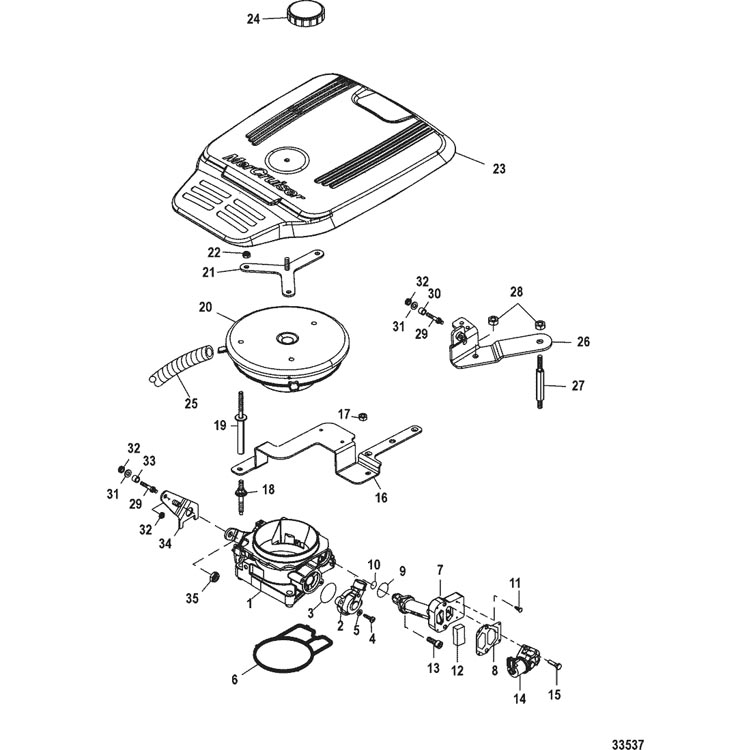

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 8M0069801



THROTTLE BODY ASSEMBLY 1 888770T
2 853678T



SENSOR, TPS 1

3 NSS



NOT SOLD SEPARATE, O-RING 1
This Part is not sold separately
4 NSS



NOT SOLD SEPARATE, SCREW KIT, TP 2
This Part is not sold separately
5 NSS



NOT SOLD SEPARATE, O-RING 2
This Part is not sold separately
6 27-885172



GASKET, Throttle Body 1

7 866295A02



IAC ADAPTOR KIT 1

8 NSS



NOT SOLD SEPARATE, Gasket 1
This Part is not sold separately
9 25-863006



O-RING 1

10 25-808547



O-RING 1

11 NSS



NOT SOLD SEPARATE, Screw-Drive 4
This Part is not sold separately
12 35-8M2001030



FILTER 1

13 10-4008612



SCREW, (M4 x 12) 2

14 862998



VALVE, Idle Air 1

15 10-4008820



SCREW, (M6 x 20) 2

16 863647T



BRACKET 1

17 11-401366



NUT, (M6) Stainless Steel 1

18 16-885171



STUD 3

19 16-864338



STUD, Special 3

20 863416T



FLAME ARRESTOR 1

21 863423



BRACKET, Cover Mount 1

22 11-401386


602-98-206-03 NUT, (M6) Stainless Steel 3

23 879288T67



COVER, Silver 3

24 11-863701



KNOB, Engine Cover 1

25 32-1589424



HOSE, (16.50 Inches Bulk), Breather 1

26 863420T



BRACKET, Throttle Anchor 1

27 16-863439



STUD 1

28 11-401366



NUT, (M6) Stainless Steel 2

29 16-97477A3



STUD KIT, Throttle Anchor 2

29 16-866641A01



STUD KIT, Throttle Anchor 2
(SEACORE)
30 23-31866



SPACER, (.256 x .313 x .625) 2

30 23-11284



SPACER, (.62 Diameter) 1

31 12-20533


602-98-260-49 WASHER 2

32 11-8267139



NUT, (.250-28) 3

32 11-826709109



NUT, (.250-28) Stainless Steel 3
(SEACORE)
33 NSS



NOT SOLD SEPARATE, Spacer 1
This Part is not sold separately
34 863417



BRACKET, Throttle 1

35 11-8267138



NUT, (.25-20) 1

35 11-826709108



NUT, (.250-20) Stainless Steel 1
(SEACORE)
