7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Distributor And Ignition Components

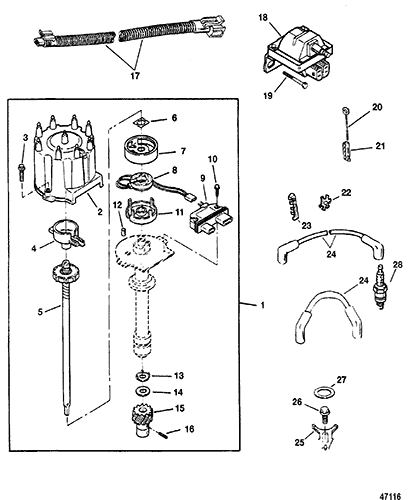

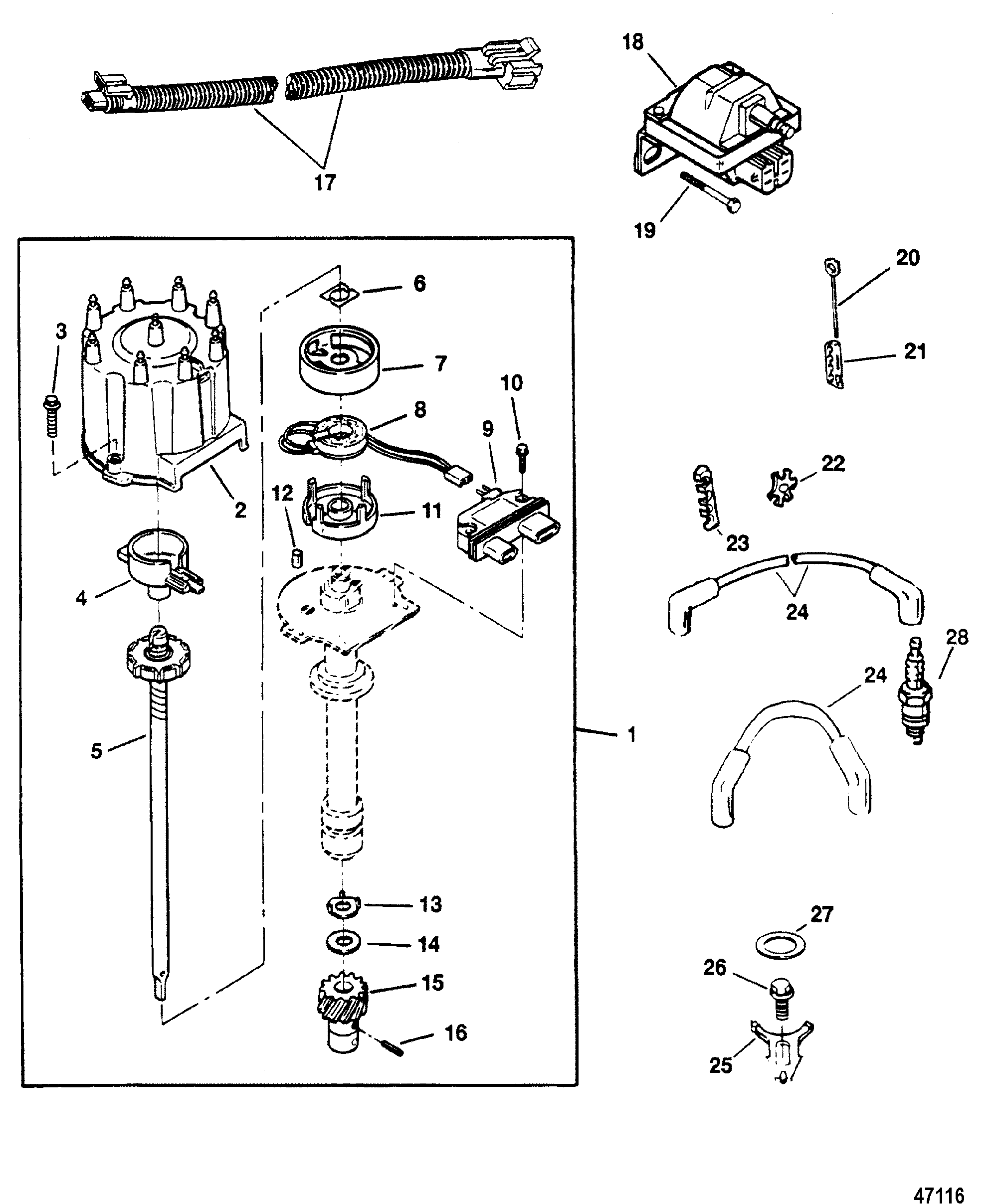

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805222A1



DISTRIBUTOR ASSEMBLY 1
2 808483T3
676-9-29411 700-71400
CAP 1  808483
3 10-808491



SCREW 2    This Part is no longer avaible
4 8M6001253

700-71100
ROTOR 1

5 808485T



SHAFT ASSEMBLY, Main 1 808485  This Part is no longer avaible
6 808487



RETAINER 1    This Part is no longer avaible
7 808486



SHIELD 1    This Part is no longer avaible
8 811639T

700-72130
COIL 1 811639
9 811637001



MODULE 1 811637
10 10-811638



SCREW 2    This Part is no longer avaible
11 811641



POLE PIECE 1
12 17-808488



PIN 1    This Part is no longer avaible
13 12-46350



WASHER 1     This Part is no longer avaible
14 12-808489



WASHER 1
15 43-808490



GEAR 1
16 NSS



Not Sold Separate 1   1
17 84-817376T01



HARNESS ASSEMBLY, Distributor Module to Ignition Coil 1 84-817376T
18 898253T27



COIL, Ignition 1 817378T
19 10-805189



SCREW, (.375-16 x .750) 2
20 16-90096A1



STUD ASSEMBLY, (#10-32 x Special) 2
21 54-72821



RETAINER 2
22 54676



RETAINER, Two Wire (2 WIRE) 2
23 32783



RETAINER, Three Wire (3 WIRE) 2
24 84-816608Q68



CABLE KIT, Ignition 1 84-816608A68
25 52185



CLAMP 1
26 10-805559



SCREW, (.375-16 x .875) Stainless Steel 1
27 27-344863



GASKET 1   3
28 33-898264001



SPARK PLUG 8 33-59571
- 27-805396A95



GASKET SET 1
