MX 6.2L MPI MIE - Serial 0L302200 Thru 0M299999 - Oil Pan and Oil Pump

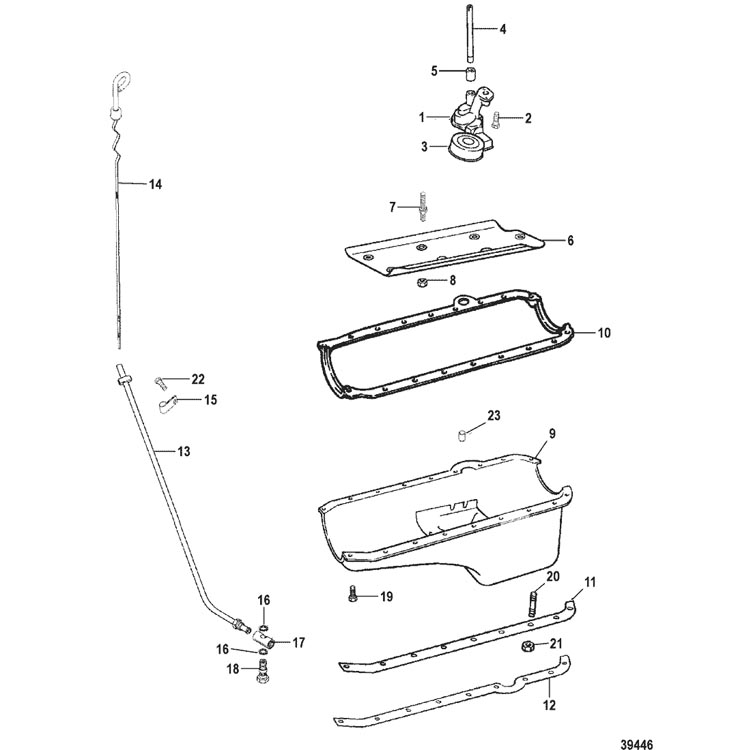

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Brackets (Delco)
- Alternator and Starter (Mando)
- Closed Cooling System
- Crankshaft and Flywheel
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Fuel Rails
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Sea Water Pump Assembly
- Senders and Sensors
- Standard Cooling System
- Starter Motor
- Throttle Body and Flame Arrestor
- Transmission (Down Angle) (Hurth 630)
- Transmission (Down Angle)(Hurth 630)
- Transmission (V-Drive) (Hurth 630)
- Transmission and Engine Mounting (Borg Warner 5000)
- Transmission and Engine Mounting (Borg Warner 71C and 72C)
- Transmission and Engine Mounting (Hurth 630)
- Transmission and Related Parts (Borg Warner 5000)
- Transmission and Related Parts (Borg Warner 71C and 72C)
- Transmission and Related Parts (Hurth 630)
- Water Pump and Front Cover
- Wiring Harness(EFI)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809907002 | PUMP ASSEMBLY, Oil | 1 | 8099071 | |||||
| 2 | 10-17346 | SCREW | 1 | ||||||
| 3 | 809909 | SCREEN, Oil Pump Pick Up | 1 | ||||||
| 4 | 36184 | SHAFT | 1 | ||||||
| 5 | 23-36183 | RETAINER | 1 | ||||||
| 6 | 986021 | DEFLECTOR, Oil | 1 | ||||||
| 7 | 16-850090 | STUD, (.437-14/.375-16 x 3.360) | 5 | ||||||
| 8 | 11-845602 | NUT, (.375-16) | 5 | ||||||
| 9 | 805930A1 | PAN ASSEMBLY, Oil | 1 | ||||||
| 10 | 27-138651 | GASKET, Oil Pan | 1 | ||||||
| 11 | 14257 | REINFORCEMENT | 1 | ||||||
| 12 | 14256 | REINFORCEMENT | 1 | ||||||
| 13 | 805384T | TUBE | 2 | ||||||
| 14 | 861942T2 | DIPSTICK, Dipstick | 1 | ||||||
| 14 | 861942T3 | DIPSTICK | 1 | ||||||
| 15 | 54-8054441 | CLIP | 2 | 805444 | |||||
| 16 | 27-8M0077608 | GASKET, Drain | 2 | No Longer Available | |||||
| 17 | 821504 | FITTING, Banjo | 1 | ||||||
| 18 | 10-807497 | BOLT, (M12) | 1 | ||||||
| 19 | 10-14070 | SCREW, (.250-20 x .625) | 14 | ||||||
| 20 | 16-11989 | STUD, (.312-18 x 1.6718) | 4 | ||||||
| 21 | 11-11971 | NUT, (.312-18) | 4 | ||||||
| 22 | 10-35366 | SCREW | 2 | ||||||
| 23 | 19-93654 | PLUG | 1 | ||||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
