8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Electrical Components

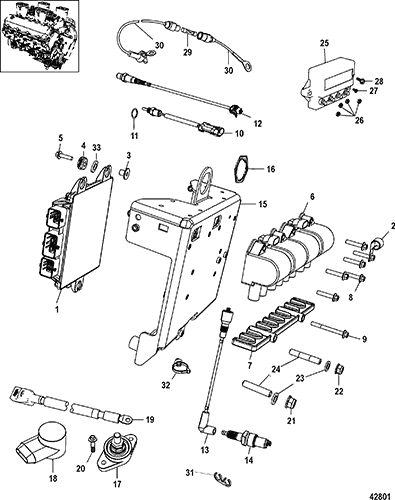

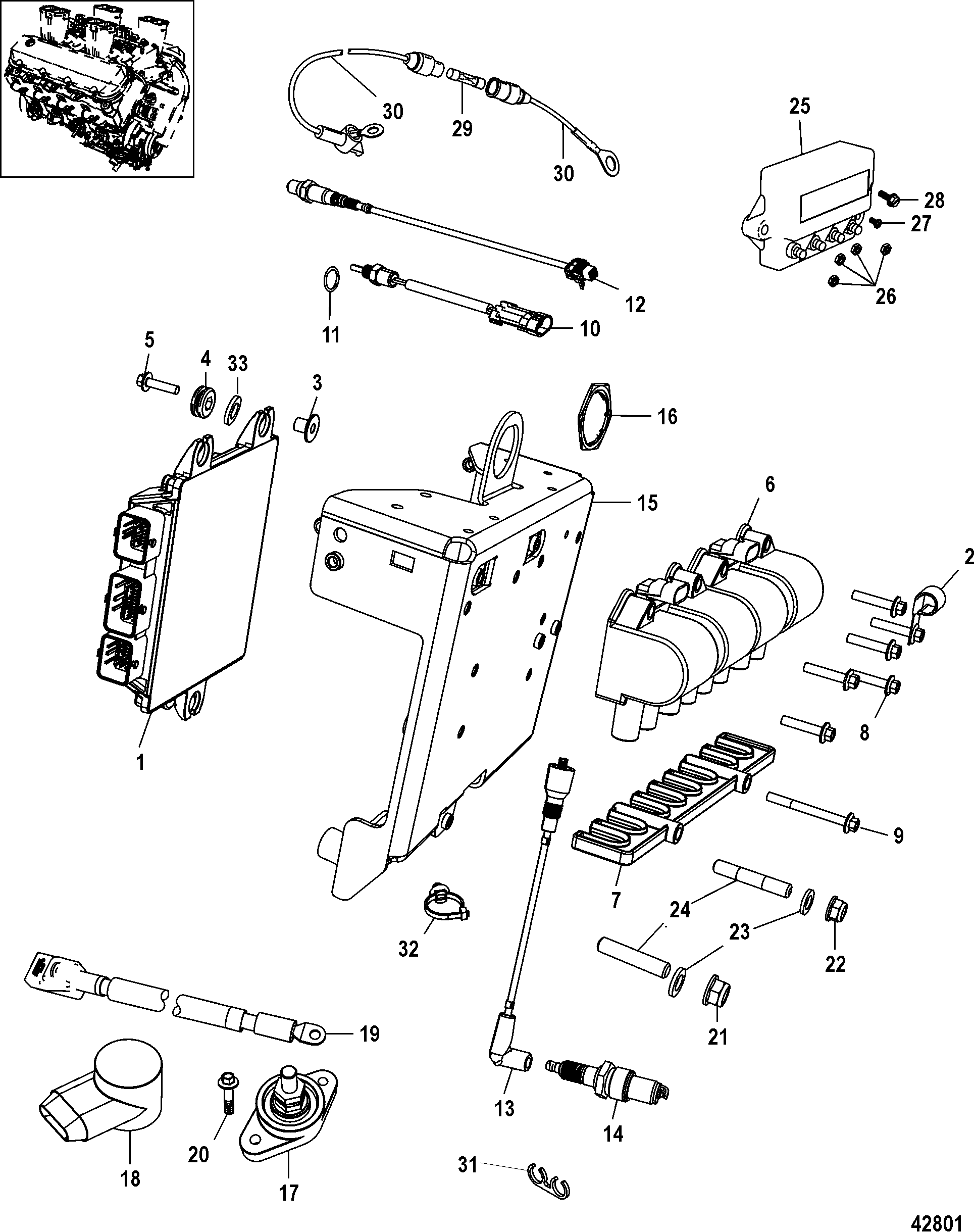

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0059122



ECM, Engine Control Module 1 8M0050588 Base, Manual
1 8M0059123



ECM, Engine Control Module 1 8M0050589 Base, Digital Throttle & Shift
1 8M0059124



ECM, Engine Control Module 1 8M0050590 High Output, Digital Throttle & Shift
2 54-858951



J CLIP 1

3 23-856954



BUSHING 3

4 25-834985



GROMMET 3

5 10-82130025



SCREW, (M6 x 25) 3

6 841203T



COIL, Ignition 2

7 8M0053613



RETAINER, Ignition Cable Support 1 844367
8 10-4010630



SCREW, (M6 x 30) Stainless Steel 6

9 10-88552560



SCREW, (M6 x60) 2

10 885342002



SENSOR ASSEMBLY, Water Temperature 2

10 885342002



SENSOR ASSEMBLY, 885342002 1
Exhaust
11 25-896699



O-RING, (1.78 mm x .08 mm) 1
2
12 8M2003959



SENSOR, Oxygen 4

13 899329A09



CABLE SET, High Tension-Set of Eight 1

14 33-810883



SPARK PLUG 8

15 8M0045733



BRACKET, Electrical 1

16 11-889664



NUT, (1.500-18) Black Nylon 1

17 8M2017792



STUD, Hot (3/8-16) 1

18 85-8M2021953



INSULATOR, Hot Stud 1 85-8M2019142
19 84-8M0045793



HARNESS, Hot Stud 1
20 10-82130025



SCREW, (M6 x 25) 2
21 16-56295



STUD, (.437 x 2.69), Electrical Bracket to Cylinder Head 1
22 16-8M0034453



STUD, (7/16 x 2.19), Electrical Bracket to Cylinder Head 1
23 11-859135
676-9-78116

NUT, (.437-20) Brass/Nickel Plated 2
24 12-45176



WASHER, (.453 x .812 x .105) Stainless Steel 2
25 42600A09



MERCATHODE ASSEMBLY 1
26 11-68219



NUT, (#10-32) Stainless Steel 4
27 10-62568



SCREW, (#10-16 x .375) 1
28 10-4010516



SCREW, (M5 x 16) Stainless Steel 1
29 88-79091



FUSE, 20 Ampere 1
30 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1
30 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1
31 54676



RETAINER, Two Wire 4
32 54-899145



CLIP, Tie Strap 4
33 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 3
