8.2L Mag (Base or HO) - Serial 1A351597 and Up - Exhaust Manifold, Elbow And Riser

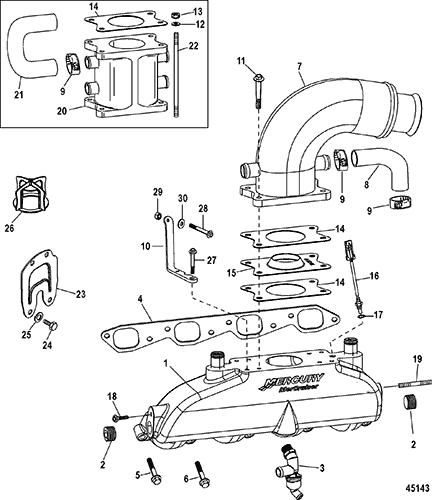

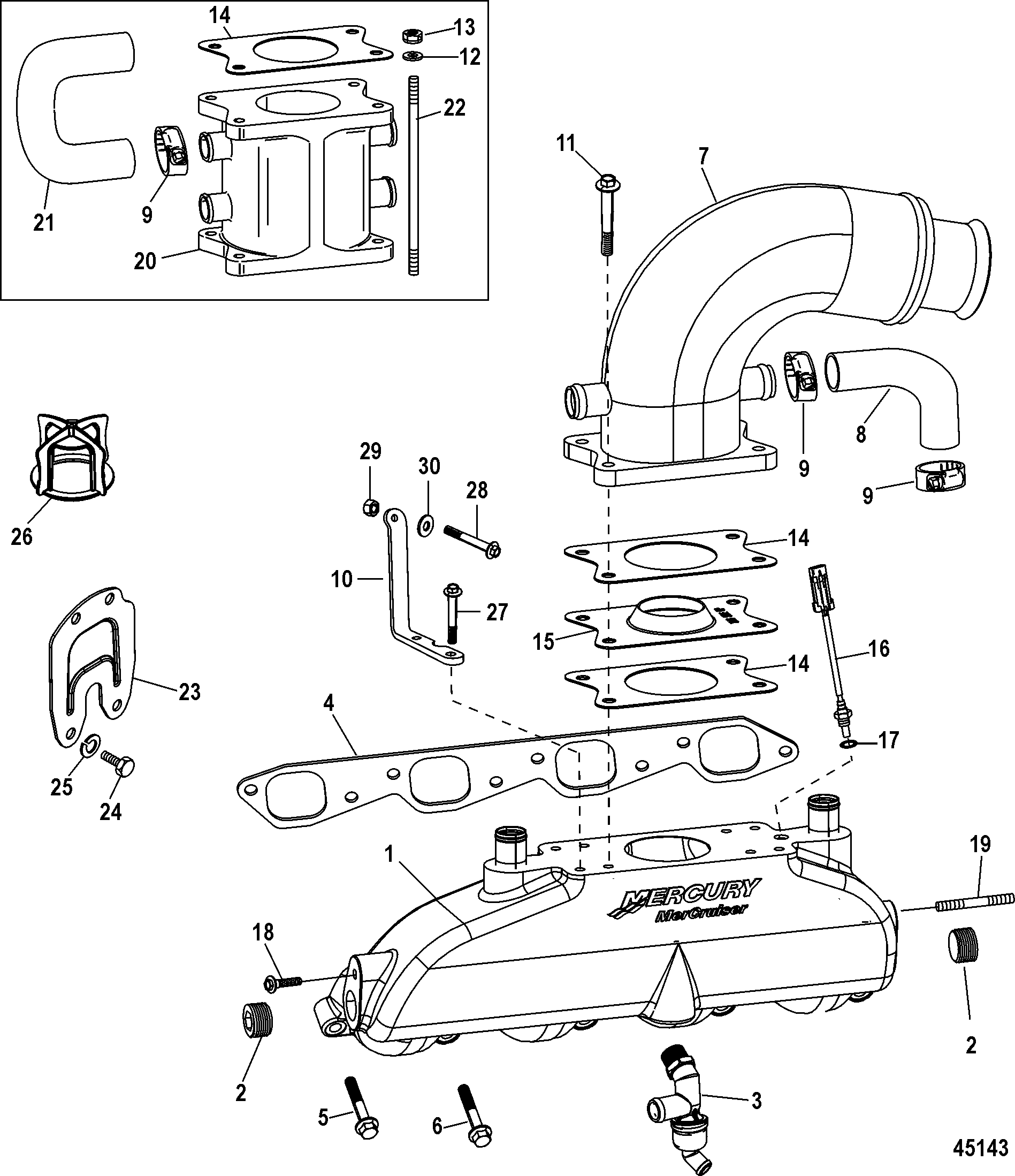

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Description	Num Req.	Superseded From	Special Notes
1	866178T01				MANIFOLD ASSEMBLY, Cast-Iron Alloy, Exhaust	2
2	22-12524				PLUG, (.375-18 x .475) Brass	1
3	8M0050599				FITTING ASSEMBLY, Drain	1		Exhaust Manifold (Port)
3	22-865828A02				FITTING ASSEMBLY, Drain - Stainless Steel	1		Exhaust Manifold (Starboard)
4	27-46820		676-9-61400	700-33760	GASKET, Exhaust Manifold to Cylinder Head	2		2
5	10-8M0058302				SCREW, (.375-16 x 1.75)	8	10-8M2017590
6	10-8M0058303				SCREW, (.375-16 x 3.0)	8	10-8M2017591
7	865331A02				ELBOW, Exhaust	2		Standard Rise
7	865332A02				ELBOW, Exhaust	2		2 Inch Rise
8	32-863095				HOSE, Elbow to Manifold	4
9	54-815504216				CLAMP, Worm Gear (1.56 Diameter)	8
10	8M2020215				BRACKET, Support, Cylinder Head to Reservoir	1
10	8M2020215				BRACKET, Support, Cylinder Head to Eye Bracket	1
11	10-4010725				SCREW, (M8 x 25)	8
12	12-12038				WASHER	8
13	11-4002030				NUT, (M8)	8
14	27-862356				GASKET, Elbow to Manifold	4
15	8M2000433				GASKET, Turbulator, Exhaust	2
16	885342002				SENSOR ASSEMBLY, Temperature	1
17	25-627021				O-RING, (.301 x .070)	1
18	10-4010716				SCREW, (M8 x 16)	1
19	16-424632				STUD, (M8 x 37.1)	1
20	866768T				RISER, (6 Inch)	2
21	32-863102				HOSE	4
22	16-863121				STUD, (M8 x 194)	8
NS	19-8079923				COVER, Hose Clamp End	8
23	861776A2				PLATE KIT	1
24	10-98794		676-9-78129	700-28300	SCREW, (.375-16 x 1.00)	4
25	13-41471				LOCKWASHER, (.375)	4
26	860222A1				RESONATOR, Exhaust	1
27	10-4010720				SCREW, (M8 x 20), Support Bracket to Manifold	4
28	10-82130025				SCREW, (M6 x 25), Support Bracket to Reservoir Bracket	1
28	10-82130025				SCREW, (M6 x 25), Support Bracket to Lube Bracket	1
29	11-401376				NUT, (M6)	2
30	12-29245			700-21490	WASHER, (.281 x .500 x .060) Stainless Steel	2
