7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Distributor And Ignition Components

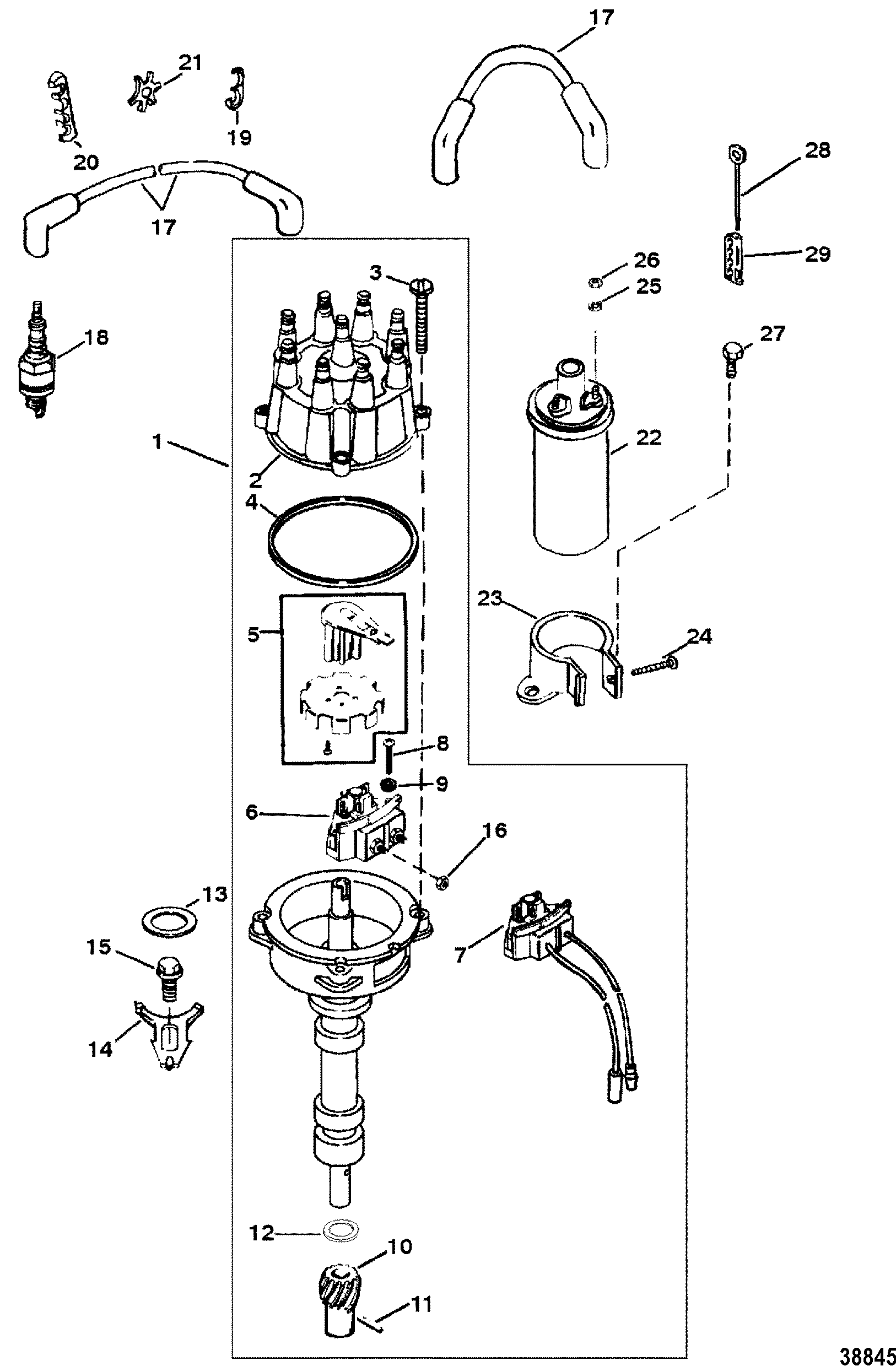

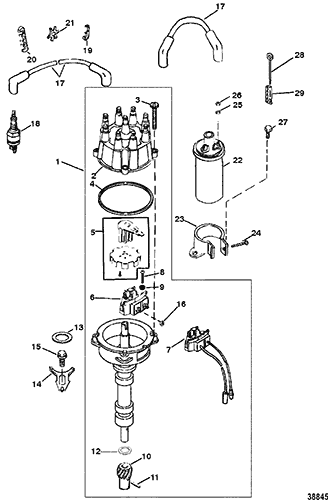

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Description Num Req. Superceded From Special Notes
1 805185A36


DISTRIBUTOR ASSEMBLY 1  90747A27 1
1 805185A36


DISTRIBUTOR ASSEMBLY 1  805185A26 6
2 805759T1


CAP ASSEMBLY 1  805759A2
3 10-90926


SCREW, (#10-32 x .810) 4
4 27-805760


GASKET 1

5 13524T1


WHEEL ASSEMBLY 1 13524A1
6 87-892150Q02


SENSOR ASSEMBLY 1 87-91019A3 1
7 87-892150Q02


SENSOR ASSEMBLY 1 87-91019A6 6
8 10-47618


SCREW, (#10-32 x 1.00 1   This Part is NLA from Mercruiser.
9 12-89302


WASHER 2 12-27736
10 43-818807


GEAR 1

11 17-47617


PIN 1

12 12-90931


THRUST WASHER 1

13 27-344863


GASKET 1
4,5
14 52185


CLAMP 1

15 10-806681


SCREW, (.375-16 x .875) 1

16 11-68219


NUT, (#10-32) Stainless Steel 2

17 84-816608Q61


CABLE KIT 1 84-816608A61
18 33-898264001


SPARK PLUG 8 33-59571
19 54676


RETAINER, Two Wire 2

20 32783


RETAINER, Three Wire 2

21 32784


RETAINER, Four Wire 2   .
22 300-8M0079202


COIL KIT 1 392-805570A2
23 77294T


BRACKET 1
This Part is NLA from Mercruiser. 1
23 65970T1


BRACKET 1
6
24 10-41408


SCREW, (#10-32 x 1.50) 1

25 13-26996


LOCKWASHER, (#10) Stainless Steel 2
 11-68219/tr>
26 11-68219


NUT, (#10-32) Stainless Steel 2

27 10-98261


SCREW, (.375-16 x .750) 2
1
27 10-92913


SCREW, (.437-14 x .750) 1
6
28 16-90096A1


STUD ASSEMBLY, (#10-32 x Special) 2

29 54-72821


RETAINER 2

- 27-811547A92


GASKET SET, Engine 1
(7.4L BRAVO)
- 27-811572A92


GASKET SET, Overhaul 1
This Part is NLA from Mercruiser. (454 MAGNUM)
