7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Carburetor And Linkage

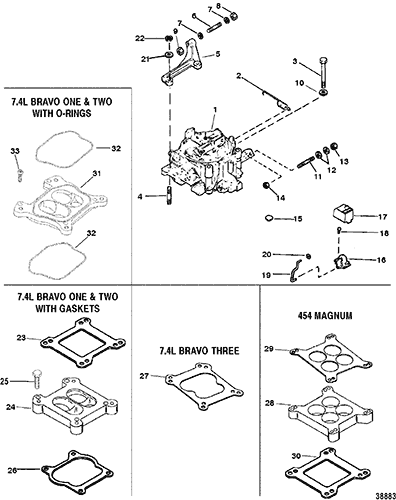

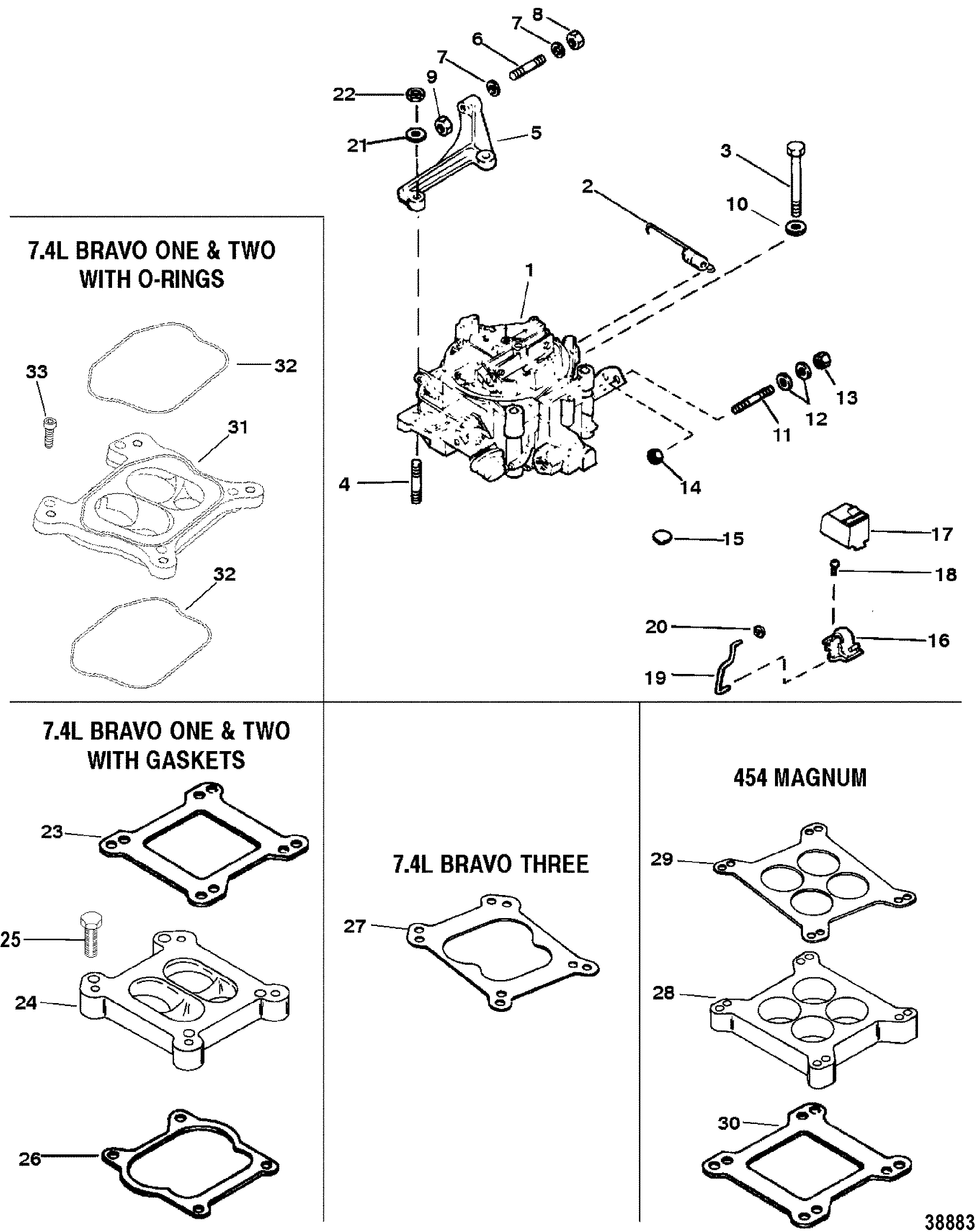

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3310-806969A2



CARBURETOR 1
This Part is NLA from Mercruiser. (7.4L BRAVO I & II) SN# 0D603118 THRU 0F351999
1 3310-806969A1



CARBURETOR 1
 (7.4L BRAVO I & II) SN# 0F352000 & Up
1 3310-806755A2



CARBURETOR 1
 This Part is NLA from Mercruiser. (7.4L BRAVO III) SN# 0D838819 & Up
1 3310-806755A1



CARBURETOR 1    This Part is NLA from Mercruiser. (454 MAGNUM) SN# 0D808069 THRU 0F304999
1 3310-806755A2



CARBURETOR 1
This Part is NLA from Mercruiser. (454 MAGNUM) SN# 0F305000 & Up
2 24-897454



SPRING 1 24-32817
3 10-35385



SCREW, (.312-18 x 1-3/4) 2
3 10-35386



SCREW, (.312-18 x 1.00) 2
4 16-70237



STUD, (.312-18/.312-24 x 2.620) 2
4 16-70236

700-22482
STUD, (.312 x 1.500) 2
5 817685T



BRACKET (CAST) 1
This Part is NLA from Mercruiser.
5 805359T



BRACKET (STAMPED) 1

6 16-818192



STUD 1

7 12-24664



WASHER, (M4 x 20) 2

8 11-826709109



NUT, (.250-28) 1 11-35045
9 11-8267089



NUT, (.250-28) 1 11-20361
10 13-39107

700-21496
LOCKWASHER, (.312-24) 2

11 16-96112



STUD, (.250-28 x 2.00), Throttle Cable Anchor 1

12 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 2

13 11-8267089



NUT, (.250-28) 1 11-20361
14 11-826709109



NUT, (.250-28) 1 11-35045
15 22-48358T



PLUG, (.375) 1 22-48358
16 71464A01



CHOKE 1  71464 AUTOMATIC CHOKE
17 63922



COVER 1
AUTOMATIC CHOKE
18 10-69235



SCREW, (.190-24 x .500) 1
AUTOMATIC CHOKE
19 806937



ROD, Choke 1
This Part is NLA from Mercruiser. (7.4L BRAVO I & II) AUTOMATIC CHOKE
19 806940



ROD, Choke 1
This Part is NLA from Mercruiser. (454 MAGNUM & 7.4L BRAVO III) AUTOMATIC CHOKE
20 54-89668



CLIP 1
This Part is NLA from Mercruiser. AUTOMATIC CHOKE
21 12-20084



WASHER, (.328 x .562 x .062) 2

22 11-29250



NUT, (.312-24) 2

23 27-41610
676-9-61001

GASKET 1
7.4L BRAVO I & II WITH GASKETS 4
24 806177A3



SPACER 1
This Part is NLA from Mercruiser. 7.4L BRAVO I & II WITH GASKETS
25 10-54523



SCREW, (.312-18 x 1.00) 4
7.4L BRAVO I & II WITH GASKETS
26 27-524572



GASKET 1
7.4L BRAVO I & II WITH GASKETS 4
27 27-814210



GASKET 1
(7.4L BRAVO III & 454 MAGNUM WITH #9773 CARBURETOR) 4
28 889338A1



SPACER 1  806833A1 This Part is NLA from Mercruiser. (NOT USED WITH #9773 CARBURETOR) 454 MAGNUM
29 27-41609
676-9-61002 700-30361
GASKET 1
454 MAGNUM 5
30 27-41610
676-9-61001

GASKET 1
454 MAGNUM 5
31 806177A3



SPACER 1
This Part is NLA from Mercruiser. 7.4L BRAVO I & II WITH O-RINGS
32 25-806237



QUAD RING 2
7.4L BRAVO I & II WITH O-RINGS
33 10-54523



SCREW, (.312-18 x 1.00) 4
7.4L BRAVO I & II WITH O-RINGS
- 27-811547A92



GASKET SET, Engine 1
(7.4L BRAVO)
- 27-811572A92



GASKET SET, Overhaul 1
This Part is NLA from Mercruiser. (454 MAGNUM)
