7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Audio Warning System

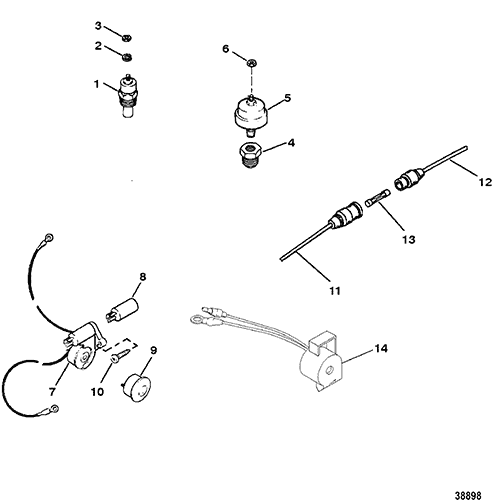

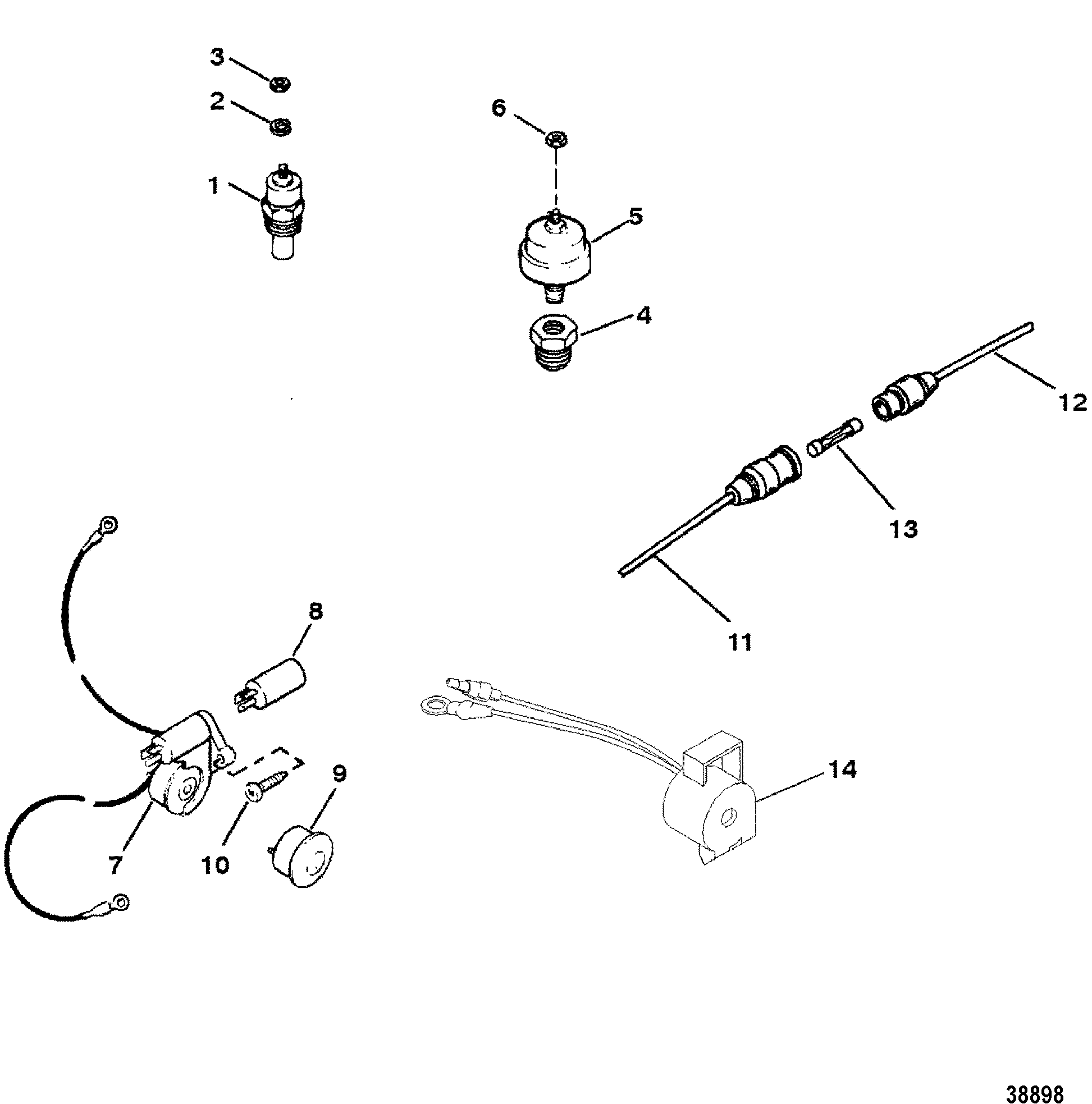

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando # AC155603)
- Alternator (Mando #AR-150)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate (454 Magnum)
- Exhaust System (7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo-454 Mag) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260) 2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) S-N: 0F305000 and Up
- Thermostat Housing (Standard Cooling) S-N: 0F3519999 and Below
- Wiring Harness-Electrical (Mounted On Distributor) Tb Iv
- Wiring Harness-Electrical (Mounted On Exhaust Elbow) Tb Iv
- Wiring Harness-Electrical (Thunderbolt V Ignition)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH ASSEMBLY | 1 | NUT CONNECTION | ||||
| 2 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | NUT CONNECTION | ||||
| 3 | 11-45076 | NUT, (#10-32) Brass | 1 | NUT CONNECTION | ||||
| 4 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | NUT CONNECTION | ||||
| 1 | 48952 | SWITCH, Water Temperature | 1 | 87-806951 | PUSH-ON CONNECTION | |||
| 4 | 22-805059 | FITTING | 1 | PUSH-ON CONNECTION | ||||
| 5 | 87-805605A1 | SWITCH ASSEMBLY | 1 | |||||
| 6 | 11-45076 | NUT, (#10-32) Brass | 1 | |||||
| 7 | 816492A14 | HOUSING KIT | 1 | 86047A16 | Please note - this is the new style buzzer, not horn & timer | |||
| 8 | 816492A14 | TIMER | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | |||
| 9 | 68878A6 | HORN ASSEMBLY, Buzzer Alarm | 1 | |||||
| 10 | 10-69013 | SCREW, (#10-16 x .880) | 2 | |||||
| 11 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | |||||
| 12 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | |||||
| 13 | 88-79091 | FUSE, 20 Ampere | 1 | |||||
| 14 | 816492A6 | ALARM KIT | 1 |
