Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Special Tools-Gear Housing (Counter Rotation)

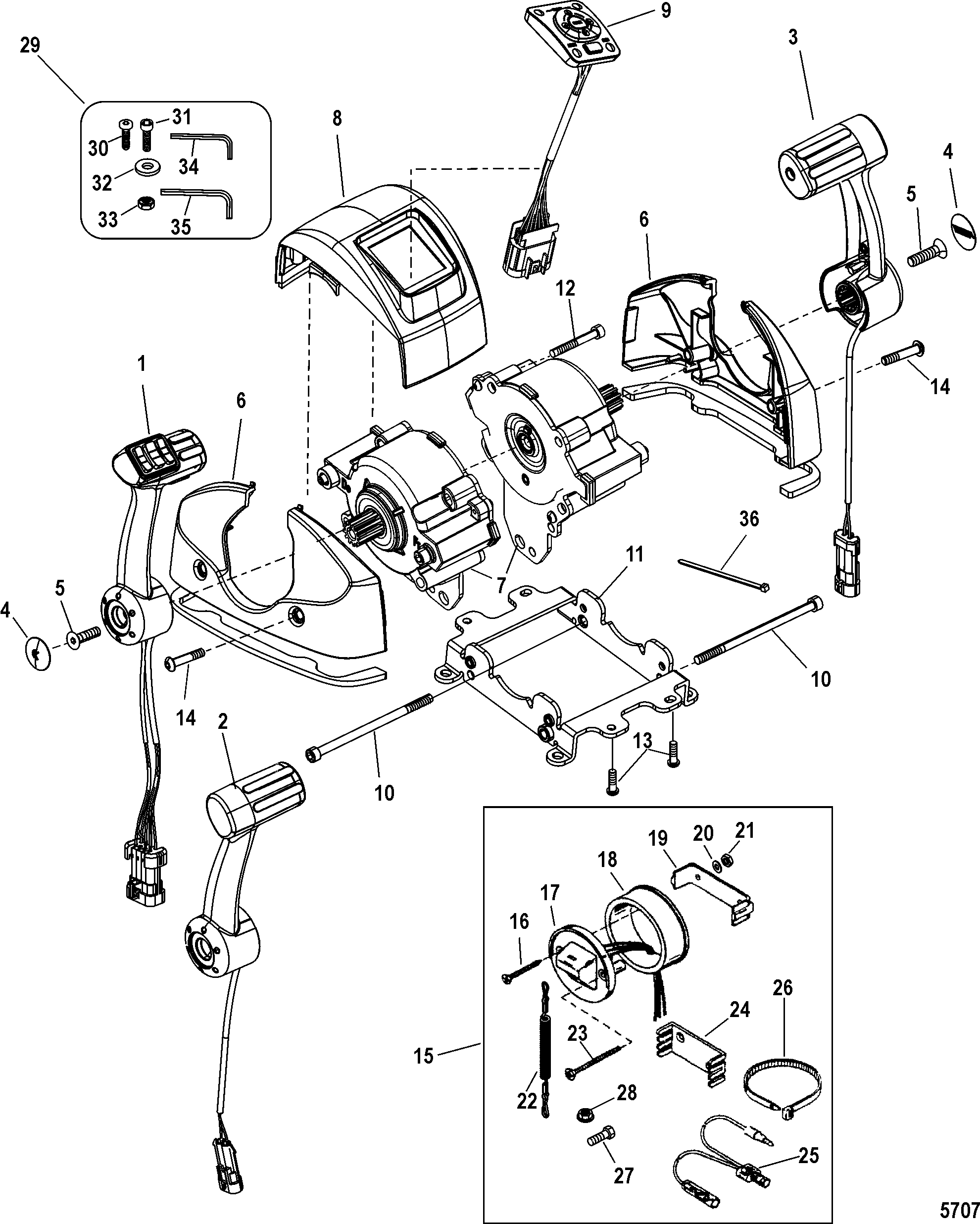

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 91-53459



ROD TOOL, Backlash Indicator Flag 1
(ALL GEARS EXCEPT 14:28)
- 91-8M0053505



INDICATOR TOOL, Backlash 1 91-78473 (14:28 GEARS)
- 91-18605A2



INSTALLATION TOOL, Bearing Adaptor 1

- 91-61069T



WRENCH, Bearing Carrier Retainer 1 91-61069
- 91-816244



DRIVER TOOL, Bearing 1

- 91-14311A04



PRE LOAD TOOL, Bearing 1 91-14311A2
- 91-816245



REMOVAL TOOL, Bearing 1

- 12-54048



WASHER 1

- 91-58222A1



DIAL INDICATOR TOOL 1

- 91-89897



HOLDING TOOL, Dial Indicator 1

- 91-56775T



HOLDING TOOL, Driveshaft 1 91-56775
- 91-43506T



WRENCH, Bearing Retainer 1 91-43506
- 91-816243



GUIDE PLATE 1

- 91-15755T



MANDREL 1 91-15755
- 91-31108T



DRIVER TOOL, Oil Seal 1 91-31108
- 91-817569T



DRIVER TOOL, Oil Seal 1 91-817569
- 91-56048001



SHIMMING TOOL, Pinion Gear 1 91-56048
- 91-61067A04



ADAPTOR TOOL, Pinion Nut 1 91-61067A3
- 91-61077T



ADAPTOR TOOL, Driveshaft 1 91-61077
- 91-85716



PULLER TOOL 1

- 91-31229



SHAFT 1

- 91-46086A1



PULLER JAW ASSEMBLY 1

- 91-816242



PULLER JAWS 1

- 91-807944T



INSTALLER TOOL, Bearing 1 91-807944
- 91-34569A1



PULLER ASSEMBLY, Slide Hammer 1

- 91-815850



FOWARD GEAR INSTALLATION TOOL 1

- 91-66274



TORQUE WRENCH, (0-150 lb-in) (Inch Pounds) 1

- 91-37241

700-90150
PULLER PLATE 1

- 91-821571A1



GUIDE TOOL, Water Pump Alignment Pins 1

- 91-31229A7



PULLER KIT, Bearing 1

- 91-36569T



DRIVE HEAD TOOL 1 91-36569
- 91-37323



DRIVER ROD TOOL, Needle Bearings 1

- 11-24156



NUT, (.625-18) 1

- 91-36571T



PILOT WASHER 1 91-36571
- 91-29310



PLATE 1

- 91-38628T



INSTALLATION TOOL, Bearing 1 91-38628
