Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Pump-Motor (Top Mt Reservoir)(Design II-14336A25)

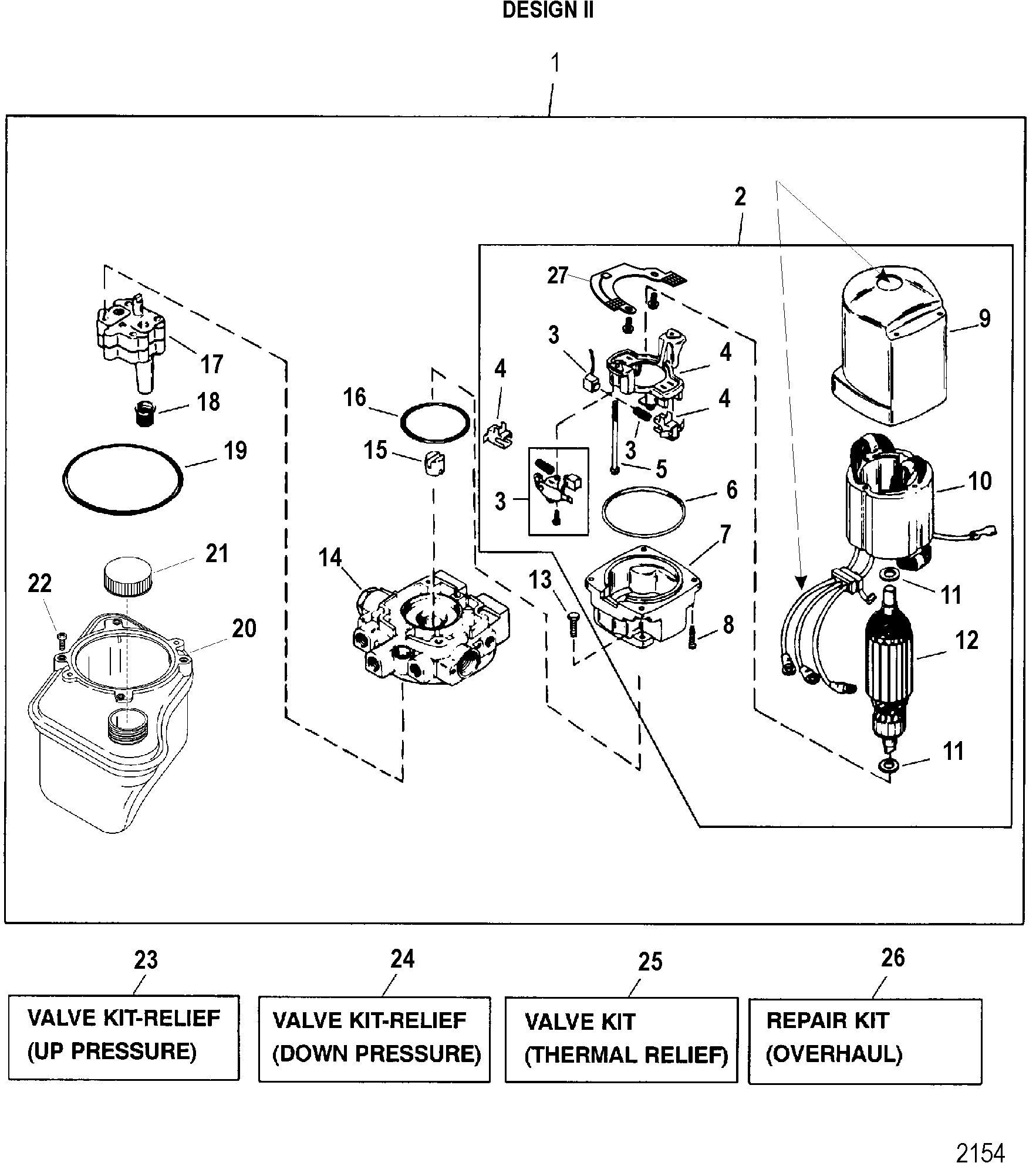

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865380A13



PUMP/MOTOR ASSEMBLY 1 14336A25 - Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line
2 891736T



MOTOR ASSEMBLY, Complete 1
- Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line
3 891737



BRUSH KIT 1

4 891738



HOLDER ASSEMBLY, Brushes 1

5 10-891739



SCREW, Brush Holder 2

6 25-891740



O-RING 1

7 NSS



NOT SOLD SEPARATE, End Cap Assembly 1
This Part is not sold separately
8 10-891741



SCREW 4

9 NSS



NOT SOLD SEPARATE, Cover Assembly - With Bearing 1
This Part is not sold separately
10 NSS



NOT SOLD SEPARATE, Field and Frame Assembly 1
This Part is not sold separately
11 NSS



NOT SOLD SEPARATE, Thrust Washer 2
This Part is not sold separately
12 NSS



NOT SOLD SEPARATE, Armature 1
This Part is not sold separately
13 10-823444



SCREW 2

14 808728T



ADAPTER ASSEMBLY 1

15 803852



COUPLING 1

16 25-89498



O-RING, Motor End 1

17 18529



PUMP ASSEMBLY, Includes Screws 1
Does not include filters
18 35-89496



FILTER 2

19 25-17645



O-RING, Reservoir End 1

20 883166A2



RESERVOIR KIT, With Filters Ref 18 And O Ring Ref 19 1
The resevoir with single mount screw is no longer made, this resevoir mounts with 4 screws and may require a new pump adapter.
21 36-865448A01



CAP, Oil Reservoir 1 36-861597
22 10-883167



SCREW, (#8-32) 4

23 812498A1



VALVE KIT, Relief, Up Pressure 1

24 812499A1



VALVE KIT, Relief, Down Pressure 1
25 95353A1



VALVE KIT, Relief, Thermal 1
26 18545A1



REPAIR KIT, Overhaul 1
