Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Hydraulic Pump And Bracket

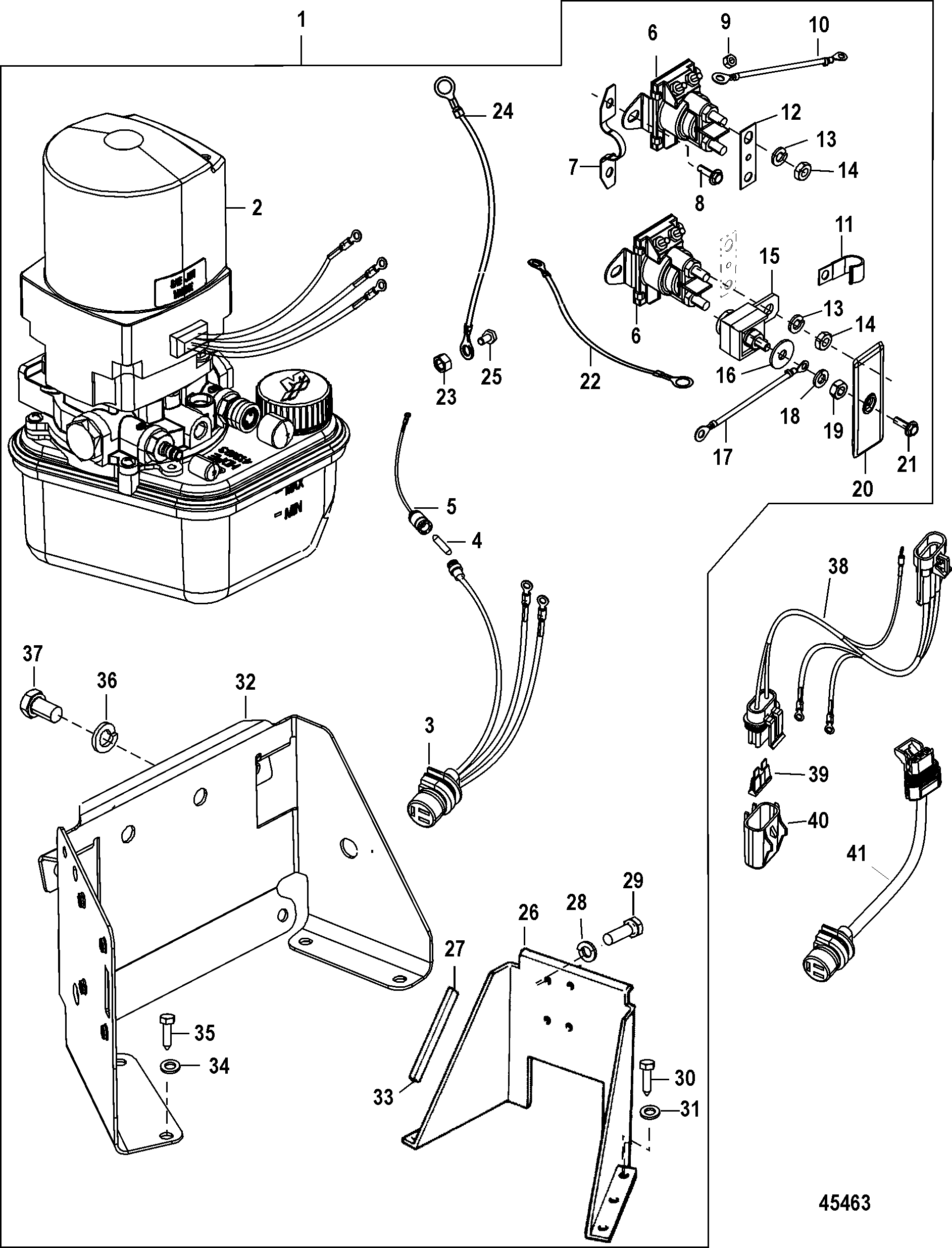

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865380A25



PUMP ASSEMBLY, Trim 1 14336A9 (Bottom Mounted Reservoir)(Design I - Small Manufacturing Decal on Top of Motor Cover And Wires Will Have White Spiral Line)
1 865380A25



PUMP ASSEMBLY, Trim 1 14336A15 (Bottom Mounted Reservoir)(Design I - Small Manufacturing Decal on Top of Motor Cover And Wires Will Have White Spiral Line)
1 865380A25



PUMP ASSEMBLY, Trim 1 14336A17 (Top Mounted Reservoir)(Design I - Small Manufacturing Decal on Top of Motor Cover And Wires Will Have White Spiral Line)
1 865380A25



PUMP ASSEMBLY, Trim 1 14336A22 (Top Mounted Reservoir)(Design II - Etched Manufacturing Numbers on Top of Motor Cover And Wires Will Have White Straight Line)
2 865380A13



PUMP/MOTOR ASSEMBLY 1 14336A8 (See Design-I,Bottom Mount Reservoir Pump and Motor Section For Parts Breakdown) 22
2 865380A13



PUMP/MOTOR ASSEMBLY 1 14336A20 (See Design-I,Top Mount Reservoir Pump and Motor Section For Parts Breakdown) 22
2 865380A13



PUMP/MOTOR ASSEMBLY 1 14336A25 (See Design-II Top Mount Reservoir Pump and Motor Section For Parts Breakdown) 22
3 84-79147A3



HARNESS ASSEMBLY 1

4 88-79091



FUSE, 20 Ampere 1

5 84-95084A2



CABLE ASSEMBLY 1

6 89-96158T



SOLENOID, Starter 2 89-96158
7 88075



RETAINER 1

8 10-41508



SCREW, (.250-20 x .500) Stainless Steel 4

9 11-26419



NUT, (#8-32) Brass 4

10 84-86322A24



CABLE ASSEMBLY, (4.00 Inches) 1

11 54-55098



J CLIP 1

12 94275



LINK 1

13 13-26992



LOCKWASHER, (.250) Stainless Steel 4

14 11-94330



NUT, (.250-20) Brass 4

15 79023T10



FUSE ASSEMBLY, 110 Ampere 1 88-79023A10
16 12-96457



WASHER, Phenolic (.27 x .81 x .062) 1

17 84-79139A12



CABLE ASSEMBLY, Red-Positive, (Positive) 1

18 13-26992



LOCKWASHER, (.250) Stainless Steel 1

19 11-21825



NUT, (.250-28) 1

20 85-861680



BOOT 1 85-96535
21 10-48409



SCREW, (#10-16 x .625) Stainless Steel 1

22 84-86322A15



CABLE ASSEMBLY, (5.50 Inches) Black 2

23 11-68292



NUT, (.312-18) 1

24 84-79138A9



CABLE ASSEMBLY, (6.00 Feet) Black-Negative, (Negative) 1

25 10-90285



SCREW, (.312-18 x .625) 1

26 862548A1



BRACKET ASSEMBLY (Floor Mounted) 1 42419A1
27 58491



CHANNEL, Rubber (4.00 Inches) 2

28 13-39107

700-21496
LOCKWASHER, (.312-24) 4

29 10-35386



SCREW, (.312-18 x 1.00) 4

30 10-59784



SCREW, (.250-10 x 1.00) 6

31 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 6

32 862548A1



BRACKET KIT 1
(14336A15/A17/A22 Floor/Transom Mounted)
33 58491



CHANNEL, Rubber (4.00 Inches) 2
34 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 4
35 10-59784



SCREW, (.250-10 x 1.00) 4
36 13-35048



LOCKWASHER, (.375) 2
37 10-98260



SCREW, (.375-16 x .620) 2
38 84-79147A09



HARNESS ASSEMBLY 1
39 88-812619



FUSE, Yellow - 20 Ampere 1
40 828054



COVER, Fuse 1
41 84-865771A02



HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Male To Packard 3 Pin Male 1
