Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Gear Housing (Driveshaft)(Counter Rotation)

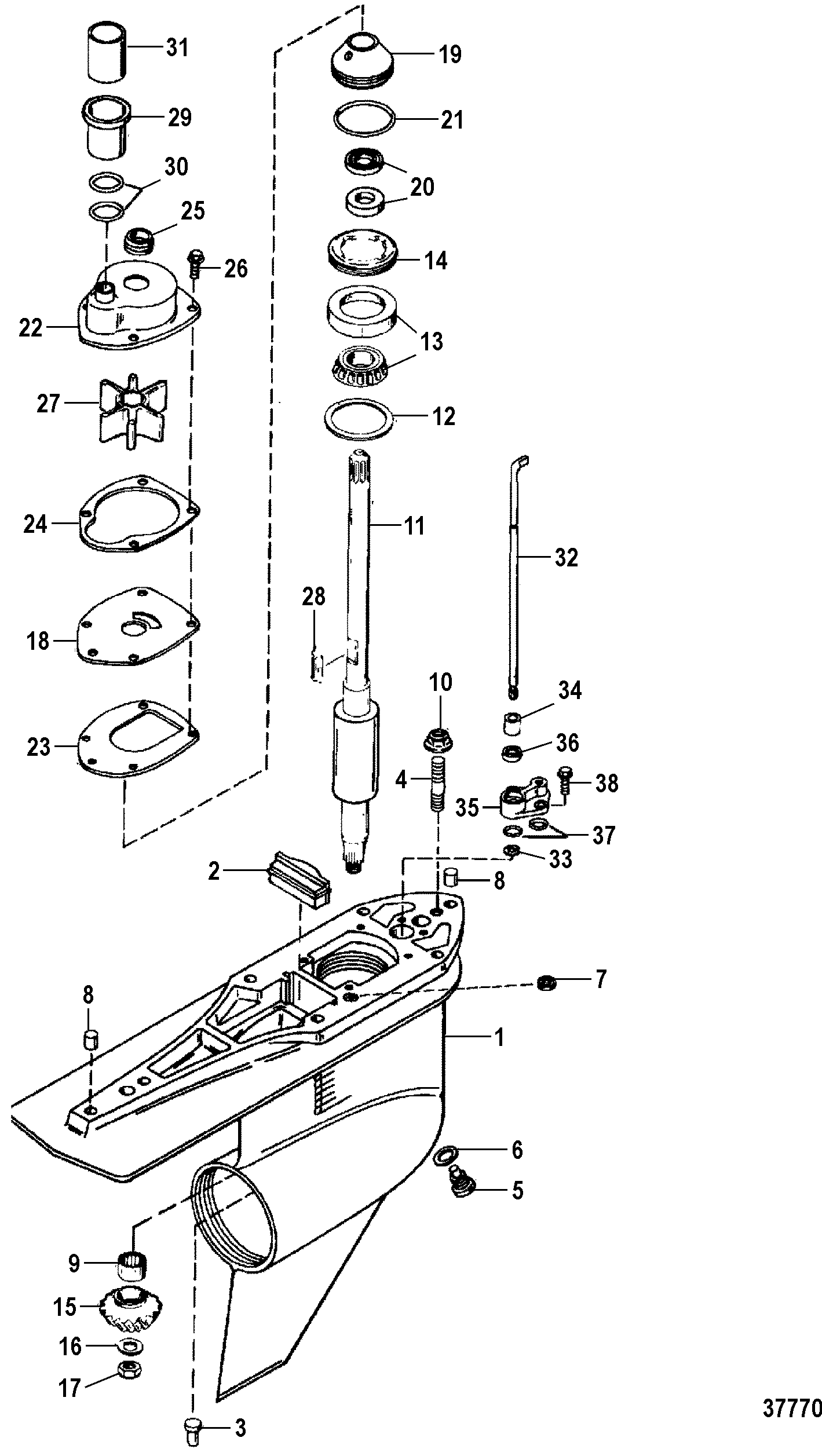

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A47



GEAR HOUSING ASSEMBLY 1 1623-815822A33 (COMPLETE)
1 1623-815822A36



GEAR HOUSING ASSEMBLY 1

2 821526001



FILLER BLOCK 1 821526
3 17-379721



PIN 1

4 16-57984



STUD, (.437-14/.437-20 x 2.380) 1

5 22-8M0058389

700-21731 525-22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain 1 22-67892A1
6 12-191833


525-12-191833 WASHER, Fiber 1 12-19183 5,6
7 26-455771


525-26-455771 SEAL 1 26-45577 5,6
8 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2

9 31-42647A1
676-9-75121 700-21610
BEARING ASSEMBLY, Roller 1

10 11-859135
676-9-78116

NUT, (.437-20) 1 11-817618
11 45-816919
676-9-78112 700-11140
DRIVESHAFT 1
(1.62:1 AND 1.47:1 RATIO)
11 45-816472

700-11140
DRIVESHAFT 1
(1.94:1 AND 1.81:1 RATIO)
12 15-8M0063267



SHIM SET AR 15-42637A1 3
13 31-36387A1
676-9-75107 700-21580
BEARING, Roller 1

14 8245191
676-9-78126

RETAINER 1 824519
15 43-828289A1



GEAR SET 1
(INCLUDES PINION AND FORWARD GEARS)
16 12-92721
676-9-78108 700-32800
WASHER 1

17 11-35921
676-9-78103 700-11190
NUT, (.625-18) 1

18 8172761



FACEPLATE 1 817276 6
19 807929A1
676-9-72642 700-12341
CARRIER ASSEMBLY 1 821759A4 6
20 26-66302

700-85011
SEAL, Oil 2
SN# 0M400411 & Below 5,6
20 26-864319



SEAL, Oil 1
SN# 0M400412 & Up
21 25-896523

700-81395
O-RING, (2.175 x .175) 1 25-90011 5,6
22 817275A1
676-9-48314 700-12415
PUMP ASSEMBLY, Water 1
impeller not included 6
23 27-430331



GASKET 1
5,6
24 27-8172771



GASKET 1 27-817277 5,6
25 26-816575A2
676-9-43628 700-85590
SEAL KIT 1
seal tool not included 5,6
26 10-816928
676-9-78128 700-12834
SCREW, (M6 x 16) 4

27 47-43026T2
676-9-45307 700-89630
IMPELLER 1 47-430262 6
28 28-8M0032833



KEY 1 28-43037 6
29 816597A1
676-9-78110 700-12824
COUPLING ASSEMBLY 1

30 25-21836
676-9-76565

O-RING, (.796 x .139) 2
5,6
31 23-816583

700-12825
SLEEVE 1

32 815919A1
676-9-72477 700-21031
SHIFT SHAFT, Lower 1

33 53-29641
676-9-78109 700-21136
E RING 1

34 23-67370
676-9-78134

SLEEVE (1/4 IN. THICK) 1

34 12-77674

700-30030
WASHER (1/8 IN. THICK) 1

35 23-815921A21

700-21015
BUSHING ASSEMBLY 1 23-815921A10
36 26-892361



SEAL, Oil 1 26-89236 5
37 25-36318
676-9-76574

O-RING, (.799) 2
5
38 10-816928
676-9-78128 700-12834
SCREW, (M6 x 16) 2

- 817275Q05



REBUILD KIT, Water Pump - 817275A4
- 26-816575A3
676-9-74206 700-87511
SEAL KIT, Gear Housing -
