Bravo Three - Serial 0F730000 Thru 0M100000 - Driveshaft Housing And Drive Gears (Gasoline Engine)

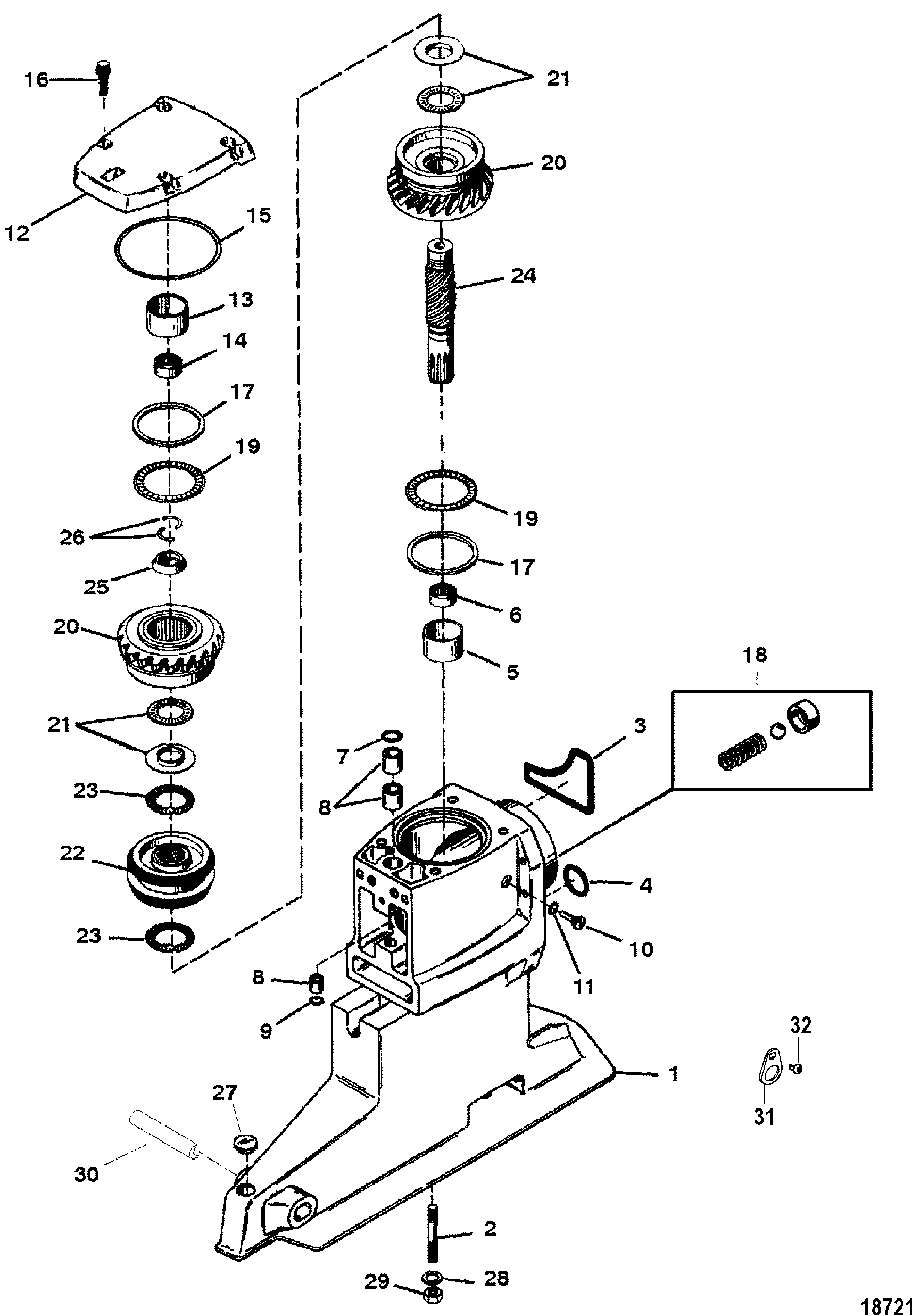

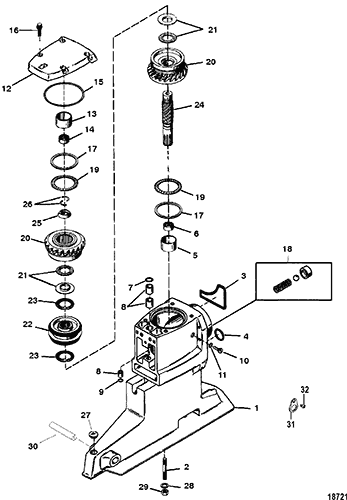

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1589-8868G21



HOUSING ASSEMBLY, Driveshaft 1

2 16-579203


525-16-579203
STUD, (.437-14/.437-20 x 2.060) 4

3 16755Q1

700-86310

SEAL 1 16755A1 3
4 25-457101


525-25-457101
O-RING, (1.424 x .103) 1 25-45710 3
5 31-815900



BEARING 1

6 31-87156



BEARING ASSEMBLY, Roller 1

7 25-62705


525-25-62705
O-RING 1
3
8 23-861209A1

700-87563
525-23-861209A1
BUSHING KIT 1

9 26-127091


525-26-127091
SEAL, Oil 1 26-12709 3
10 22-8M0058389

700-21731
525-22-8M0058389
FITTING KIT, Magnetic, Plug Fill/Drain 1 22-67892A1
11 12-191833


525-12-191833
WASHER, Fiber 1 12-19183 3
12 92068A6



TOP COVER 1

13 31-815900



BEARING 1

14 31-87156



BEARING ASSEMBLY, Roller 1

15 25-97387


525-25-97387
O-RING 1
3
16 10-98794
676-9-78129
700-28300
525-10-98794
SCREW, (.375-16 x 1.00) 4

17 23-87560091



BEARING, Thrust (.091) AR
(RED) 6
17 23-87560094



BEARING, Thrust (.094) AR
(LIGHT BLUE) 6
17 23-87560097



BEARING, Thrust (.097) AR
(GREEN) 6
18 24-17997A1



SPRING KIT 1
3
19 31-86771



BEARING, Thrust 2

20 43-883473A3



GEAR SET (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III) 1 43-856184A1
20 43-856186A1



GEAR SET (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III) 1

20 43-883479A3



GEAR SET (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III) 1 43-856188A1
21 31-86768A2



BEARING ASSEMBLY, Thrust 1

22 GEARKIT



CLUTCH ASSEMBLY 1 52-807375A2 (Refer to Service Bulletin 2001-17 for replacement parts)
23 24-93505


525-24-93505
SPRING 2

24 45-812773T


525-45-812773T02
DRIVESHAFT 1

25 23-86770


525-23-86770
COLLAR 1

26 97351

700-12920
525-97351
KEEPER 2
3
27 19-824928001


525-19-824928001
PLUG 1 19-32297
28 12-861854


525-12-861854
WASHER 4 12-91964
29 11-35053


525-11-35053
NUT, (.437-20) 4

30 808006


525-808006
INSERT, Trim Adjustment 1

31 8M2001743



PLATE, Ground 1 42276
32 10-807754



SCREW, (#10-24 x .38) 1

- 26-16709A2

700-87480
525-26-16709A2
SEAL KIT 1
