Bravo One - Serial 0M100001 Thru 0W249999 - Driveshaft Housing And Drive Gears (Standard)

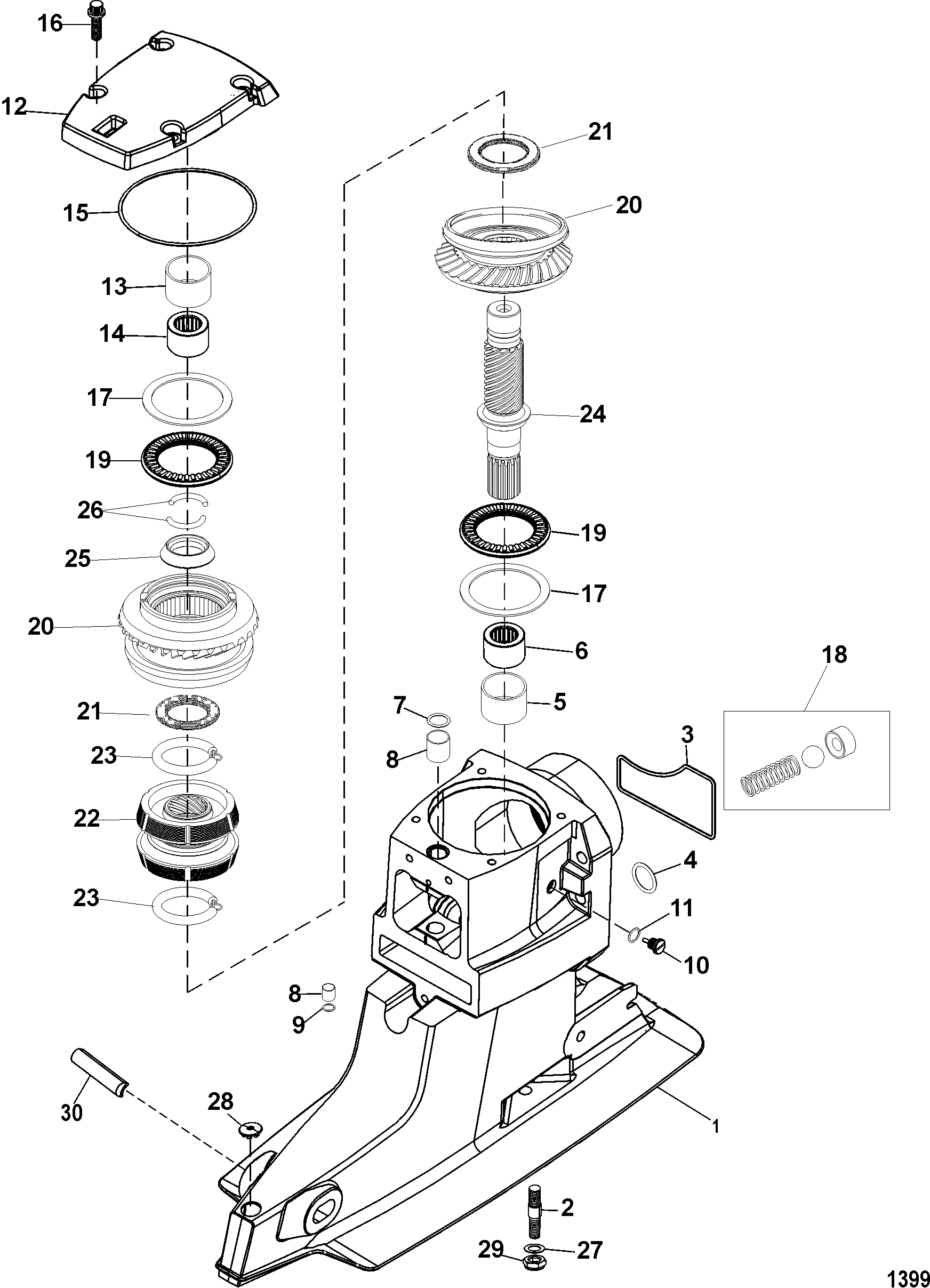

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1589-864571A72



HOUSING ASSEMBLY, Driveshaft 1 1589-8868H72
2 16-579203



STUD, (.437-14/.437-20 x 2.060) 4

3 16755Q1



SEAL 1
17
4 25-457101



O-RING, (1.424 x .103) 1 25-45710 17
5 31-861791



RACE 1

6 31-87156



BEARING ASSEMBLY, Roller 1

7 25-62705



O-RING 1
17
8 23-861209A1



BUSHING KIT 1

9 26-127091



SEAL 1
17
10 22-8M0058389



FITTING KIT, Magnetic, Plug Fill/Drain 1 22-67892A1
11 12-191833



WASHER 1 12-191832 17
12 92068A12



COVER ASSEMBLY 1

13 31-861791



RACE 1

14 31-87156



BEARING ASSEMBLY, Roller 1

15 25-97387



O-RING 1
17
16 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4

17 23-864596058



SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing A/R

17 23-864596059



SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing A/R

17 23-864596060



SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing A/R

17 23-864596061



SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing A/R

17 23-864596062



SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing A/R

17 23-864596063



SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing A/R

17 23-864596064



SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing A/R

17 23-864596065



SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing A/R

17 23-864596066



SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing A/R

18 24-17997A1



SPRING KIT 1
17
19 31-861787



BEARING ASSEMBLY 2

20 43-883473A2



GEAR SET, (32/27) 1
(SEE STERNDRIVE UNIT CHART FOR APPLICATION)
20 43-883476A2



GEAR SET, (29/27) 1
(SEE STERNDRIVE UNIT CHART FOR APPLICATION)
20 43-883479A2



GEAR SET, (30/23) 1
(SEE STERNDRIVE UNIT CHART FOR APPLICATION)
21 31-861792



BEARING ASSEMBLY 2

22 52-865344A01



CLUTCH ASSEMBLY 1 52-861781A1
23 24-93505



SPRING 2

24 45-812773T



DRIVESHAFT 1

25 23-86770



COLLAR 1

26 97351



KEEPER 2
17
27 12-861854



WASHER, (.453 x .750 x .032) Stainless Steel 4

28 19-824928001



PLUG, Rubber 1 19-824928
29 11-35053



NUT, (.437-20) 4
30 808006



INSERT, Trim Adjustment 1
- 26-16709A2



SEAL KIT 1
