Bravo One - Serial 0F730000 Thru 0M100000 - Gear Housing (Bravo II)

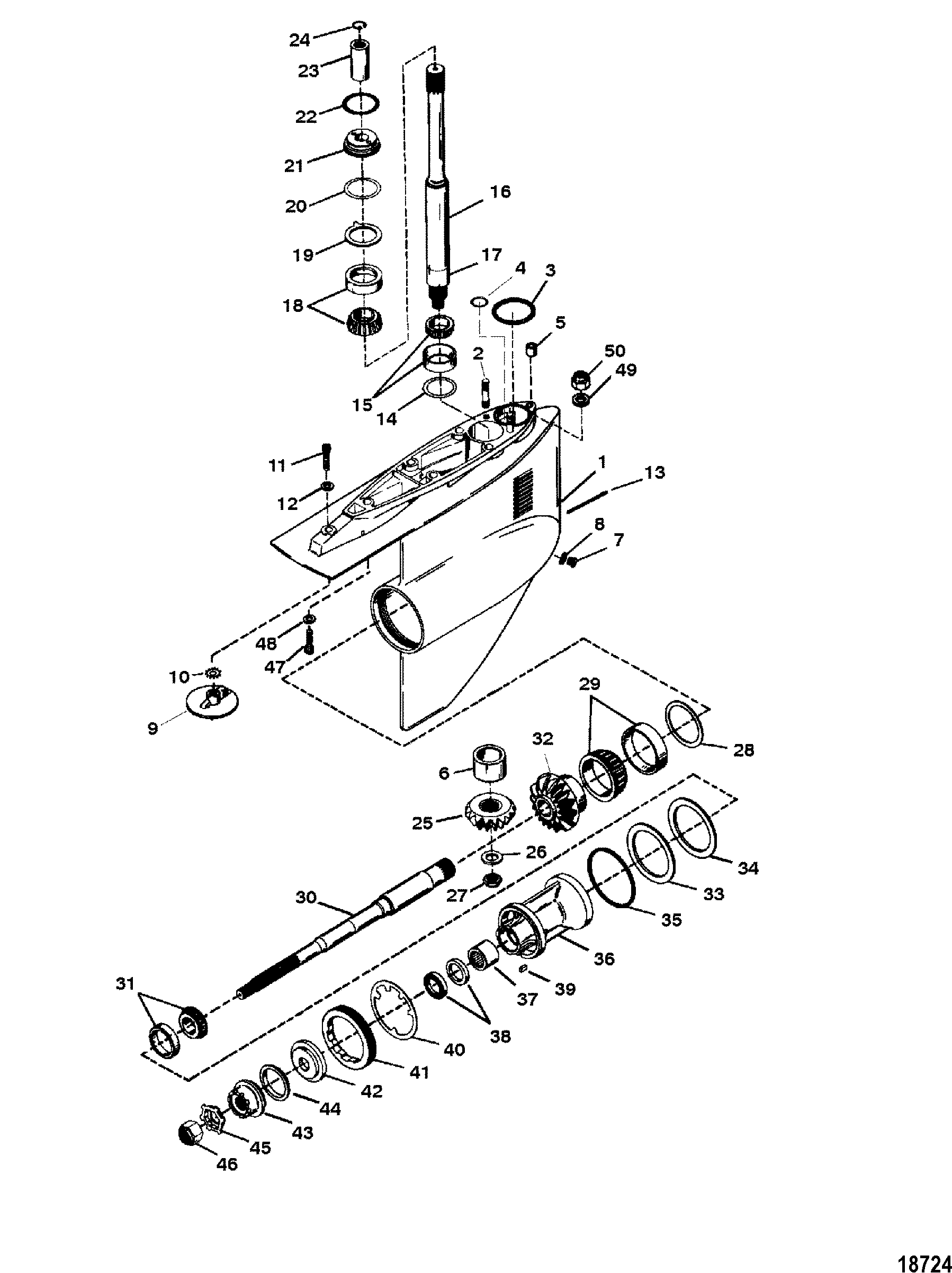

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1641-8294A19



GEAR HOUSING ASSEMBLY (1.50:1 - 1.65:1 Ratio) 1

- 1641-8294A16



GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio) 1

1 1641-8294A14



GEAR HOUSING ASSEMBLY 1

2 16-579203



STUD, (.437-14/.437-20 x 2.060) 2

3 25-33465



O-RING 1
4
4 26-455771



SEAL 1
4
5 26-805344



SEAL, (.625 Outside Diameter) 1

6 31-86754T



BEARING, Roller 1 31-86754
7 22-8M0058389



FITTING KIT, Magnetic, Plug Fill/Drain 2 22-67892A1
8 12-191833



WASHER, Fiber 1 12-19183 4
9 76214Q5



ANODE KIT 1 76214A5
10 13-806210



LOCKWASHER, (.437) 1

11 10-90084


525-10-90084 SCREW, (.437-14 x 1.500) 1

12 12-861854



WASHER 1 12-91964
13 23-850186



TUBE 1
This Part is No Longer Available
14 15-92914A1



SHIM KIT AR
6
15 31-99328A1



BEARING ASSEMBLY, Tapered Roller 1 31-66668A1
16 45-888434A1



DRIVESHAFT ASSEMBLY 1 45-812561A2
17 31-815901



RACE, Bearing 1

18 31-86748A1



BEARING ASSEMBLY, Tapered Roller 1

19 14-86739



TAB WASHER 1

20 15-86749A1



SHIM KIT AR
6
21 23-92916



SPACER 1

22 25-20826

700-82280 525-25-20826 O-RING, (2.230 x .139) 1
4
23 88243A3



COUPLING ASSEMBLY 1

24 53-88242



RING, Retaining 1

25 43-41656T



GEAR, Pinion (1.81:1 - 2.00:1 - 2.20:1 Ratio) 1 43-41656 (16 TEETH)
25 43-827304T



GEAR, Pinion (1.50:1 - 1.65:1 Ratio) 1 43-827304 (18 TEETH)
26 12-86746



WASHER 1

27 11-20739



NUT, (.750-16) 1

28 15-55499A1



SHIM ASSEMBLY AR
6
29 31-54038A1



BEARING ASSEMBLY, Tapered Roller 1

30 44-62820T1



PROPELLER SHAFT 1 44-62820
31 31-54036A1



BEARING ASSEMBLY, Tapered Roller 1

32 43-41657T



GEAR, DRIVE (1.81:1 - 2.00:1 - 2.20:1 Ratio) 1
(27 TEETH)
32 43-827303



GEAR, DRIVE (1.50:1 - 1.65:1 Ratio) 1
(25 TEETH)
33 860323



RING, Thrust 1

34 23-66093T



RING, Load 1

35 25-34821



O-RING 1
4
36 863913A04



CARRIER ASSEMBLY, Bearing 1 62813A4
37 31-54042T



BEARING, Roller 1

38 26-814242



SEAL, Oil, Fish Line Cutter 1

38 26-821092



SEAL, Oil 1
4
39 28-30281



KEY 1

40 14-54167



TAB WASHER 1

41 54163



RETAINER 1

42 55074T



THRUST HUB 1

43 12-55073A2



WASHER ASSEMBLY 1

44 12-55072



WASHER 1

45 14-34817



TAB WASHER 1

46 11-82671127



NUT, (1.0-14) 1 11-54034
47 10-90085



SCREW, (.4375-14 x 2.75) 1

48 13-47659



LOCKWASHER, (.437) 1

49 12-861854



WASHER 2 12-91964
50 11-35053



NUT, (.437-20) 2

- 26-76868A04



SEAL KIT 1 26-76868A2
