Bravo One - Serial 0F730000 Thru 0M100000 - Gear Housing (Bravo I)

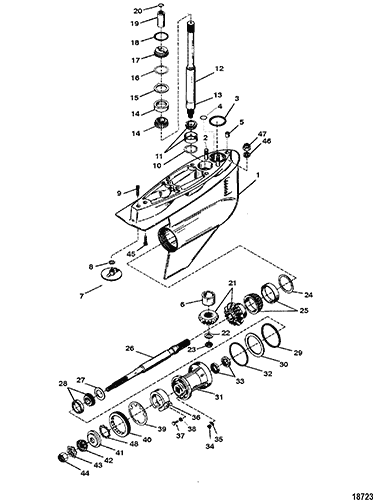

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1656-8866A63



GEAR HOUSING ASSEMBLY, Complete 1 1656-8866A15 (STANDARD)
- 1656-8866A55



GEAR HOUSING ASSEMBLY, Complete 1
(BRAVO I PERFORMANCE)
1 1656-8866A64



GEAR HOUSING ASSEMBLY1 1656-8866A17 (STANDARD)
1 1656-8866A54



GEAR HOUSING ASSEMBLY 1
(BRAVO I PERFORMANCE)
2 16-579203



STUD, (.437-14/.437-20 x 2.060) 2

3 25-33465



O-RING 1
4
4 26-455771



SEAL 1
4
5 26-805344



SEAL, (.625 Outside Diameter) 1

6 31-86754T



BEARING, Roller 1 31-86754
7 76214Q5



ANODE KIT 1 76214A5
8 13-806210



LOCKWASHER, (.437) 1

9 10-806327



SCREW, (.437-14 x 1.750) 1

10 15-92914A1



SHIM KIT AR
6
11 31-99328A1



BEARING ASSEMBLY, Tapered Roller 1 31-66668A1
12 45-858517A3



DRIVESHAFT ASSEMBLY 1 45-41629A2
13 31-815901



RACE, Bearing 1

14 31-86748A1



BEARING ASSEMBLY, Tapered Roller 1

15 14-86739



TAB WASHER 1

16 15-86749A1



SHIM KIT AR
6
17 23-92916



SPACER 1

18 25-20826

700-82280 525-25-20826 O-RING, (2.230 x .139) 1
4
19 88243A3



COUPLING ASSEMBLY 1

20 53-88242



RING, Retaining 1

21 43-14063A1



GEAR SET, (15/19) 1

22 12-86746



WASHER 1

23 11-20739



NUT, (.750-16) 1

24 15-87157A1



SHIM KIT AR
6
25 31-86752A1



BEARING ASSEMBLY, Tapered Roller 1

26 44-41630T



PROPELLER SHAFT 1

27 12-90886



WASHER 1

28 31-99328A1



BEARING ASSEMBLY, Tapered Roller 1 31-66668A1
29 67440T



LOAD RING 1

30 12-42256



THRUST WASHER, (.105 Inch Thick) 1

31 41641A8



CARRIER ASSEMBLY, Bearing 1

32 25-31534



O-RING 1
4
33 26-76868



SEAL 2
4
34 22-8M0058389



FITTING KIT, Magnetic, Plug Fill/Drain 1 22-67892A1
35 12-191833



WASHER, Fiber 1 12-19183 4
36 806188Q01



ANODE ASSEMBLY 1 806188A1
37 10-806290



SCREW, (#10-32 x .625) 2

38 13-69432

700-21491 525-13-69432 LOCKWASHER, External (#10)
2
39 14-18323



TAB WASHER 1

40 8M2011027



RETAINER 1 79448
41 12-835467Q01

700-21301
THRUST HUB 1 12-8354671
42 12-31211Q03



WASHER, Splined 1 12-31211A2
43 14-816629Q

700-21200
TAB WASHER 1 14-816629
44 11-52707Q1



PROP NUT 1 11-827614
45 10-90084


525-10-90084 SCREW, (.437-14 x 1.500) 1

46 12-861854



WASHER 2 12-91964
47 11-35053



NUT, (.437-20) 2

48 13-423511



LOCKWASHER, Toothed 1

- 26-76868A04



SEAL KIT - 26-76868A2
