5.7L EFI (2 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Starter Motor

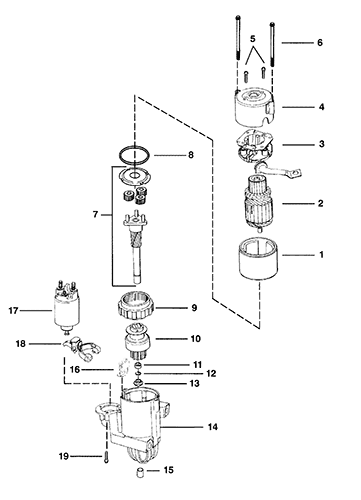

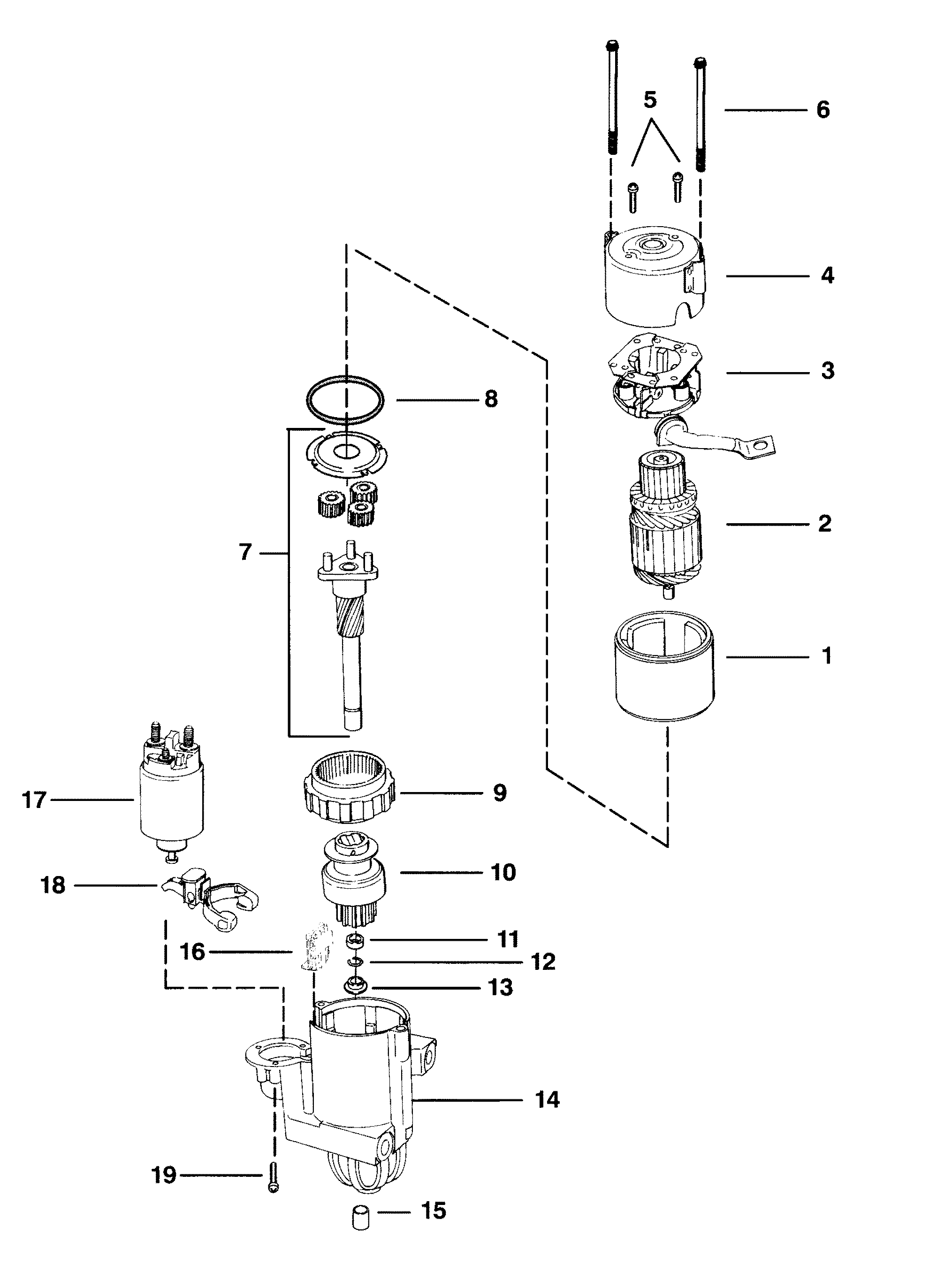

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1         STARTER MOTOR 1 50-806964A3
2 NSS         NOT SOLD SEPARATE, ARMATURE 1
This Part is not sold separately 1
3 NSS         NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING 1
This Part is not sold separately 1
4 NSS         NOT SOLD SEPARATE, FRAME 1
This Part is not sold separately 1
5 NSS         NOT SOLD SEPARATE, SCREW 2
This Part is not sold separately 1
6 NSS         NOT SOLD SEPARATE, THRU BOLT 2
This Part is not sold separately 1
7 NSS         NOT SOLD SEPARATE, SHAFT AND GEAR 1
This Part is not sold separately 1
8 NSS         NOT SOLD SEPARATE, GASKET 1
This Part is not sold separately 1
9 NSS         NOT SOLD SEPARATE, GEAR 1
This Part is not sold separately 1
10 NSS         NOT SOLD SEPARATE, DRIVE 1
This Part is not sold separately 1
11 33291         COLLAR 1

12 53-33290         RETAINING RING 1

13 NSS         NOT SOLD SEPARATE, THRUST COLLAR 1
This Part is not sold separately 1
14 809459         DRIVE HOUSING 1   This Part is No Longer Available
15 23-814476         BUSHING 1   This Part is No Longer Available
16 NSS         NOT SOLD SEPARATE, GROMMET 1
This Part is not sold separately 1
17 809463A1   676-9-15125 700-72450   SOLENOID 1

18 NSS         NOT SOLD SEPARATE, LEVER 1
This Part is not sold separately 1
19 NSS         NOT SOLD SEPARATE, SCREW 3
This Part is not sold separately 1
