5.7L CARB Alpha-Bravo - Serial 0W310000 Thru 0W649999 - Electrical Components

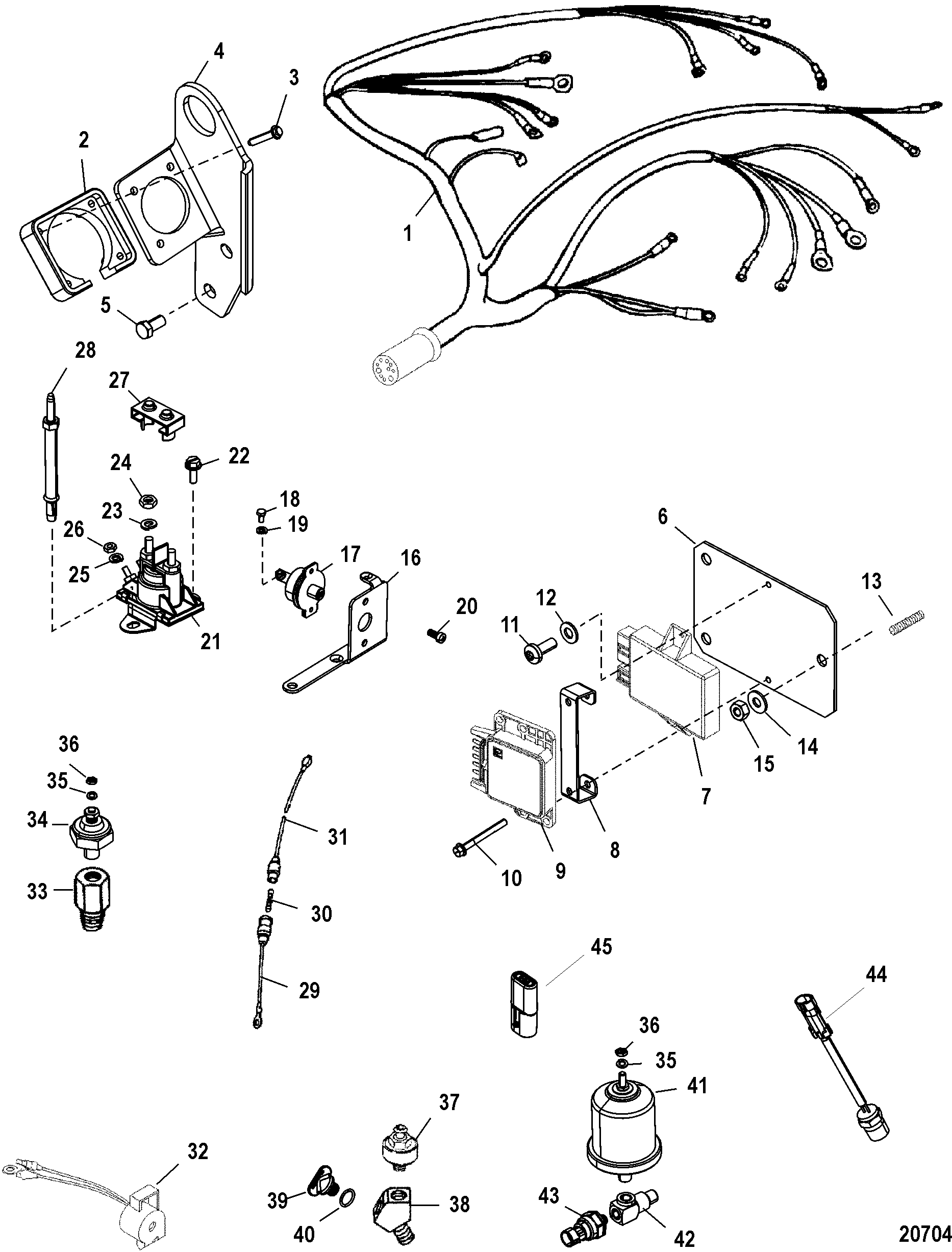

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 84-862575T04



HARNESS ASSEMBLY, Wiring 1
(5.0L Bravo/5.7L Alpha and Bravo)
1 84-862163T04



HARNESS ASSEMBLY, Wiring 1
(5.0L Alpha)
2 26079A2



PLATE KIT, Wire Harness Mount 1

3 10-15001



SCREW, (#8-16 x .875) 3

4 865480T



BRACKET, Harness Mounting/Lifting Eye 1 807453T
5 10-98261



SCREW, (.375-16 x .750) 2

6 22-8053281



FITTING, Elbow (90 Degree - .125) 1

6 861516



BRACKET 1

7 861459T02



ICM MODULE, Ignition Control Module 1 861459T1 (5.0L Alpha)
7 861460T02



ICM MODULE, Ignition Control Module 1 861460T1 (5.0L Bravo)
7 861253T02



ICM MODULE, Ignition Control Module 1 861253T1 (5.7L Alpha)
7 861254T02



ICM MODULE, Ignition Control Module 1 861254T1 (5.7L Bravo)
8 861517



BRACKET 1
(5.0L Bravo)(5.7L Alpha/Bravo)
9 806611T



MODULE, Knock Control 1
(5.0L Bravo)(5.7L Alpha/Bravo)
10 10-41408



SCREW, (#10-32 x 1.50) 2
(5.0L Bravo)(5.7L Alpha/Bravo)
11 10-861520



SCREW, (#10-32 x .500) 2
(5.0 L Alpha)
12 12-89302



WASHER, (.203 x .406 x .040) 2
(5.0 L Alpha)
13 10-24323



SET SCREW, (.250-20 x 1.25) 3

14 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

15 11-64015



NUT, (.250-20) 3

16 899719T01



BRACKET, Electrical 1 805368T
17 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-806950
18 10-68513



SCREW, (#10-32 x .375) Stainless Steel 2

19 13-26996



LOCKWASHER, (#10) Stainless Steel 2

20 10-57583



SCREW, (#8-32 x .375) 2

21 89-96158T



SOLENOID 1

22 10-805564



SCREW, (.250-20 x .750) 3
(Alpha)
22 10-805564



SCREW, (.250-20 x .750) 2
(Bravo)
23 13-26992



LOCKWASHER, (.250) Stainless Steel 2

24 11-94330



NUT, (.250-20) Brass 2

25 13-26995



LOCKWASHER, (#8) Stainless Steel 2

26 11-26419



NUT, (#8-32) Brass 2

27 85-97861



INSULATOR 1

28 16-805459



STUD, Mercathode Mounting 1
(Bravo)
29 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1
(Bravo)
30 88-79091



FUSE, 20 Ampere 1
(Bravo)
31 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1
(Bravo)
32 816492A6



ALARM KIT 1

33 22-32974



FITTING, (.125-27) Adaptor 1

34 87-805605A1



SWITCH ASSEMBLY 1

35 13-26996



LOCKWASHER, (#10) Stainless Steel 2

36 11-68219



NUT, (#10-32) Stainless Steel 2

37 806612T



SENSOR, Knock 1

38 22-8067051



FITTING, Dual 1

39 22-806608A02



PLUG KIT, (.500-13) Royal Blue 1 22-806608A1 (5.0L Alpha)
40 25-62706



O-RING, (.426 x .070) 1
(5.0L Alpha)
41 8M0068784



SENDER ASSEMBLY 1 87-815425T
41 37293T



SENDER ASSEMBLY OPT
(Dual Station)
42 22-864669



FITTING 1

43 87-864252



SWITCH, Oil Pressure 1

44 87-866089



THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start 1

45 83-865913A01



DIODE ASSEMBLY 1
