5.7L CARB Alpha-Bravo - Serial 0W300755 Thru 0W309999 - Carburetor and Throttle Linkage

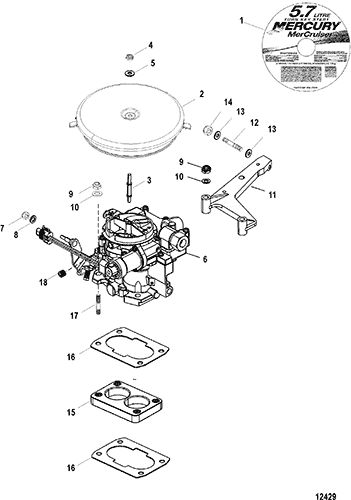

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M2018264



DECAL, Carburetor Cover 1 37-865689 (5.0L)
1 8M2018263



DECAL, Carburetor Cover 1 37-865690 (5.7L)
2 863200



FLAME ARRESTOR 1

3 16-805295



STUD, (.250-20/.250-28 x Special) 1

4 11-8267139



NUT, (.250-28) 1

5 12-86400



WASHER 1

6 3310-866142A04



CARBURETOR 1 3310-866142A03 (5.0L)
6 3310-866143A03



CARBURETOR 1
(5.7L)
7 11-8267089



NUT, (.250-28) 1

8 12-29245

700-21490
WASHER, (.281 x .500 x .060) Stainless Steel 2

9 11-862902

700-19354
NUT, (.312-24) 4

10 12-20084

700-21664
WASHER, (.328 x .562 x .062) 2

10 12-26825



WASHER, (.328 x .750 x .06) 2

11 805489T



BRACKET 1

12 16-38525



STUD 1

13 12-24664



WASHER, (M4 x 20) 2

14 11-8267139



NUT, (.250-28) 1

15 807726A2



ADAPTOR 1

16 27-866027



GASKET 2
2
17 16-807849



STUD, (.312-18/.312-24 x 3.380) 2

17 16-65868



STUD, (.312-18/.312-24 x 2.120) 2
18 22-56800



PLUG, Pipe (.0625-27) 1
