5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Exhaust Manifold And Exhaust Elbow (Bravo)

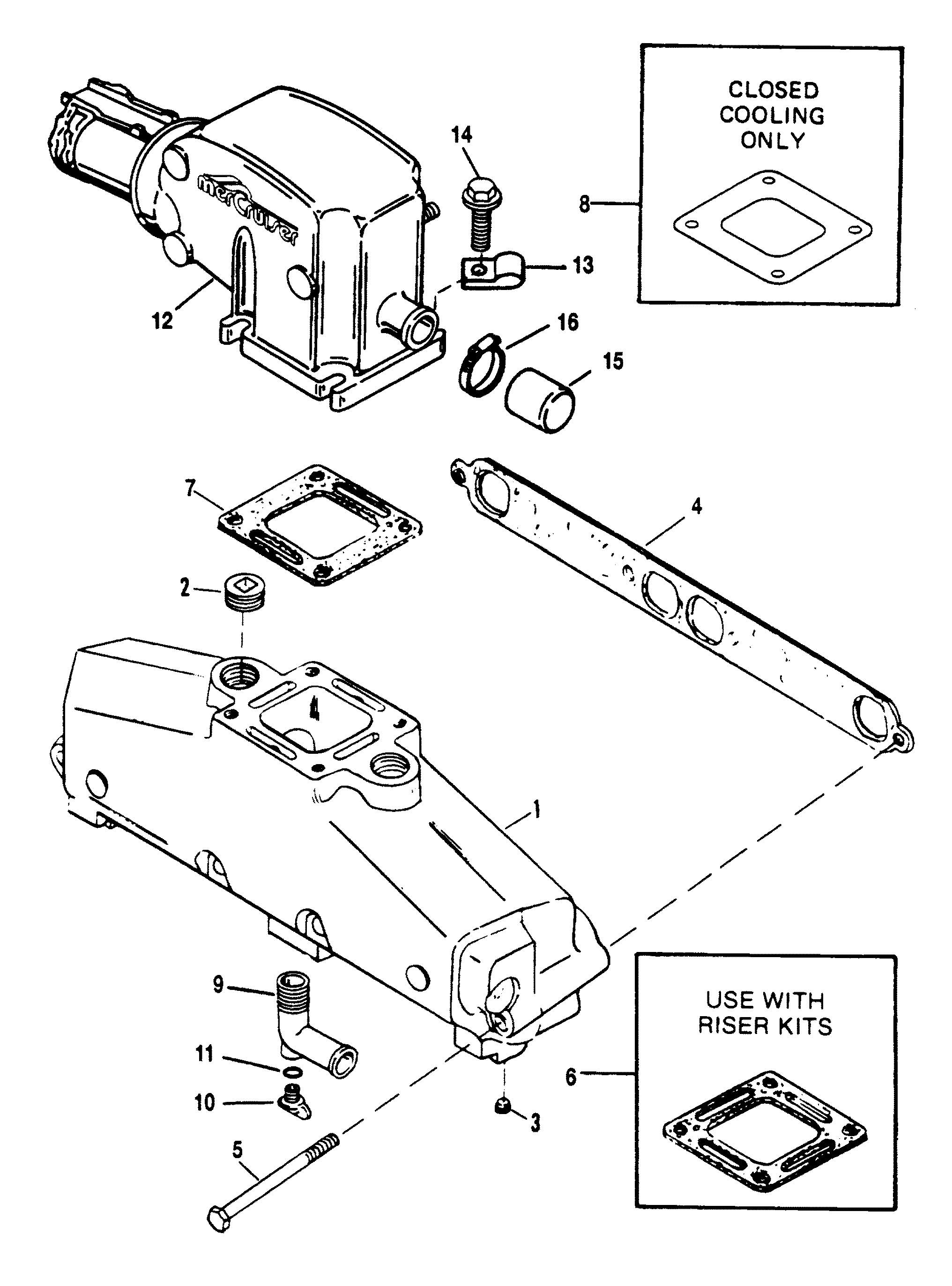

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15


654-7114A, 654-7114 EXHAUST MANIFOLD ASSEMBLY 2 87114A19
2 22-41622
676-9-41205
700-21892

PLUG AR 22-33198A1
3 22-36382

700-21887

PIPE PLUG 4

4 27-33395
676-9-61401 700-31100
GASKET 2
2
5 10-53728

700-21745

SCREW (4-5/8") 8

6 27-863726
676-9-61414


GASKET (USE WITH RISER KITS) 2 27-818832
7 27-863724
676-9-61413


GASKET (STANDARD COOLING) 2 27-41813 2
8 27-8637251



GASKET (CLOSED COOLING) 2 27-41811 2
9 22-862210A01
676-9-41206
700-13991

DRAIN ELBOW 2 22-806926A1
10 22-806608A02

700-13992

DRAIN PLUG 2 22-806608A1
11 25-32509



QUAD RING 2 25-806609
12 816900A5



EXHAUST ELBOW ASSEMBLY (PORT) 1
This Part is No Longer Available Click here for service bulletin
12 816900A9



EXHAUST ELBOW ASSEMBLY (STARBOARD) 1
This Part is No Longer Available Click here for service bulletin
13 54-73668



J-CLIP (PORT) 1

14 10-98534



SCREW (2-1/4") 2

14 10-865982005



SCREW (1") 6 10-12244
15 19-805727001



RUBBER CAP 2 19-805727
16 54-815504220



CLAMP 2

- 807476A7



RISER EXTENSION KIT (3") 1 93320A7 EACH KIT CONTAINS 2 RISERS
- 807477A5

700-50600

RISER EXTENSION KIT (6") 1 93322A5 EACH KIT CONTAINS 2 RISERS
- 27-75611A88

700-39017
ENGINE GASKET SET - Overhaul 1
