5.0L EFI GM 305 V-8 1999-2001 - Serial 0L331631 Thru 0M299999 - Electrical Components

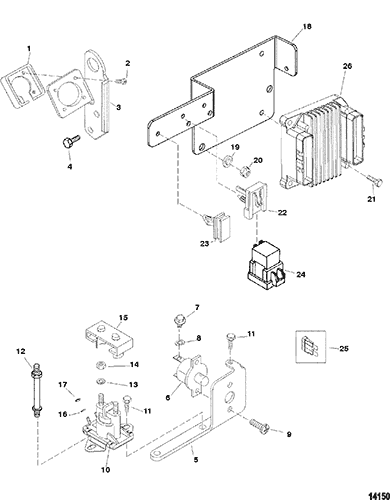

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 26079A2



PLATE KIT, Wire Harness Mount 1

2 10-15001



SCREW, (#8-16 x .875) 4

3 865480T



BRACKET, Harness Mounting/Lifting Eye 1 807453T
4 10-98261



SCREW, (.375-16 x .750) 2

5 899719T01



BRACKET, Electrical 1 805368T
6 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-806950
7 10-68513



SCREW, (#10-32 x .375) Stainless Steel 2

8 13-26996



LOCKWASHER, (#10) Stainless Steel 2

9 10-57583



SCREW, (#8-32 x .375) 2

10 89-96158T 620-3387M 676-9-15112 700-72400
SOLENOID 1

11 10-805564



SCREW, (.250-20 x .750) 2

12 16-805459



STUD, Mercathode Mounting 1

13 13-26992



LOCKWASHER, (.250) Stainless Steel 2

14 11-94330



NUT, (.250-20) Brass 2

15 85-97861



INSULATOR 1

16 13-26995



LOCKWASHER, (#8) Stainless Steel 2

17 11-26419



NUT, (#8-32) Brass 2

18 861714T



BRACKET, ECU Mounting 1

19 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

20 11-64015



NUT, (.250-20) 3

21 10-28636



SCREW, (.250-20 x .750) 3

22 86-865205



CLIP 2 54-804351
23 54-804352



CLIP 1

24 86-865202T



RELAY 2 807057T
25 88-804641



FUSE, Micro - Red - 10 Ampere 2

25 88-804642



FUSE, Micro - 15 Ampere 1
No longer made, limited availability
26 892799A01



ECM, Engine Control Module 1 861925T3 (5.0L) 1
26 892798A01



ECM, Engine Control Module 1 861926T3 (5.7L) 1
