5.0L EFI GM 305 V-8 1998 - Serial 0L012052 Thru 0L339999 - Closed Cooling System

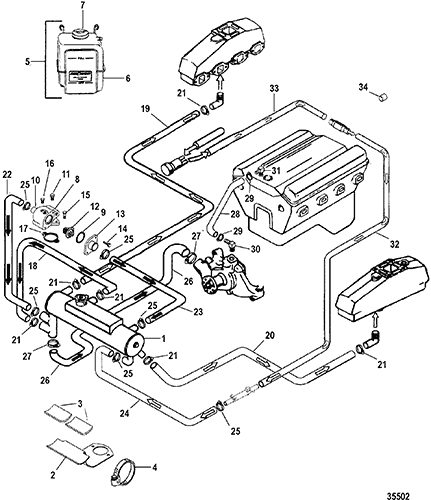

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860234A1         HEAT EXCHANGER 1

NS 8M0036623         COVER, Heat Exchanger End 2 814875
NS 8M0036987         GASKET, End Cover 2 27-814876
NS 10-814877         BOLT 2

NS 8M0039163         O-RING, Special 2 25-814878
NS 36-8148791         CAP 1

2 860326A1         BRACKET ASSEMBLY, Heat Exchanger 1

3 18431         PAD 2

4 54-815504388         CLAMP, Worm Gear 2

5 71587A10         RECOVERY KIT, Coolant 1
COOLANT RECOVERY SYSTEM IS SOLD AS A COMPLETE KIT ONLY.
- 32-774572         HOSE, (48.00 Inches Bulk) 1

6 71587A11         BOTTLE, Plastic 1

7 72058         CAP 1

8 861188A1         HOUSING ASSEMBLY, Thermostat 1

9 25-8071341         SEAL 1 25-807134 2
10 23-52020         SLEEVE, Hose 1   This Part is No Longer Available
11 22-32803     700-21894   PLUG, Pipe (.375-18) Brass 1

12 991551         THERMOSTAT 1

13 807075A1         COVER 1

14 10-29198         SCREW AND LOCKWASHER, (.312-18 x .875) 2

15 10-58640         SCREW, (.375-16 x 1.25) 2

16 22-328022         PLUG, Pipe (.125-27) 1 22-328021
17 27-530451         GASKET 2
2
18 32-4285069         HOSE, Transom Plate to Housing 1 32-4285064
19 32-861057         HOSE, Heat Exchanger To Exhaust Manifold 1
(STARBOARD)
20 32-860421         HOSE, Heat Exchanger To Exhaust Manifold 1
(PORT)
21 54-815504220         CLAMP, Worm Gear 6

22 32-860485         HOSE, Thermostat By-Pass 1

23 32-860419         HOSE, Thermostat Housing To Heat Exchanger 1

24 32-860332         HOSE 1

25 54-815504222         CLAMP, Worm Gear (1.98 DIameter) 6

26 32-861059         HOSE 1

27 54-815504232         CLAMP, Worm Gear (2.50 Diameter) 2

28 32-99520         HOSE, Water Pump To Intake Manifold 1 32-860482
29 54-815504212         CLAMP, Worm Gear 2

30 22-860346         FITTING, Elbow (90 Degree) (.750) 1

31 22-808042         FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars) 1

32 32-8600891         HOSE, Molded 1 32-860089
33 32-8080441         HOSE, Molded 1

34 32877         PLUG, Transom Plate Water Inlet Block Off 1

NS 19-8079923         COVER, Hose Clamp End AR
5,3
- 27-861246A05         GASKET SET 1 27-861246A98
