350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Starter Motor And Alternator

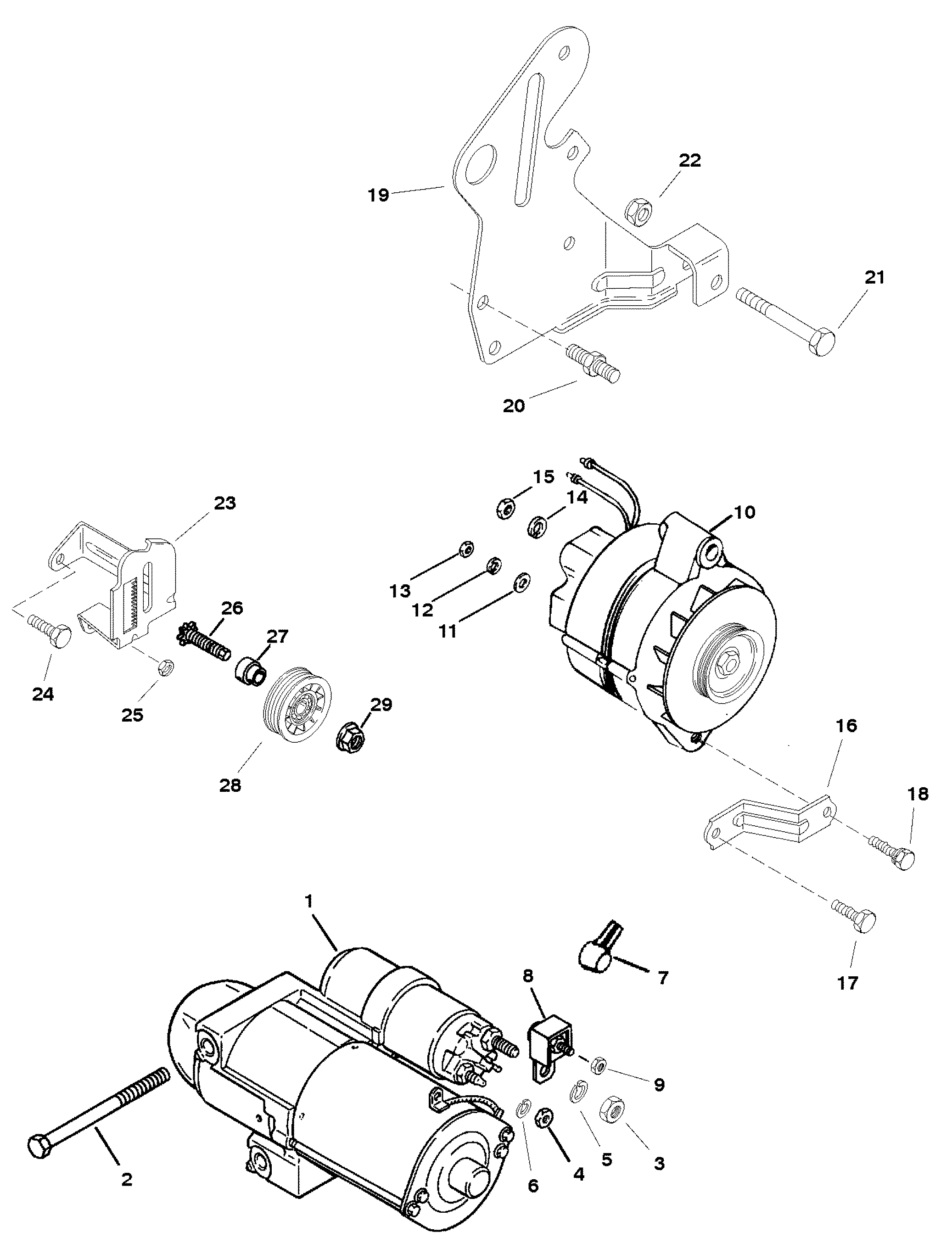

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # SEI # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907   602-10099MD 602-10099HD STARTER MOTOR ASSEMBLY 1 50-806964A3 (SEE "STARTER MOTOR" FOR BREAKDOWN)
2 10-8053432           SCREW (3/8-16 X 4-3/8 IN.) 2
3 11-806949           NUT (M8-1.5) 1
4 11-400211           NUT (M5-0.8) 1
5 13-39107     700-21496     LOCKWASHER (5/16 IN.) 1
6 13-26996           LOCKWASHER (#10) 1
7 85-79695T           BOOT-INSULATOR 1 85-79695
8 88-79023A91   676-9-15510       FUSE (90 AMP.) 1
9 11-21825           NUT (1/4-28) 1
10 807653T   676-9-19104   602-20057   ALTERNATOR ASSEMBLY 1   (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
11 12-96457           WASHER-PHENOLIC 1
12 13-26996           LOCKWASHER (#10) 1
13 11-79989           NUT (#10-24) 1
14 13-26992           LOCKWASHER (1/4 IN.) 1
15 11-94330           NUT (1/4-20) 1
16 807750T           BRACE 1
17 10-98261           SCREW (3/8-16 X 3/4 IN.) 1
18 10-29198           SCREW & LOCKWASHER (5/16-18 X 7/8 IN.) 1
19 860370T           BRACKET-ALTERNATOR/POWER STEERING 1
20 16-860102           STUD 3
21 10-56743           SCREW (3/8-24 X 3-1/8 IN.) 1
22 11-23161           NUT (3/8-24) 1
23 807767T           IDLER BRACKET 1
24 10-98261           SCREW (3/8-16 X 3/4 IN.) 1
25 11-29250           NUT (5/16-24) 1
26 43-8183812           PINION STUD 1
27 865193           BUSHING 1 818380
28 807757T           PULLEY 1
29 11-859135   676-9-78116       NUT (7/16-20) 1 11-817618
