350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Starter Motor

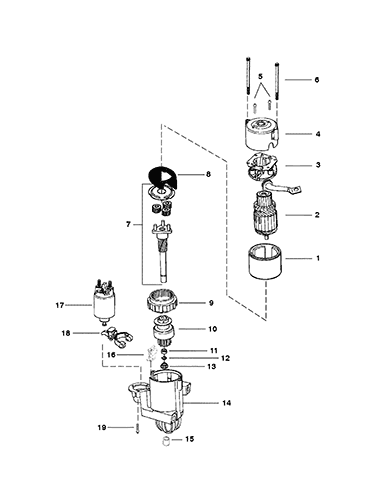

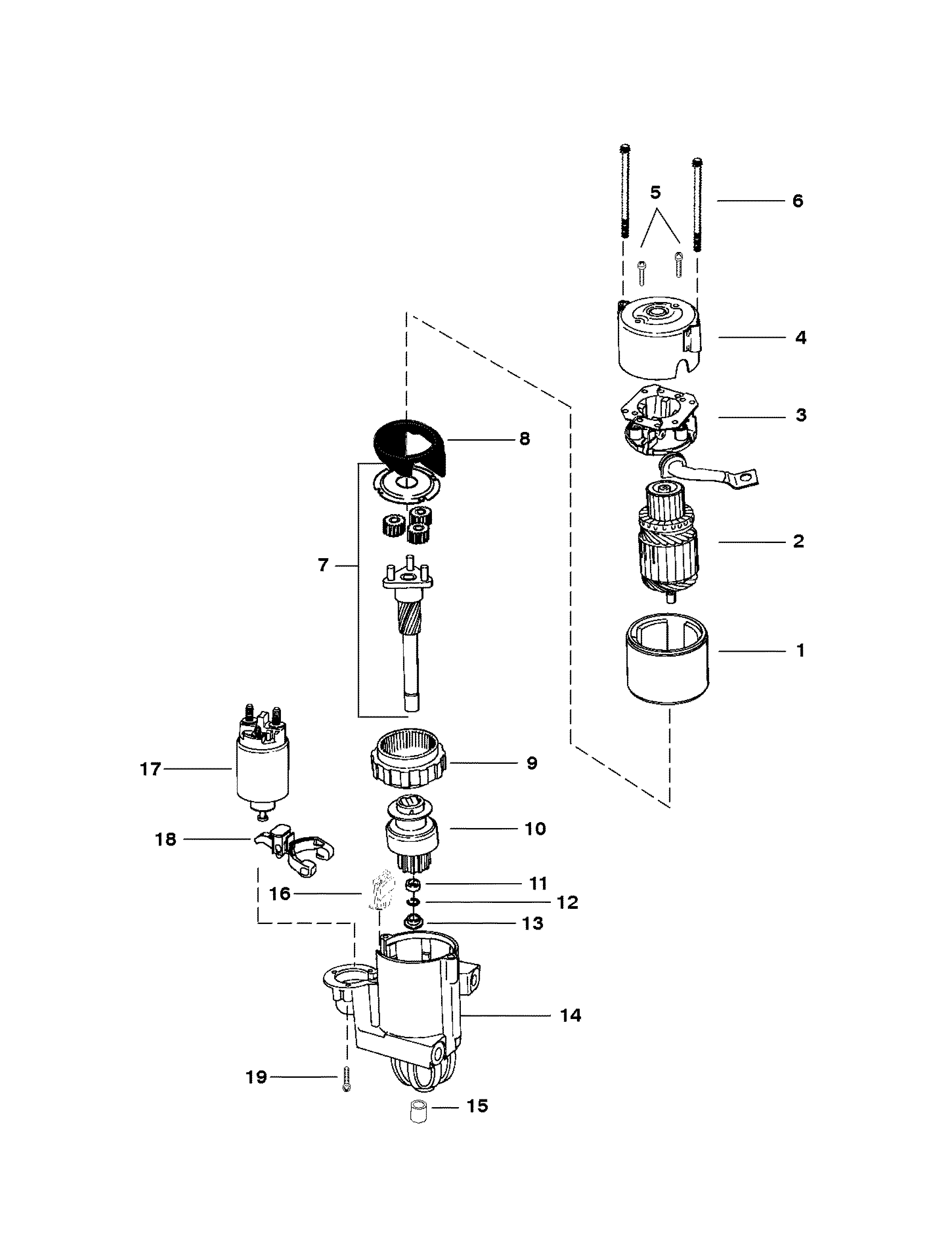

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # SEI # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907   602-10099MD 602-10099HD STARTER MOTOR 1 50-806964A3
2 NSS           NOT SOLD SEPARATE, ARMATURE 1   This Part is not sold separately 1
3 NSS           NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING 1   This Part is not sold separately  1
4 NSS           NOT SOLD SEPARATE, FRAME 1   This Part is not sold separately  1
5 NSS           NOT SOLD SEPARATE, SCREW 2   This Part is not sold separately 1
6 NSS           NOT SOLD SEPARATE, THRU BOLT 2   This Part is not sold separately  1
7 NSS           NOT SOLD SEPARATE, SHAFT AND GEAR 1   This Part is not sold separately  1
8 NSS           NOT SOLD SEPARATE, GASKET 1   This Part is not sold separately  1
9 NSS           NOT SOLD SEPARATE, GEAR 1   This Part is not sold separately  1
10 NSS           NOT SOLD SEPARATE, DRIVE 1   This Part is not sold separately  1
11 33291           COLLAR 1
12 53-33290           RETAINING RING 1
13 NSS           NOT SOLD SEPARATE, THRUST COLLAR 1   This Part is not sold separately  1
14 809459           DRIVE HOUSING 1   This Part is No Longer Available
15 23-814476           BUSHING 1   This Part is No Longer Available
16 NSS           NOT SOLD SEPARATE, GROMMET 1   This Part is not sold separately  1
17 809463A1   676-9-15125 700-72450     SOLENOID 1
18 NSS           NOT SOLD SEPARATE, LEVER 1   This Part is not sold separately  1
19 NSS           NOT SOLD SEPARATE, SCREW 3   This Part is not sold separately  1
