350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Standard Cooling System

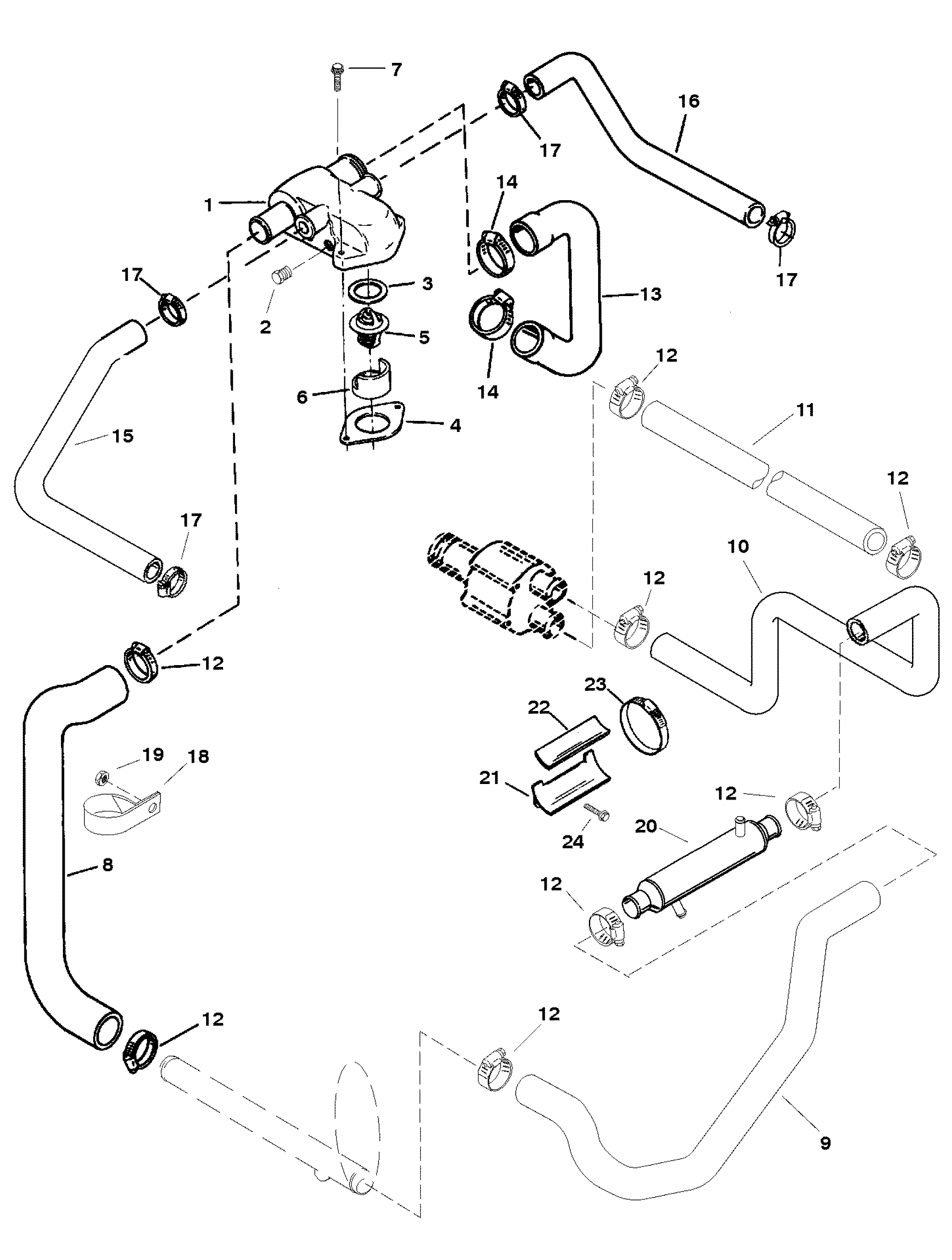

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806235A1         HOUSING ASSEMBLY-THERMOSTAT 1

2 22-32803     700-21894   PLUG-PIPE (3/8 IN.) 2

3 27-806871         GASKET-THERMOSTAT 1
3
4 27-530451         GASKET 1
3
5 807252T2         THERMOSTAT (160 DEG.) 1 8072522
6 23-806922         SLEEVE 1

7 10-98794   676-9-78129 700-28300 525-10-98794 SCREW (3/8-16 X 1 IN.) 2

8 32-808033         HOSE-THERMOSTAT HOUSING TO FUEL COOLER 1

9 32-8600891         HOSE-FUEL COOLER TO POWER STEERING COOLER 1 32-860089
10 32-8080441         HOSE-POWER STEERING COOLER TO SEAWATER PUMP 1

11 32-865672079         HOSE-SEA WATER PUMP TO DRIVE UNIT 1 32-1743579
12 54-815504222         CLAMP-HOSE 8

13 32-861590A05         HOSE-THERMOSTAT HOUSING TO WATER PUMP 1 32-87108
14 54-815504232         CLAMP 2

15 32-860144         HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD 1

16 32-807697         HOSE 1
THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
17 54-815504220         CLAMP-HOSE 4

18 54-47715         CLIP 1

19 11-29250         NUT (5/16-24) 1

20861554T01         COOLER-POWER STEERING OIL 1 807292T
21 805546A2         BRACKET-TRANSMISSION OIL COOLER 1

22 772233         PAD 1

23 54-815504224         CLAMP 1

24 10-816585         SCREW (5/16-18 X 7/8 IN.) 1

- 27-806988A96         GASKET SET-ENGINE OVERHAUL 1   This Part is No Longer Available
