350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Exh. Manifold and Stainless Steel Exhaust Elbow

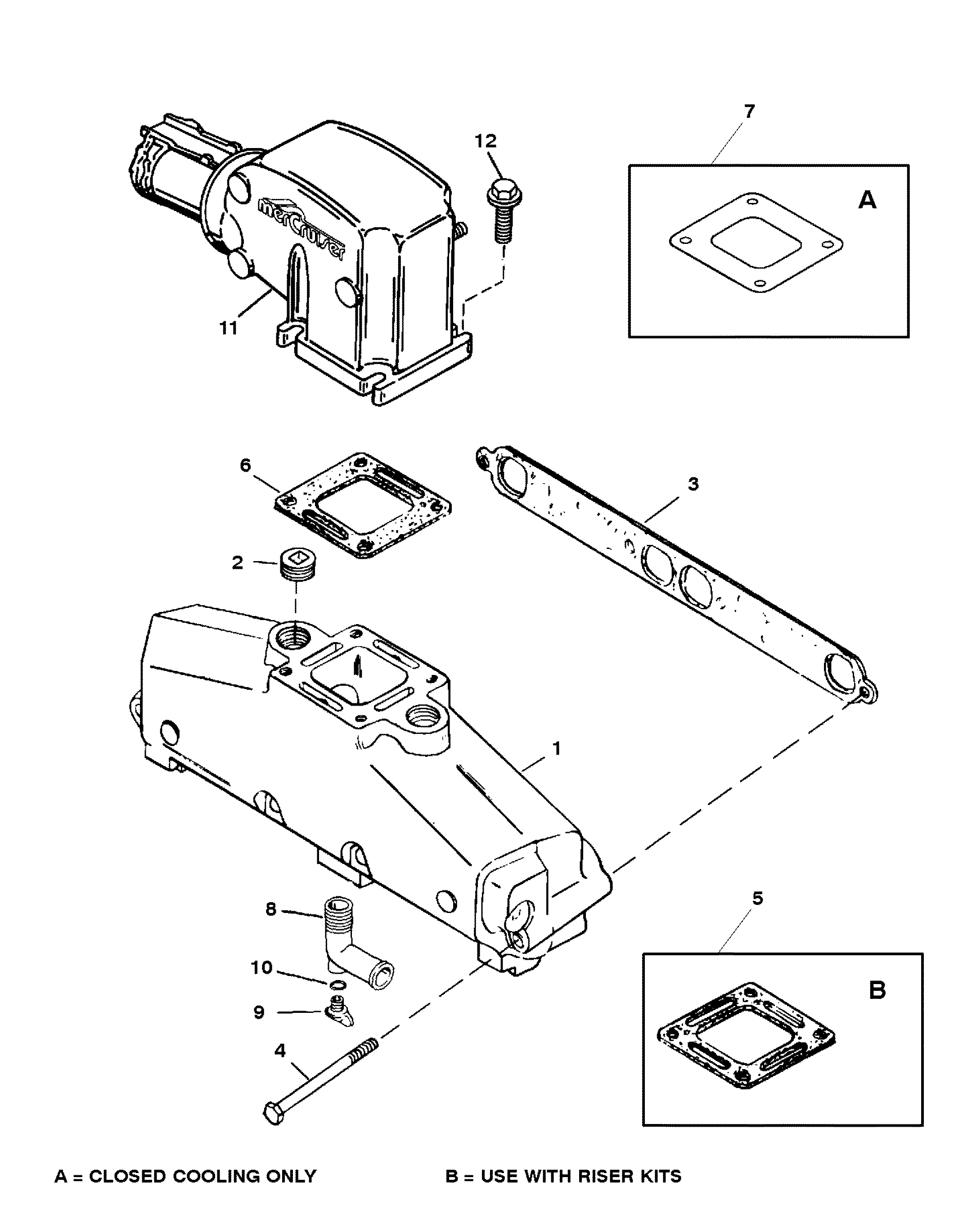

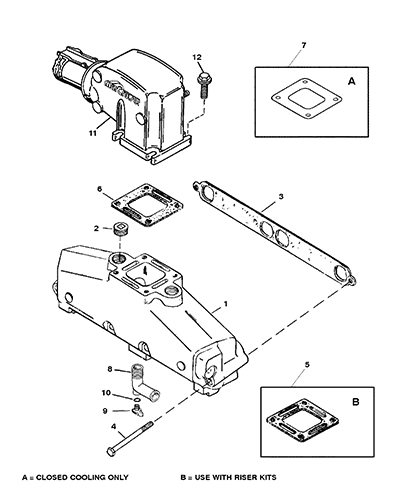

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15         MANIFOLD ASSEMBLY-EXHAUST 1 87114A19 (PORT)
1 860246A15         MANIFOLD ASSEMBLY-EXHAUST 1 87114A30 (STARBOARD)
2 22-41622   676-9-41205 700-21892   PLUG-PIPE (3/4-14) 8 22-33198A1
3 27-33395         GASKET 2
3
4 10-53728         SCREW (3/8-16 X 4-5/8 IN.) 8

5 27-863726         GASKET 2 27-818832 (USE WITH RISER KITS)
6 27-863724         GASKET 2 27-41813 (STANDARD COOLING) 3
7 27-8637251         GASKET 2 27-41811 (CLOSED COOLING)
8 22-862210A01   676-9-41206 700-13991   ELBOW-DRAIN 2 22-806926A1
9 22-806608A02         PLUG-DRAIN 2 22-806608A1
10 25-32509         QUAD RING 2 25-806609 3
11 816900A5         ELBOW ASSEMBLY-EXHAUST 1 816900A11 This Part is No Longer Available¬†(PORT)
11 816900A9         ELBOW ASSEMBLY-EXHAUST 1 816900T This Part is No Longer Available¬†(STARBOARD)
12 10-865982005         SCREW (3/8-16 X 1 IN.) 8 10-12244
- 807476A7         RISER EXTENSION KIT (3,) 1 93320A7 EACH KIT CONTAINS 2 RISERS
- 807477A5         RISER EXTENSION KIT (6,) 1 93322A5 EACH KIT CONTAINS 2 RISERS
- 27-806988A96         GASKET SET-ENGINE OVERHAUL 1 ¬† This Part is No Longer Available
