350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Oil Pan And Oil Pump

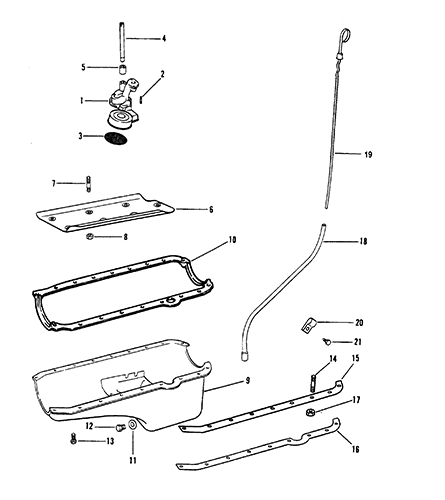

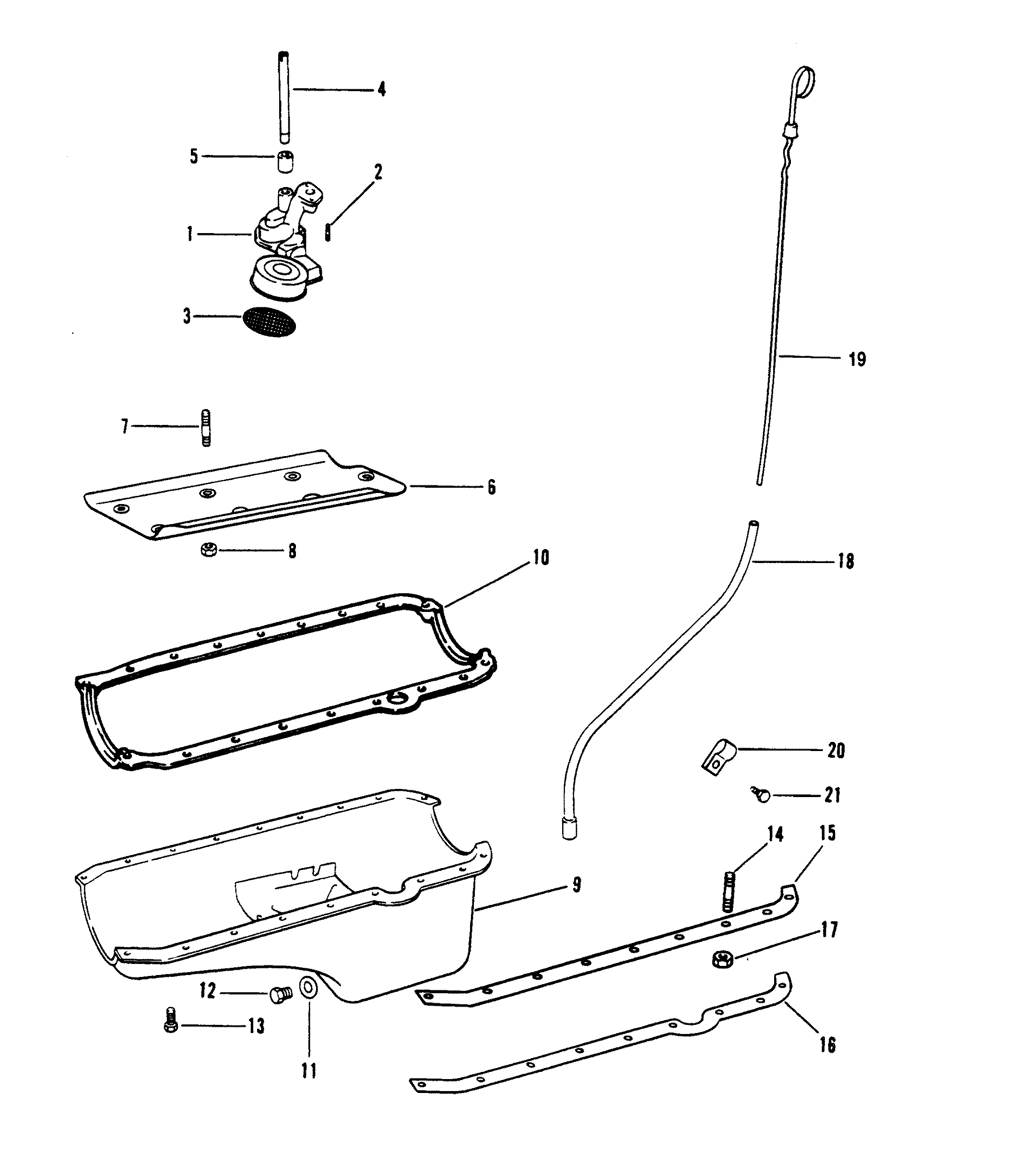

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17617         OIL PUMP 1
1 = CONTENTS OF GASKET SET [27-806988A95]
2 10-17346         BOLT 1

3 35354         SCREEN ASSEMBLY 1 ¬† This Part is No Longer Available¬†No longer made, limited availability
4 36184         SHAFT 1

5 23-36183         RETAINER 1

6 986021         BAFFLE (CYLINDER BLOCK) 1 98602
7 16-54790         STUD 5

8 11-37500         NUT 5

9 809910         OIL PAN 1 14259
10 27-138651   676-9-61504     GASKET 1 27-13865 1
11 27-8M0077608         GASKET 1 27-49955 1
12 10-49956         SCREW 1

13 10-14070         SCREW 14

14 16-11989         STUD 4

15 14257         REINFORCEMENT (PORT) 1

16 14256         REINFORCEMENT (STARBOARD) 1

17 11-11971         NUT 4

18 15296A2         TUBE 1

19 861942T7         DIPSTICK GAUGE 1 15297T
20 54-805625         CLIP 1

21 10-35366         SCREW 1
