350 Mag Alpha GM V-8 1986-1987 - Serial 0A635178 Thru 0B525981 - Oil Pan And Oil Pump

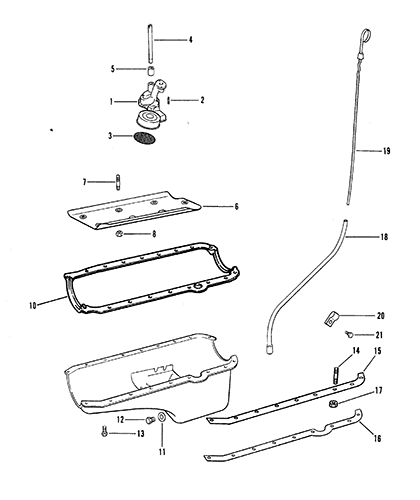

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17617



OIL PUMP 1 35352 4 = [27-75611A86] GASKET SET, ENGINE OVERHAUL
2 NSS



NOT SOLD SEPARATE, BOLT, OIL PUMP TO CYLINDER BLOCK (2") (GM #3892678) 1
This part is not sold separate GASKET SETS AND SEALANTS - REQUIRED FOR COMPLETE OVERHAUL
3 35354



SCREEN ASSEMBLY, OIL PUMP 1
This Part is No Longer Available [92-91601 1] SEALER, RED RTU [WHERE APPLICABLE] No longer made, limited availability
4 36184



SHAFT, OIL PUMP TO DISTRIBUTOR 1
[92-34227 1] PERFECT SEAL [WHERE APPLICABLE]
5 23-36183



RETAINER, OIL PUMP SHAFT 1

6 986021



BAFFLE, OIL PAN (CYLINDER BLOCK) 1 98602
7 16-54790



STUD, OIL PAN BAFFLE 5

8 11-37500



NUT, OIL PAN BAFFLE STUD 5

9 809910



OIL PAN 1 14259
10 27-138651
676-9-61504


GASKET SET - NOT INCLUDED WITH GASKET SET 1 27-13865
11 27-8M0077608



GASKET, DRAIN SCREW 1 27-49955 4
12 10-49956



SCREW, OIL PAN DRAIN 1

13 10-14070



SCREW, OIL PAN 14

14 16-11989



STUD, OIL PAN 4

15 14257



REINFORCEMENT, OIL PAN (PORT) 1

16 14256



REINFORCEMENT, OIL PAN (STARBOARD) 1

17 11-11971



NUT, OIL PAD STUD 4

18 92163A2



TUBE, OIL LEVEL GAUGE 1

19 96418A1



GAUGE, OIL LEVEL (DIPSTICK) 1

20 54-92084



CLIP, OIL LEVEL TUBE 1
This Part is No Longer Available
21 10-98253



SCREW, CLIP TO CYLINDER BLOCK 1
