350 Mag MPI Alpha-Bravo - Serial 0M600000 Thru 0W059999 - Electrical Components

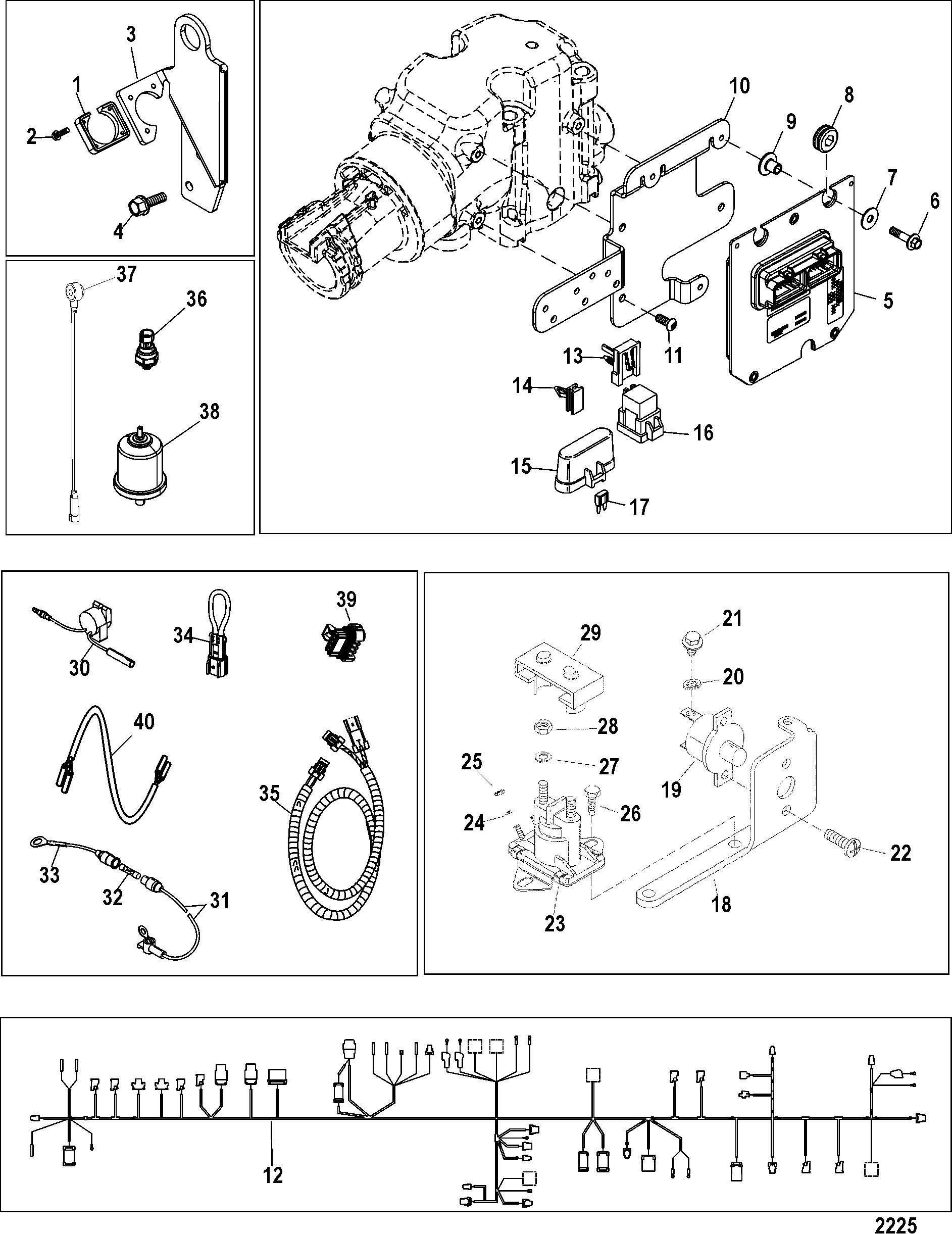

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 26079A2



PLATE KIT, Wire Harness Mount 1

2 10-15001



SCREW, (#8-16 x .875) 4

3 865480T



BRACKET, Harness Mounting/Lifting Eye 1 863440T
4 10-98261



SCREW, (.375-16 x .750) 2

5 865834T03



ECM, Engine Control Module 1 864271T06 (5.0L MPI Alpha)(Standard Cooling) SN# 0W029410 & Below
5 865834T03



ECM, Engine Control Module 1 865834T02 (5.0L MPI Alpha)(Standard Cooling) SN# 0W029411 & Up
5 865002T03



ECM, Engine Control Module 1
(5.0L MPI Alpha)(Closed Cooling) SN# 0W029410 & Below
5 865835T02



ECM, Engine Control Module 1
(5.0L MPI Alpha)(Closed Cooling) SN# 0W029411 & Up
5 864376T06



ECM, Engine Control Module 1 864376T05 (5.0L MPI Bravo)(Standard Cooling) SN# 0W029410 & Below
5 865836T02



ECM, Engine Control Module 1 865836T01 (5.0L MPI Bravo)(Standard Cooling) SN# 0W029411 & Up
5 865003T02



ECM, Engine Control Module 1
(5.0L MPI Bravo)(Closed Cooling) SN# 0W029410 & Below
5 865837T02



ECM, Engine Control Module 1 865837T01 (5.0L MPI Bravo)(Closed Cooling) SN# 0W029411 & Up
5 865838T03



ECM, Engine Control Module 1 864272T06 (350 MAG MPI Alpha)(Standard Cooling) SN# 0W029410 & Below
5 865838T03



ECM, Engine Control Module 1 865838T02 (350 MAG MPI Alpha)(Standard Cooling) SN# 0W029411 & Up
5 865839T02



ECM, Engine Control Module 1 865004T03 (350 MAG MPI Alpha)(Closed Cooling) SN# 0W029410 & Below
5 865839T02



ECM, Engine Control Module 1
(350 MAG MPI Alpha)(Closed Cooling) SN# 0W029411 & Up
5 864377T06



ECM, Engine Control Module 1 864377T05 (350 MAG MPI Bravo)(Standard Cooling) SN# 0W029410 & Below
5 865840T02



ECM, Engine Control Module 1 865840T01 (350 MAG MPI Bravo)(Standard Cooling) SN# 0W029411 & Up
5 865005T03



ECM, Engine Control Module 1 865005T02 (350 MAG MPI Bravo)(Closed Cooling) SN# 0W029410 & Below
5 865841T02



ECM, Engine Control Module 1 865841T01 (350 MAG MPI Bravo)(Closed Cooling) SN# 0W029411 & Up
5 864273T07



ECM, Engine Control Module 1 864273T06 (MX6.2L MPI)(Standard Cooling) SN# 0W029410 & Below
5 865845T02



ECM, Engine Control Module 1 865845T01 (MX6.2L MPI)(Standard Cooling) SN# 0W029411 & Up
5 865008T04



ECM, Engine Control Module 1 865008T03 (MX6.2L MPI)(Closed Cooling) SN# 0W029410 & Below
5 865846T02



ECM, Engine Control Module 1 865846T01 (MX6.2L MPI)(Closed Cooling) SN# 0W029411 & Up
6 10-82130025



SCREW, (M6 x 25) 3

7 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 3

8 25-834985



GROMMET 3

9 23-856954



BUSHING 3

10 863424T



BRACKET, ECM Mount 1

11 10-860008



SCREW, (.250-20 x .625) Torx 3

12 84-865454A01



HARNESS ASSEMBLY 1 84-863433T2 (Alpha and Bravo) SN# 0M999999 & Below
12 84-865454A01



HARNESS ASSEMBLY 1
(Alpha) SN# 0W000000 & Up
12 84-865454T02



HARNESS ASSEMBLY 1
(Bravo) SN# 0W000000 & Up
13 86-865205



CLIP, Relay Mounting 2 54-804351
14 54-804352



CLIP, Fuse Block Mounting 1

15 883562



COVER, Fuse 1

16 86-865202T



RELAY 2 807057T
17 88-832969T20



FUSE, Mini - Yellow - 20 Ampere 3 88-83296920
18 899719T01



BRACKET, Electrical, Electrical Mounting 1 805368T
19 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-806950
20 13-26996



LOCKWASHER, (#10) Stainless Steel 2

21 10-68513



SCREW, (#10-32 x .375) Stainless Steel 2

22 10-57583



SCREW, (#8-32 x .375) 2

23 89-96158T 620-3387M 676-9-15112 700-72400 602-SW101 SOLENOID, Starter 1

24 13-26995



LOCKWASHER, (#8) Stainless Steel 2

25 11-26419



NUT, (#8-32) Brass 2

26 10-805564



SCREW, (.250-20 x .750) 1

27 13-26992



LOCKWASHER, (.250) Stainless Steel 2

28 11-94330s



NUT, (.250-20) Brass 2

29 85-97861



INSULATOR, Starter Solenoid 1

30 816492A15



ALARM KIT 1

31 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1
(Bravo)
32 88-79091



FUSE, 20 Ampere 1
(Bravo)
33 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1
(Bravo)
34 864337A1



CONNECTOR, Black, Jumper 1
(Black Wire)
35 84-862262A2



HARNESS ASSEMBLY 1
( Boost Pump )
36 8M6000623



SENSOR, Pressure 1 8818793 ( Power Steering Cooler )
36 881879T11



SENSOR, (0 - 100 PSI), Pressure 1 881879A6 ( Oil )
37 878187



SENSOR ASSEMBLY, Knock 1

38 8M0068784



SENDER ASSEMBLY, Oil 1 87-815425T
38 37293T



SENDER ASSEMBLY, Oil 1
(Dual Station)
39 8M3000055



CAP, Weather Proof (10 Pin Transom Harness) 1 891735
40 84-812733A2



HARNESS ASSEMBLY, Extension (Lube Bottle) 1
