350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Oil Reservoir Bottle And Bracket

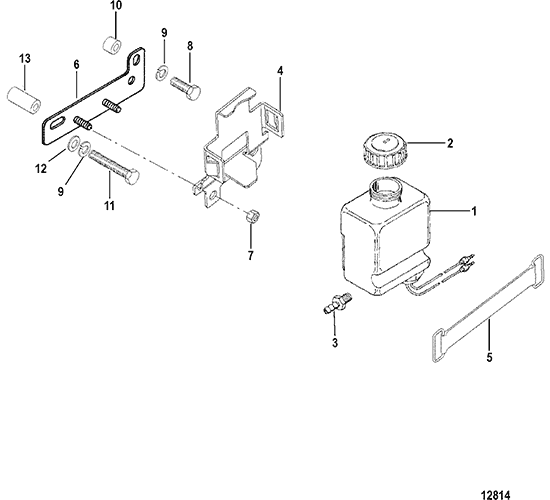

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806193A46         RESERVOIR 1 806193A13
2 36-8067271         CAP, Drive Lube Monitor, Oil Bottle 1 36-808625
3 22-808624         CONNECTOR 1

4 860065A1         BRACKET KIT, Oil Bottle 1

5 808023T         STRAP, Bracket 1

6 805367T         BRACKET 1

7 11-29250         NUT, (.312-24) 2

8 10-37612         SCREW, (.375-16 x 1.250) 1
STANDARD COOLING
9 13-35048     700-21495   LOCKWASHER, (.375) 2
STANDARD COOLING
10 23-91034         SPACER, (.380 x 1.00 x .530) 1
STANDARD COOLING No longer made, limited availability
11 10-26486         SCREW, (.375-16 x 2.375) 1
STANDARD COOLING
12 12-20553     700-21675   WASHER, (.406 x .734 x .063) 1
STANDARD COOLING
13 23-15895         SPACER, (.38 x 1.00 x 1.44) 1
STANDARD COOLING No longer made, limited availability
8 10-34353       525-10-34353 SCREW, (.375-16 x 1.00) 1
CLOSED COOLING
9 13-35048     700-21495   LOCKWASHER, (.375) 2
CLOSED COOLING
10 23-905201         SPACER, (.750 x .250) 1
CLOSED COOLING
11 10-358701         SCREW, (.375-16 x 2.00) 1
CLOSED COOLING
12 12-20553     700-21675   WASHER, (.406 x .734 x .063) 1
CLOSED COOLING
13 23-861360         SPACER, (1.1875) 1 ¬† This Part is No Longer Available¬†CLOSED COOLING
