350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Fuel Filter

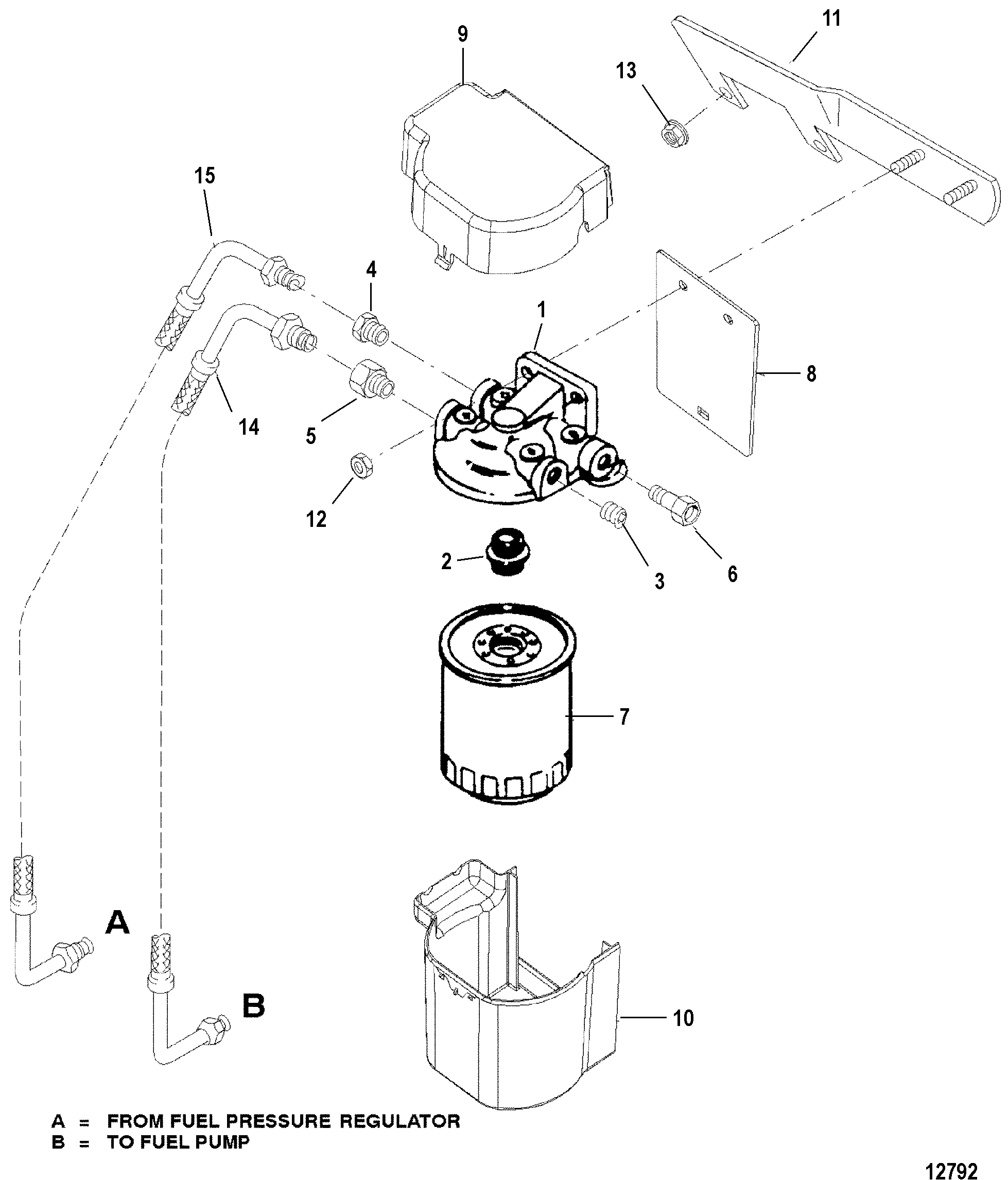

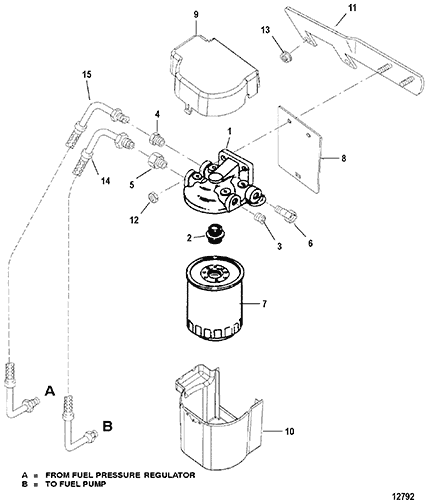

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 89876A3



BASE ASSEMBLY, Fuel Filter/Water Seperator 1
2 22-816133



FITTING 1 22-8161331
3 22-32561



PLUG, Pipe - Allen Head (.250-18) 1
4 22-33821



CONNECTOR 1

5 22-808003



CONNECTOR 1
6 22-807958



FITTING, (1/4-18), Inlet 1
7 35-802893Q01



FILTER, Fuel/Water Separator 1 35-807172
8 807956T



INSULATOR, Back 1
9 807806T



INSULATOR, Cap 1   ┬áThis Part is NLA from Mercruiser
10 807807T



INSULATOR, Base 1   ┬áThis Part is NLA from Mercruiser
11 807918T



BRACKET, Fuel Filter Base 1
12 11-826709111

700-21190
NUT, (.312-24) 2 11-45592
13 11-860069



NUT, (.375-16) 2
14 32-807953



LINE ASSEMBLY, Fuel, Fuel Pump to Filter Base 1 32-807953T
15 32-8M0045997



HOSE ASSEMBLY, Fuel Regulator to Filter Base 1 32-807954T
