350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Exhaust System

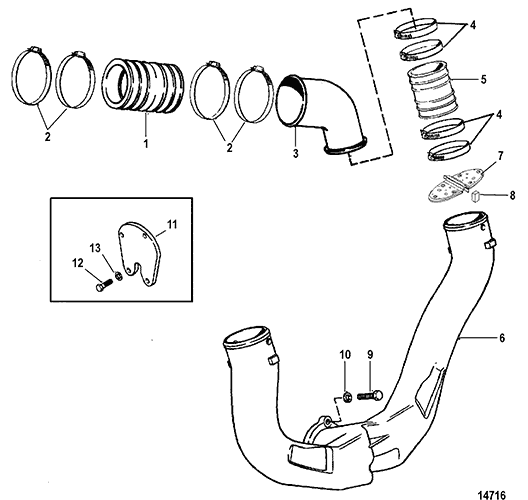

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-44348001         TUBE 2 32-44348T (STANDARD)
1 32-4865910         TUBE, Exhaust (12.00 Inches) 2 ¬† This Part is No Longer Available¬†(BLACKTRAC)
2 54-815504272         CLAMP, Worm Gear 8

3 11086T         ELBOW (PORT) 1
W/O RISERS
3 14343T         ELBOW (STARBOARD) 1
W/O RISERS
3 14801A1         ELBOW KIT 1
(USE WITH 3 IN. AND 6 IN. RISERS KITS)
4 54-815504272         CLAMP, Worm Gear 8

5 32-14358001         TUBE 2 32-14358T
6 807130A4         PIPE 1

7 807166A1         SHUTTER ASSEMBLY, Water 2

8 25-807167         GROMMET 4

9 10-58640         SCREW, (.375-16 x 1.25) 4

10 13-41471         LOCKWASHER, (.375) 4

NS 19-8079923         COVER, Hose Clamp End AR
3
11 861776A2         PLATE 1 97350T1 THRU TRANSOM
12 10-98794 602-98-102-35 676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4
THRU TRANSOM
13 13-41471         LOCKWASHER, (.375) 4
THRU TRANSOM
