454 Mag Bravo (Gen 5) GM V-8 1996-1997 - Serial 0F801700 Thru 0K999999 - Cylinder Head And Rocker Cover (7.4L Bravo)

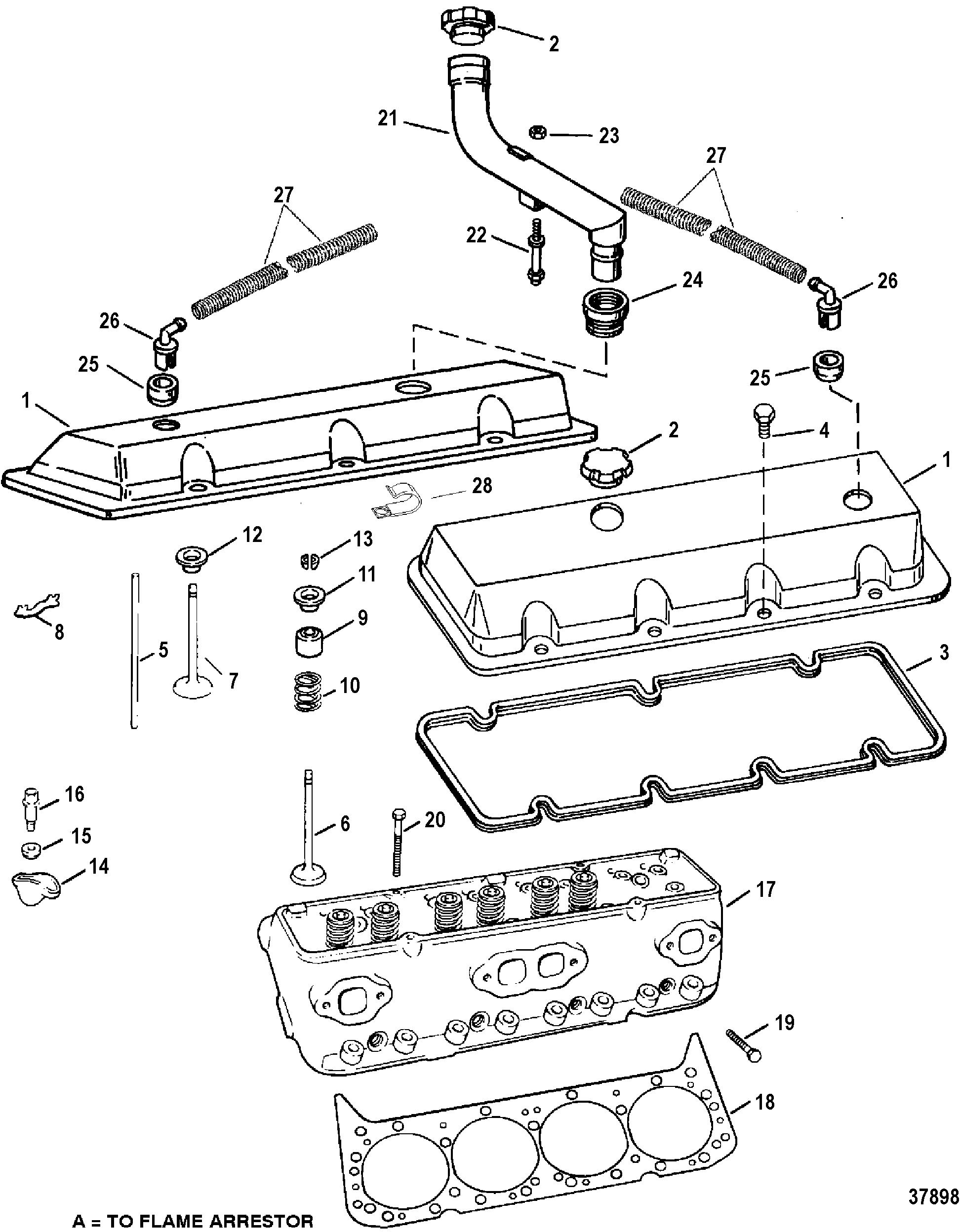

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Description Num Req. Superceded From Special Notes
1 850462


COVER, Rocker 2

2 36-811569


CAP, Oil Tank 2

3 27-811588
676-9-61315
GASKET, Rocker Cover 2
1
4 10-811589


BOLT, (1/4-20 x 0.875) (1/4-20 x 7/8 in.) 14
5 850468


PUSH ROD 8
This Part is NLA from Mercruiser. (INTAKE)
5 850469


PUSH ROD 8   This Part is NLA from Mercruiser. (EXHAUST)
6 814506


VALVE, Exhaust 8   (STANDARD)
6 814507001


VALVE, Exhaust AR 814507 (.015 O.S.)
7 49134


VALVE, Intake 8   (STANDARD)
8 811585


GUIDE, Push Rod 8   This Part is NLA from Mercruiser.
9 26-811545
676-9-61651
SEAL, Valve 16
1
10 24-850465T


SPRING, Valve 16 24-850465
11 850463


ROTATOR 8
(EXHAUST)
12 850464


CAP 8
(INTAKE)
13 28-54530


KEY 32

14 850471


ARM, Rocker 16

15 850472


BALL, Rocker Arm 16

16 10-811593


BOLT, Rocker Arm 16

17 938-883492R1


CYLINDER HEAD, Cylinder 2  938-827656
18 879150141


GASKET, Cylinder Head 2 27-850470 1
19 10-8M0000463


BOLT, (2.00 Inch) 8 10-49106
20 10-8M0000482


BOLT, (4.125 Inch) 24 10-49105
21 36-807131T


TUBE, Oil Fill 1   This Part is NLA from Mercruiser.
22 16-805706


STUD 1

23 11-826709109


NUT, (.250-28) 1 11-35045
24 26-805622


GROMMET 1

25 25-811553


GROMMET 2

26 97850T


ELBOW, 90 Degree, Breather 2  97850
27 32-1589424


HOSE, Breather 2  32-1589418
28 54-642351


J CLIP 2

- 27-850470A96


GASKET SET, Overhaul 1
(7.4L BRAVO)
