454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Thermostat Housing (Standard Cooling)

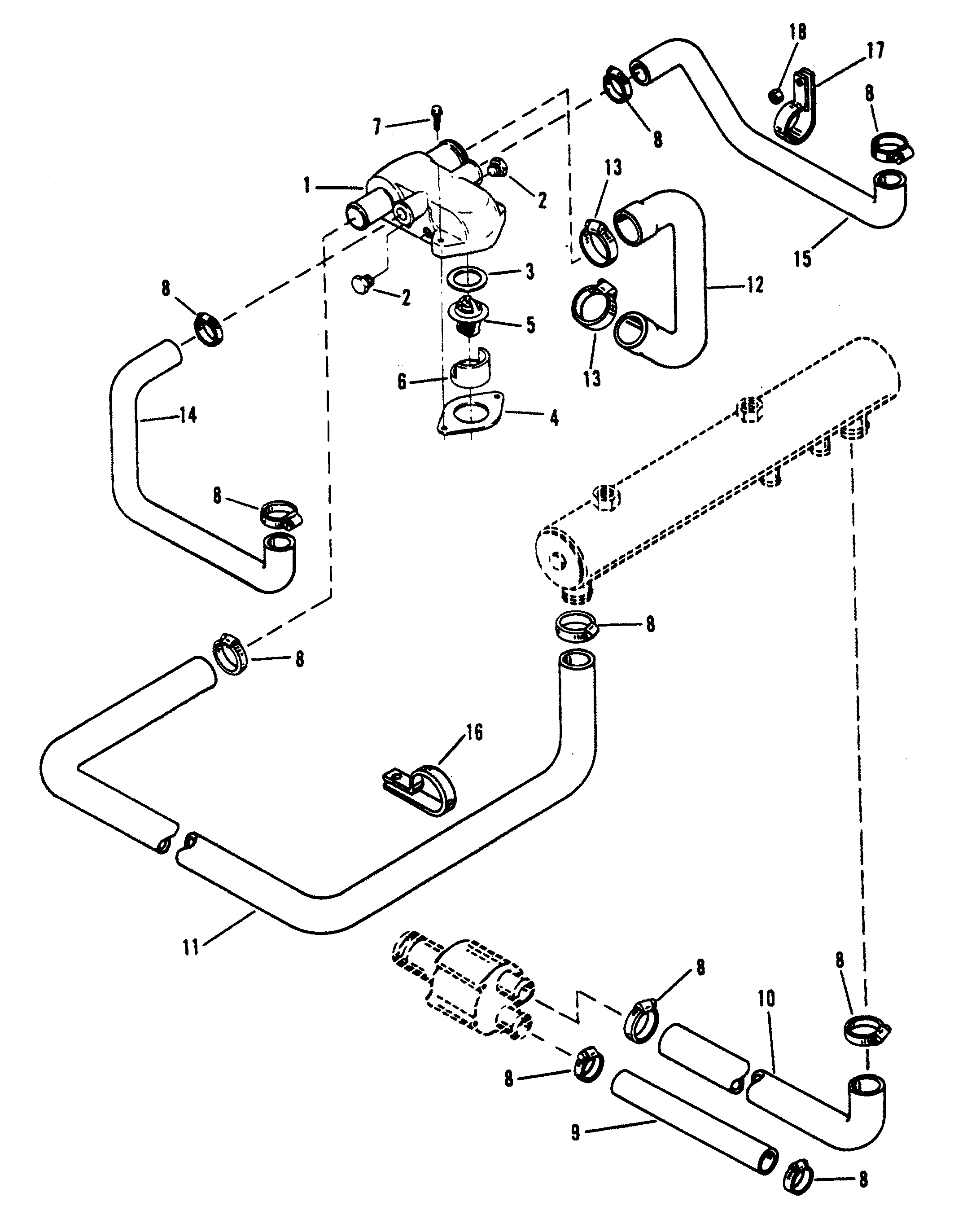

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806235A1 | THERMOSTAT HOUSING ASSEMBLY | 1 | ||||||
| 2 | 22-32803 | 700-21894 | PIPE PLUG | 2 | |||||
| 3 | 27-806871 | GASKET | 1 | 1 | |||||
| 4 | 27-530451 | GASKET | 1 | 1 | |||||
| 5 | 807252T2 | THERMOSTAT | 1 | 8052732 | |||||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-98794 | 602-98-102-35 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW | 2 | ||
| 8 | 54-815504220 | CLAMP | AR | ||||||
| 9 | 32-865672079 | HOSE-SEA PUMP TO DRIVE UNIT | 1 | 32-1743579 | |||||
| 10 | 32-821418 | HOSE-OIL COOLER TO SEA PUMP | 1 | ||||||
| 11 | 32-160111 | HOSE-OIL COOLER TO THERMOSTAT HOUSING | 1 | ||||||
| 12 | 32-897183 | HOSE-THERMOSTAT HOUSING TO WATER PUMP | 1 | ||||||
| 13 | 54-815504232 | CLAMP | 2 | ||||||
| 14 | 32-897491 | HOSE-THERMOSTAT HOUSING (PORT) | 1 | ||||||
| 15 | 32-807201 | HOSE-THERMOSTAT HOUSING (STARBOARD) | 1 | ||||||
| 16 | 54-47715 | CLIP | 1 | ||||||
| 17 | 54-806616 | CLAMP | 1 | ||||||
| 18 | 11-22024 | NUT | 1 |
