454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Electrical Box And Components

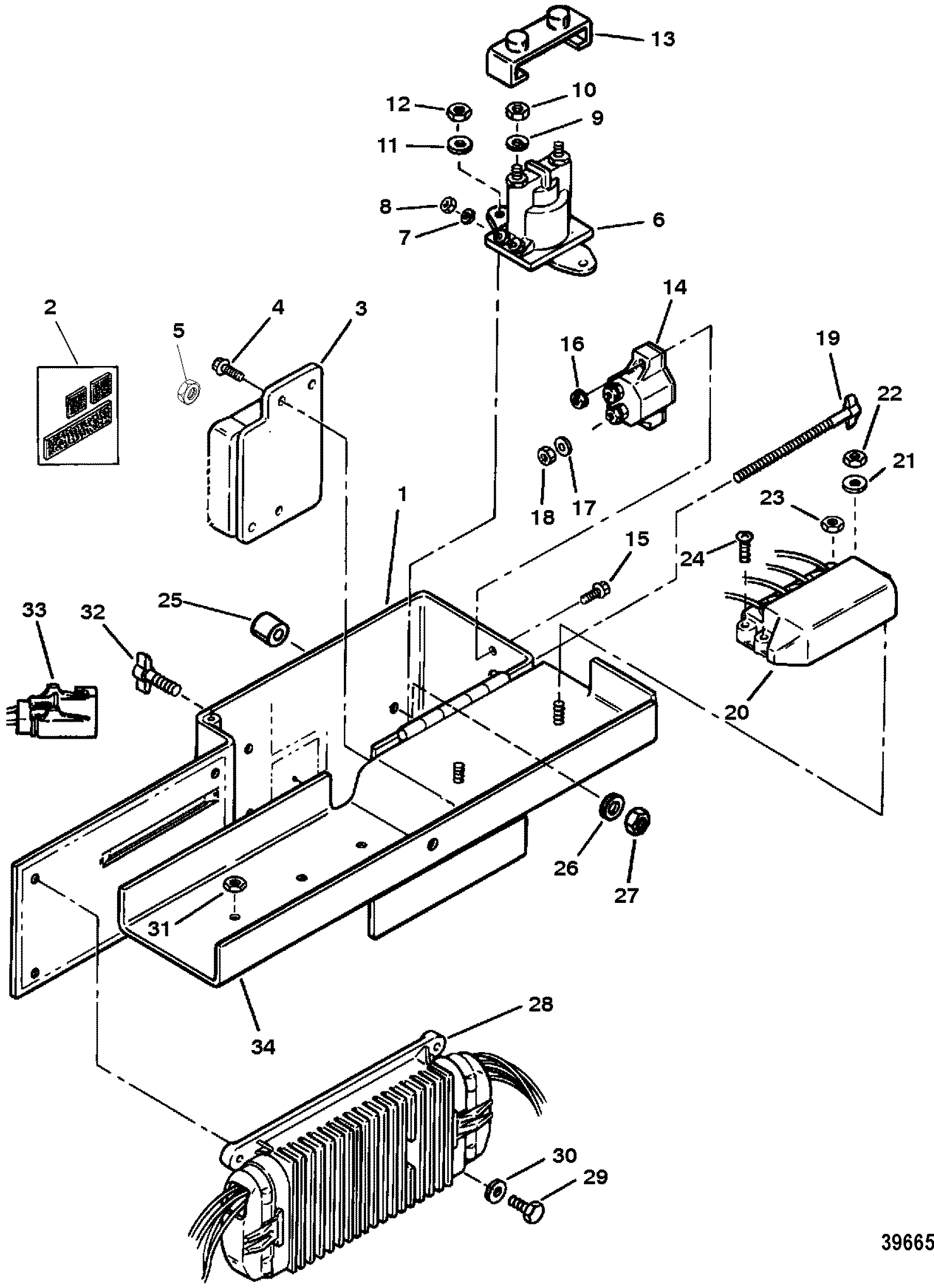

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805439T



BOX, Electrical 1   This Part is No Longer Available (USE WITH REF. #32)
1 807323A5



BOX ASSEMBLY, Electrical Components 1
(USE WITH LOCKING CLIP)
2 806762A1



VELCRO KIT 1

3 805443



MODULE ASSEMBLY 1 805443T This Part is No Longer Available
4 10-73286



SCREW, (.250-20 x .500) Stainless Steel OPT
6
5 11-64015



NUT, (.250-20) OPT
6
6 89-96054T



SOLENOID ASSEMBLY, Starter 1 89-96054
7 13-26995



LOCKWASHER, (#8) Stainless Steel 2

8 11-26419



NUT, (#8-32) Brass 2

9 13-26992



LOCKWASHER, (.250) Stainless Steel 2

10 11-94330



NUT, (.250-20) Brass 2

11 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 2

12 11-64015



NUT, (.250-20) 2

13 85-97861



INSULATOR 1

14 88-11178A01



BREAKER, Circuit - 50 Ampere 1 88-11178 This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work.
15 10-45862



SCREW, (#10-32 x .875) 2

16 11-61356



NUT, (#10-32) Reduced Hex 2

17 13-26996



LOCKWASHER, (#10) Stainless Steel 2

18 11-68219



NUT, (#10-32) Stainless Steel 2

19 805615A2



THUMB SCREW ASSEMBLY 1   This Part is No Longer Available
20 42600A09



CONTROLLER ASSEMBLY 1 42600A3
21 12-56681



WASHER, (.203 x .500 x .032) 2

22 11-805562



NUT, (#10-24) 2

23 11-68219



NUT, (#10-32) Stainless Steel 4

24 10-62568



SCREW, (#10-16 x .375) 1

25 23-92152T



SPACER, (.27 x .75 x .38) 3 23-92152
26 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3

27 11-64015



NUT, (.250-20) 3

28 806719T4



ECM, Engine Control Module 1
(454 MAGNUM) USE WITH 5/8 IN. SCREW
28 806709T6



ECM, Engine Control Module 1
(502 MAGNUM) USE WITH 5/8 IN. SCREW
29 10-54615



SCREW, (.250-20 x .625) 4
USE WITH 5/8 IN. SCREW
28 806719T6



ECM, Engine Control Module 1
(454 MAGNUM) USE WITH 1-1/4 IN. SCREW 2
28 806709T8



ECM, Engine Control Module 1
(502 MAGNUM) USE WITH 1-1/4 IN. SCREW 2
29 10-76596



SCREW, (.250-20 x 1.250) 4
USE WITH 1-1/4 IN. SCREW
30 12-20533



WASHER 4

31 11-805562



NUT, (#10-24) 3

32 805615A1



THUMB SCREW ASSEMBLY 1   This Part is No Longer Available (OLD DESIGN)
33 88-804642



FUSE, 15 Ampere 1 805704 No longer made, limited availability
33 88-804641



FUSE, 10 Ampere 1 805703
34 805439T1



COVER, Electrical 1   This Part is No Longer Available (USE WITH THUMB SCREW REF. #32)
34 805439T3



LID, Electrical Box 1
(USE WITH LOCKING CLIP)
