454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Distributor And Ignition Components

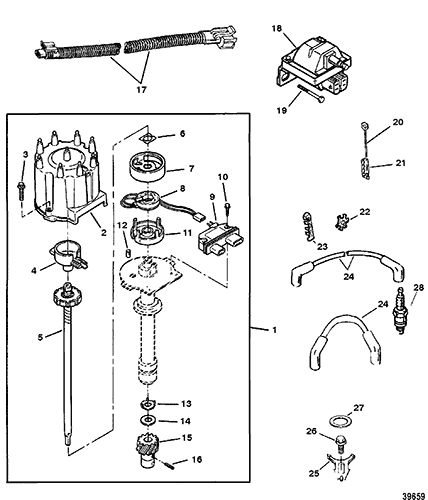

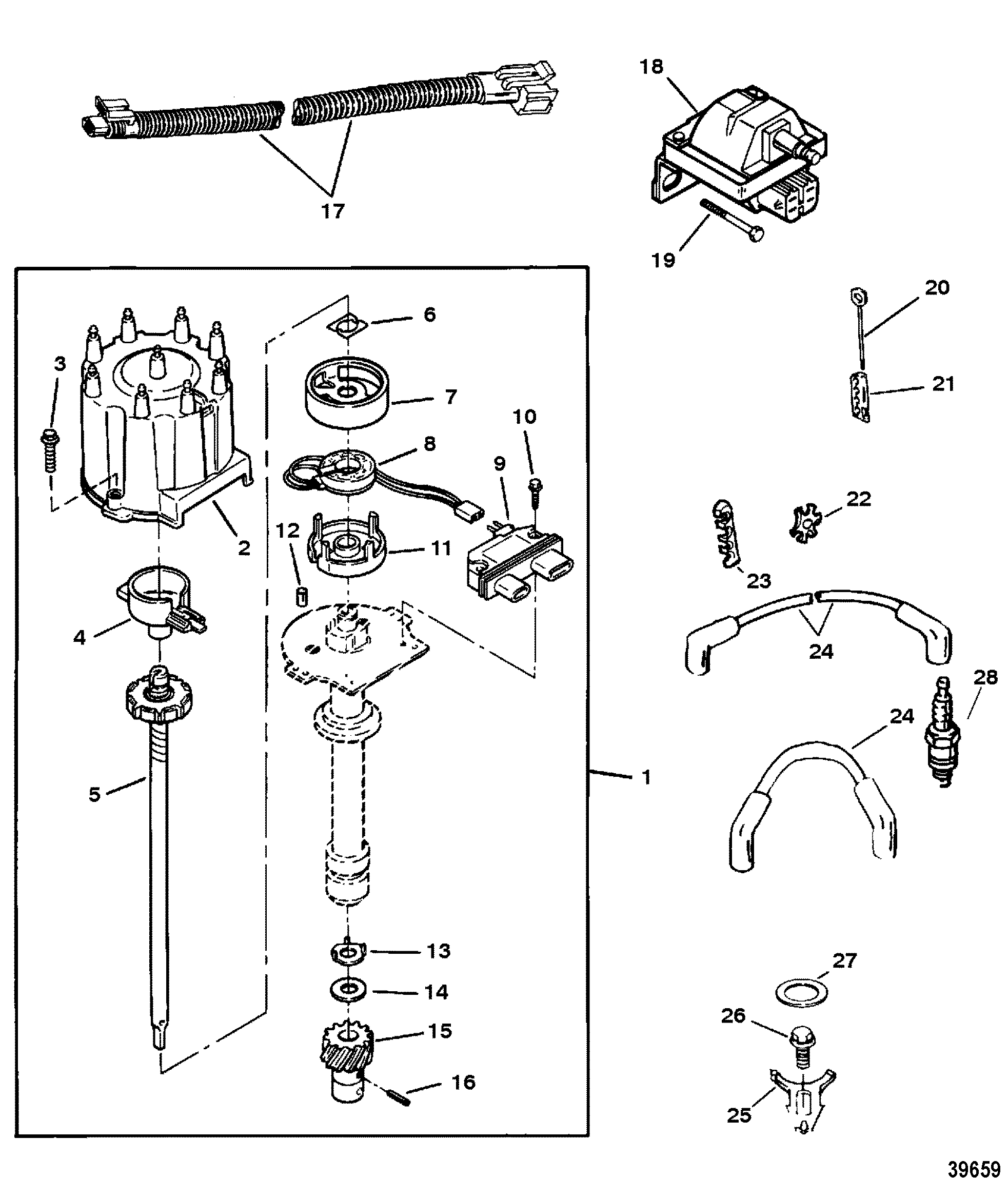

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805222A1



DISTRIBUTOR ASSEMBLY 1

2 808483T3



CAP 1 808483
3 10-808491



SCREW 2   This Part is No Longer Available
4 8M6001253



ROTOR 1 808484
5 808485T



SHAFT ASSEMBLY, Main 1 808485 This Part is No Longer Available
6 808487



RETAINER 1   This Part is No Longer Available
7 808486



SHIELD 1   This Part is No Longer Available
8 811639T



COIL 1 811639
9 811637001



MODULE 1 811637
10 10-811638



SCREW 2   This Part is No Longer Available
11 811641



POLE PIECE 1

12 17-808488



PIN 1   This Part is No Longer Available
13 12-46350



WASHER 1   This Part is No Longer Available
14 12-808489



WASHER 1

15 43-808490



GEAR 1

16 17-34109



PIN 1   This Part is No Longer Available
17 84-817376T01



HARNESS ASSEMBLY, Distributor Module to Ignition Coil 1 84-817376T
18 898253T27



COIL, Ignition 1 817378T
19 10-805189



SCREW, (.375-16 x .750) 2

20 16-90096A1



STUD ASSEMBLY, (#10-32 x Special) 2

21 54-72821



RETAINER 2

22 54676



RETAINER, Two Wire 2

23 32783



RETAINER, Three Wire 2

24 84-816608Q68



CABLE KIT, Ignition 1 84-816608A68
25 52185



CLAMP 1

26 10-805559



SCREW, (.375-16 x .875) Stainless Steel 1

27 27-344863



GASKET 1
3,4
28 33-898264001



SPARK PLUG 8 33-59571
- 27-811572A94



GASKET SET, Overhaul 1
(454 MAGNUM)
- 27-805396A92



GASKET SET, Overhaul 1
(502 MAGNUM)
