502 Mag MPI (Gen 6) GM V-8 1996 - Serial 0F802600 Thru 0K999999 - Sea Water Pump (Fuel Cooled System) (0K147350 and Up)

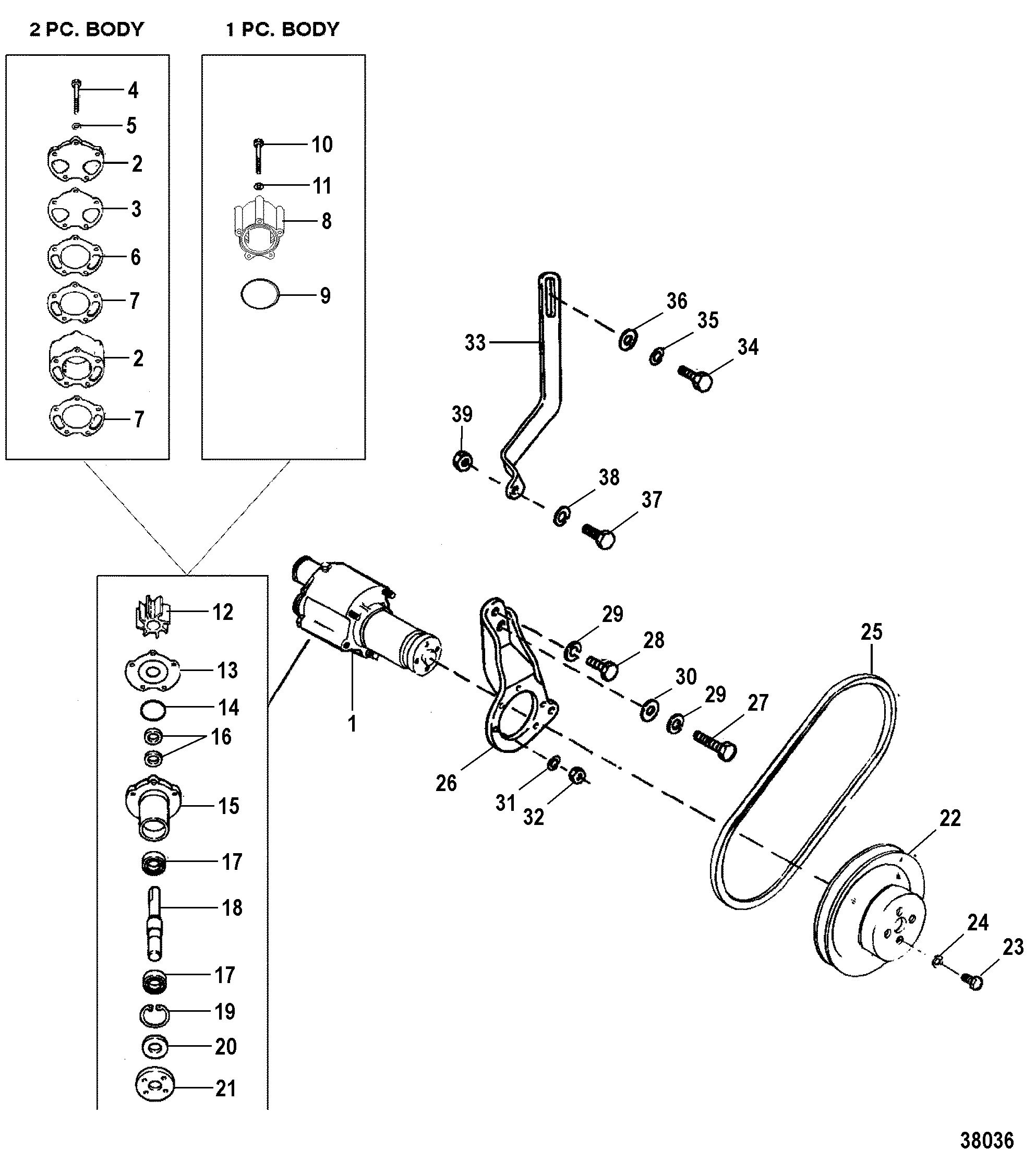

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 46-807151A12



PUMP ASSEMBLY, Seawater 1
2 46-807151A14



BODY AND COVER 1 46-807151A7  TWO PIECE BODY
3 27-8052151



GASKET 1    TWO PIECE BODY
4 10-73275



SCREW, (.312-18 x 2.88) 2
TWO PIECE BODY
4 10-99347



SCREW, (.312-18 x 3.75) 3    TWO PIECE BODY
5 12-20084



WASHER, (.328 x .562 x .062) 5    TWO PIECE BODY
6 94916



WEAR PLATE, Wear (Outer) 1    TWO PIECE BODY
7 27-94914

700-32730
GASKET 2    TWO PIECE BODY
8 46-807151A14



BODY AND COVER, Water Pump 1 46-807151A7  ONE PIECE BODY
9 25-33465



QUAD RING 1 25-807149  ONE PIECE BODY
10 10-807356



SCREW, (.312-18 x 2.680) 2    ONE PIECE BODY
10 10-74822



SCREW, (.312-18 x 3.500) 3    ONE PIECE BODY
11 12-814806

700-21662
WASHER, (.344 x .688 x .065) Stainless Steel 5    ONE PIECE BODY
12 47-59362T1 625-4011 676-9-45375 700-89740
IMPELLER 1 47-593621
13 94576



WEAR PLATE, Wear (Inner) 1
14 25-94288



QUAD RING 1
15 46-94913A2



HOUSING ASSEMBLY, Water Pump 1
16 26-90562
676-9-76107 700-85080
SEAL, (1.254 x .312), Oil 2
17 30-72961



BEARING, Ball 2
18 59501A1



SHAFT 1
19 53-23720



RING, Retaining, Snap 1
20 26-72785



SEAL, Oil 1
21 47530



HUB 1
22 52822T



PULLEY 1
23 10-47277



SCREW, (.312-24 x .750) 4
24 13-39107

700-21496
LOCKWASHER, (.312-24) 4
25 57-13457Q



BELT 1 57-13457T
26 15295T



BRACKET 1
27 10-47461



SCREW, (.437-14 x 1.00) 1
28 10-17965



SCREW, (.437-14 x .70) 1
29 13-32993



LOCKWASHER, (.437) 2
30 12-27025



WASHER 1
31 13-39107

700-21496
LOCKWASHER, (.312-24) 3
32 11-21908



NUT, (.312-18) Cad Plated 3
33 15751T



BRACE 1
34 10-47461



SCREW, (.437-14 x 1.00) 1
35 13-32993



LOCKWASHER, (.437) 1
36 12-74758



WASHER 1 12-30315
37 10-35786



SCREW, (.375-24 x 1.00) 1
38 13-35048



LOCKWASHER, (.375) 1
39 11-46335



NUT, (.375-24) 1
